Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Screw Design: | Single Screw | Voltage: | 380V 50HZ |
| Certificate: | CE Certificate | Warranty Time: | 1 Year |
| Raw Material: | PP PE Granules | Port Of Lading: | Qingdao Port |
| Automatic Grade: | Fully Automatic | Inverter Brand: | ABB |
| High Light: | Multi Layer Plastic Pipe Making Machine,PE HDPE Pipe Equipment,Single Layer HDPE Pipe Equipment |
||
High Output PE HDPE Pipe Equipment , Muilty / Single Layer Plastic PE Pipe Making Machine
Brief introduction:
1.Production process:
Vacuum feeder---Extruder---Mold---Water tank---Haul off unit---Cutter---Stacker
2.The extrusion line is equipped with two extruders, multi-layers co-extrusion, stable extruded materials and excellent
plasticization.
3. The imported proportional control valve regulates the forming air pressure, which is stable and reliable.
Description pe pipe making machine:
The complete extrusion consists of following items:

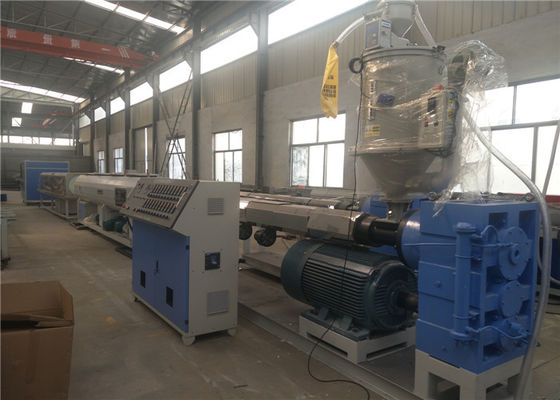

l. Single screw extruder
2.Co- extruder: to manufacture marking multi-layers of pipe

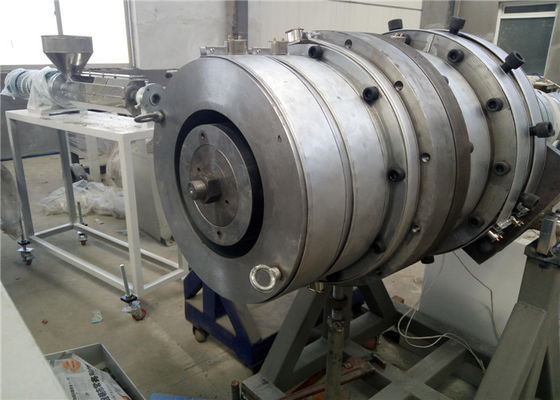

3. Die head

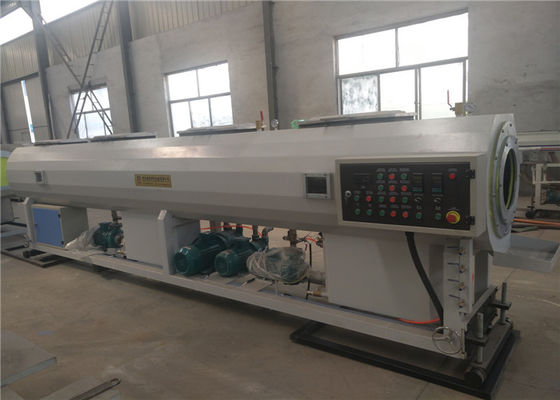

4. Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers
5. Cooling tank: due to diameter, the numbers of cooling tanks can be one or two
6. Haul-offs: due to diameter, it can be designing of double or three caterpillars
7.Cutter: no scraps cutter.

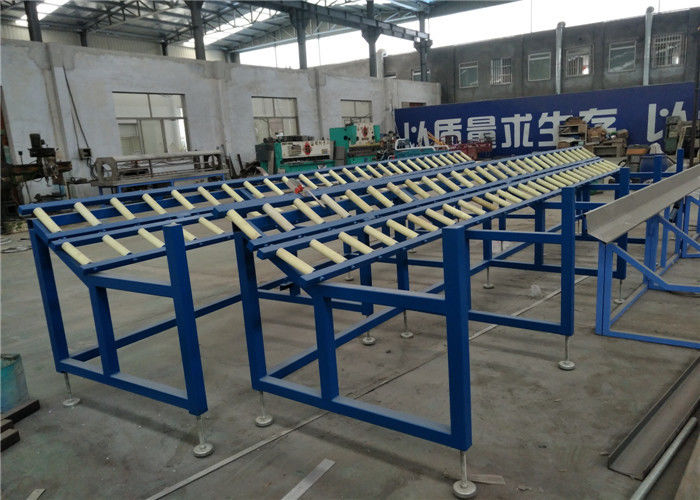

8. stacker
This pe pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Technical parameters:
| Extruder Model | Pipe Diameter Range(mm) | Capacity(kg) | Total Power(KW) |
| SJ65/33 | 20-63 | 120 | 80 |
| SJ65/33 | 20-110 | 180 | 140 |
| SJ65/33 | 50-160 | 330 | 180 |
Main Features PE/HDPE Pipe Production Line
*PLC control, high automation;
*Adopting specialized screw with good plasticizing effect.
*Vacuum calibration, constant temperature control, eliminating pipe stress;
*Adopting co-extrusion head to add color line;
*High extrusion capacity, low and equal temperature of melt.
*Wide processing range of raw materials.
Machine display:
