Plastic HDPE Sewage Tube Making Machine Single Screw Extruder PE PP Duct Production Line

Plastic HDPE Sewage Tube Making Machine Single Screw Extruder PE PP Duct Production Line

Brand Name:	AORUI
Model Number:	SJ75/33 SJ90/33 SJ120/33
MOQ:	1 set
Price:	USD
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Condition:

New

Automatic Grade:

Fully Automatic

Screw Design:

Single Screw

Plastic Processed:

PP PE Resin

Warranty Time:

1 Year

Place Of Original:

China

Voltage:

380V 50HZ

Brand Name:

AORUI

Certificate:

CE Certificate

Port Of Lading:

QINGDAO PORT

Packaging Details:

Regular package

Supply Ability:

10 SETS PER MONTH

Highlight:

PE PP Duct Production Line

HDPE Sewage Tube Making Machine

Single Screw Extruder Pipe Making Machine

Product Description

HDPE Sewage Tube Plastic Making Machine , Single Screw Extruder PE PP Duct Production Line

Quick details of pe pipe equipment:

1.PE PPR PPRT pipe extrusion line consists of conical Single-screw extruder, Extrusion die mould, Vacuum forming calibrator, Spraying machine, Haul-off machine, Cutting machine, Stacker and other components, with good stability and high capacity, easy to operate, reliable. The production line can produce water supply and drainage pipe, widely used to hot water supply,gas transportation,and so on. Full automatic control by SIMENS PLC computer.

2.1.Motor brand: Siemens

2.2. Inverter: ABB/Delta

2.3.Contactor: Siemens

2.4. Heating method: Ceramic or cast aluminum

2.5.Screw and barrel: 38CrMoAlA.

2.6.Extruder model: SJ45/SJ55/SJ65/SJ75/SJ90/SJ100/SJ120/ SJ150

Description pe pipe making machine:

1. The extrusion line is equipped with two extruders, multi-layers co-extrusion, stable extruded materials and excellent
plasticization.

2. The imported proportional control valve regulates the forming air pressure, which is stable and reliable.

3.Double channel spiral composite extrusion die, and the die surface is nitrided and polished.

4. Double layer wall thickness adjusting device.

5. The pipe is online double-layer socket flared.

6. The horizontal, horizontal and vertical directions of the workbench are three-dimensional adjustable.

7. When the workbench is powered off, it will automatically exit the protection system.

8. The module is made of special aluminum alloy, which has the characteristics of light weight, high strength, good wear
resistance and small coefficient of thermal expansion.

9. The molding module is air-cooled and water-cooled, with good coolingeffect and fast molding speed.

10. The whole production line adopts PLC microcomputer control system to visually display melt temperature, pressure, forming speed, fault alarm, etc.

11. High efficiency single screw extruder (using pellets) and energy-saving twin screw extruder (using powder or pellets) are available.

Technical parameters:

Extruder Model	Pipe Diameter Range(mm)	Capacity(kg)	Total Power(KW)
SJ65/33	20-63	120	80
SJ65/33	20-110	180	140
SJ65/33	50-160	330	180

Application:

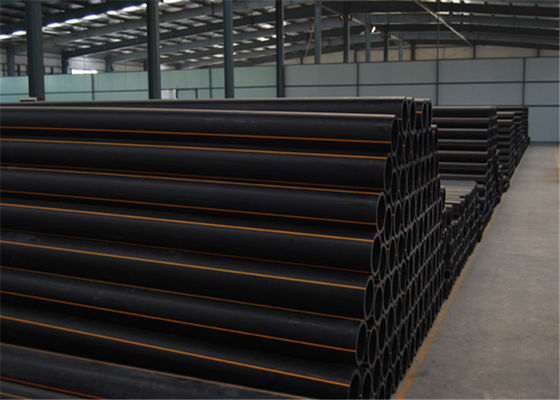

PE water supply pipe and gas pipe extrusion machine can produce either PE water supply pipe or Gas pipe. It means that both PE water supply pipe and PE gas pipe can be produced under the same extrusion machine.

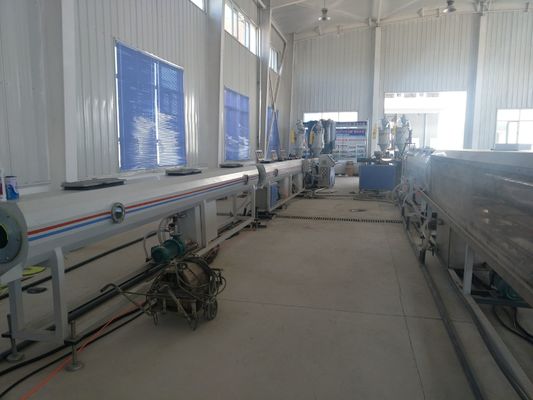

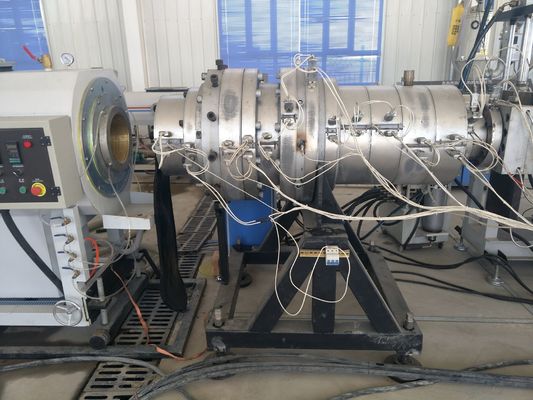

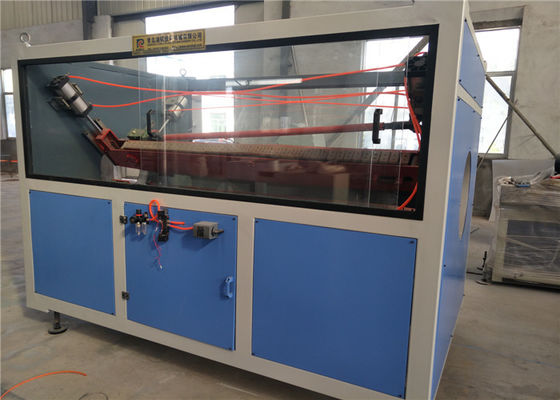

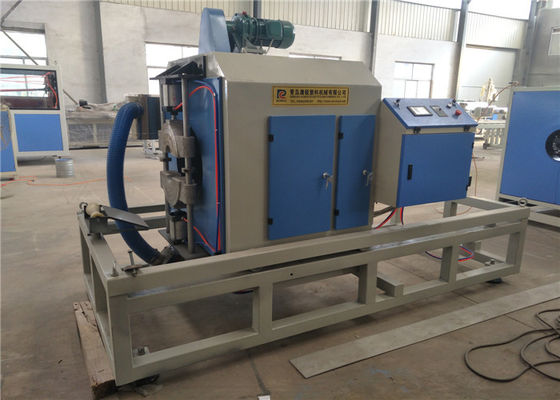

Machine display:
Plastic HDPE Sewage Tube Making Machine Single Screw Extruder PE PP Duct Production Line 0
