Automatic Plastic Pipe Extrusion Line PVC Electrical Pipe Extrusion Machine

Automatic Plastic Pipe Extrusion Line PVC Electrical Pipe Extrusion Machine

Brand Name:	AORUI
Model Number:	SJSZ51X105 SJSZ65X132 SJSZ80X156
MOQ:	1 set
Price:	USD
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Condition:

New

Automatic Grade:

Fully Automatic

Warranty Time:

1 Year

Certificate:

CE Certificate

Place Of Original:

China

Voltage:

380V 50HZ

Motor Brand:

Siemens

Brand Name:

AORUI

Temperature Controller:

Omron

Raw Material:

PVC Resin

Packaging Details:

Regular package

Supply Ability:

10 SETS PER MONTH

Highlight:

PVC Resin Plastic Pipe Extrusion Line

380V 50HZ Electrical Pipe Extrusion Machine

Automatic Plastic Pipe Double Screw Extruder

Product Description

Plastic PVC Pipe Production Line , PVC Pipe Making Machine , PVC Electrical Pipe Extrusion Machine

Quick details:

1, The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.
2, Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.
3, Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.

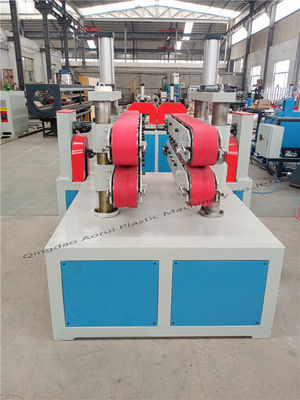

4, Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

Description PVC pipe extrusion machine:

This line is designed to produce PVC suction hose. It consists two extruders, forming unit, cooling tank.

The wall of which is soft PVC and rigid PVC helix as reinforced, featuring extrusion resistance, corrosion resistance, negative pressure resistance, and anti-bending, good negotiability, so it is suitable to convey gas, liquid and power, widely used in industry, agriculture, construction and irrigation, etc.

Technical Specifications:

Model	Pipe Diameter	Extruder	Output(kgs/h)	Total Power(KW)
PVC-63	Φ20-50	SJ51/105	130	50
PVC-160	Φ75-160	SJ65/132	220	85
PVC-250	Φ75-250	SJ65/132	220	95
PVC-315	Φ200-315	SJ80/156	350	150
PVC-450	Φ200-450	SJ80/156	380	180
PVC-630	Φ315-630	SJ92/188	750	230

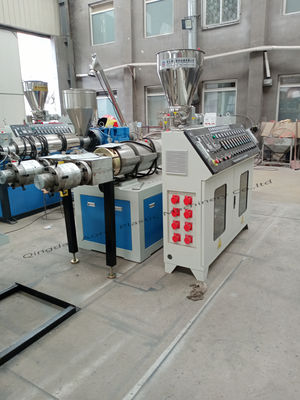

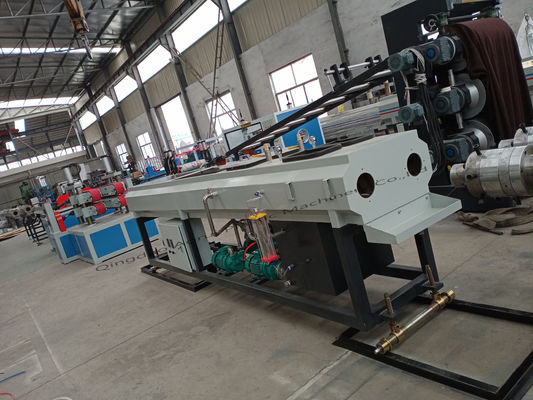

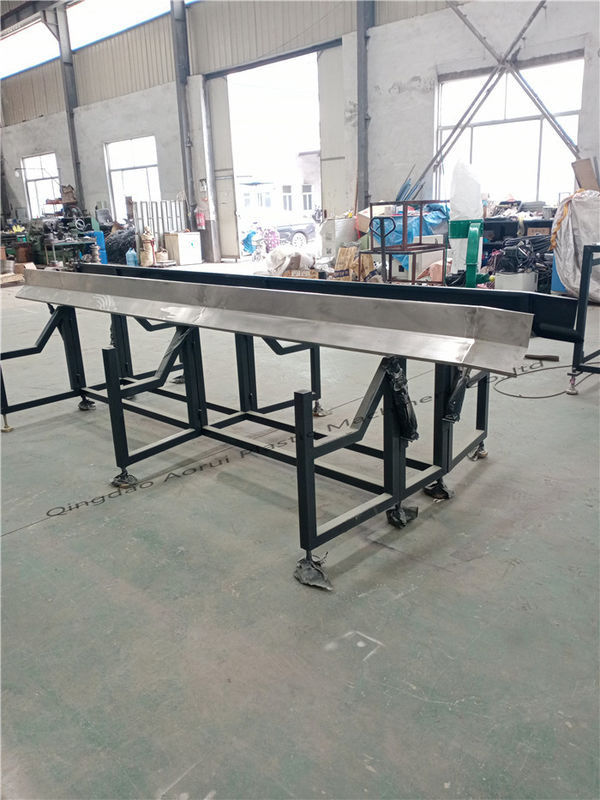

Machine display:

Automatic Plastic Pipe Extrusion Line PVC Electrical Pipe Extrusion Machine 0
