Product Details:
|
| Brand Name: | Aorui | Place Of Original: | China |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Condition: | New |
| Certificate: | CE Certificate | Machine Model: | SJSZ65X132 |
| Plastic Processed: | PVC Resin | Motor Brand: | Siemens |
| Pipe Diameter: | 20mm To 90mm | Voltage: | 380V 50HZ |
| High Light: | 20mm PVC Pipe Production Line,CE Double Output Pipe Extrusion Machine,Conical Plastic Pipe Extrusion Line |
||
20mm to 90mm PVC Pipe Production Line , PVC Double Output Pipe Extrusion Machine With CE Certificate
Quick details:
1.PVC Double Pipe Extruding Machine is mainly used to produce PVC water pipe and electric conduit pipe; it is of high quality and reasonable design.
2.PVC Double Pipe Extruding Machine include these parts as below:
1)SJSZ65X132 Conical twin screw extruder
2)Double outlet mould
3)Vacuum calibration water tank
4)Two cateroillars hauling machine
5)Pipe cutting machine
6)Stacker
Description PVC double pipe extrusion machine:
1.Full automatic pvc pipe quipment using process:
Customer need to mix the raw material(PVC powder, Caco3, Ti2 and so on additives ) into Extruder,after plastify in extruder, material went into mould, the mould and vacuum tank form the material into pipes, after cooling tank, haul-off and cutter, the pipes are produced well on staker.
2.We are very professional in producing the PVC pipe production line. We have stock in our factory, you can come to visit at any time.
3.PVC Plastic Pipe Extrusion Extruder Machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.
Technical Specifications:
|
Extruder Model
|
Pipe Diameter
(mm)
|
Production Capacity
(kg/h)
|
Production Speed (m/min)
|
Total Power
(kw/h)
|
|
SJSZ51/105
|
16~63
|
120
|
15
|
45
|
|
SJSZ55/110
|
50~160
|
180
|
5
|
55
|
|
SJSZ65/132
|
75~250
|
250
|
4
|
75
|
|
SJSZ80/156
|
110~315
|
450
|
2
|
105
|
|
SJSZ92/188
|
315~630
|
600
|
1
|
205
|
PVC Double Pipe Extruding Machine/Pipe Producing MachineCharacteristic:
1. Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
2. Diameter: AORUI machinery succeed in designing and producing the biggest conical twin-screw extruder in the world. Max production diameter reach 800mm.
3. Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.

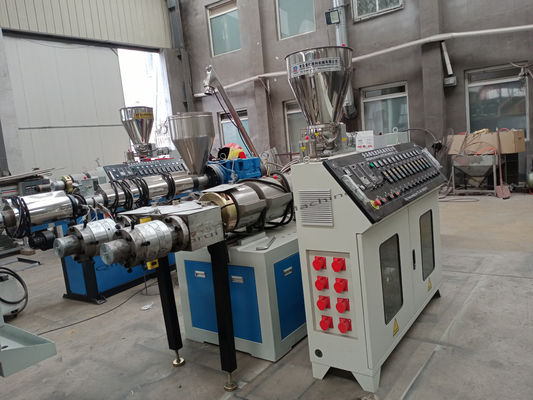

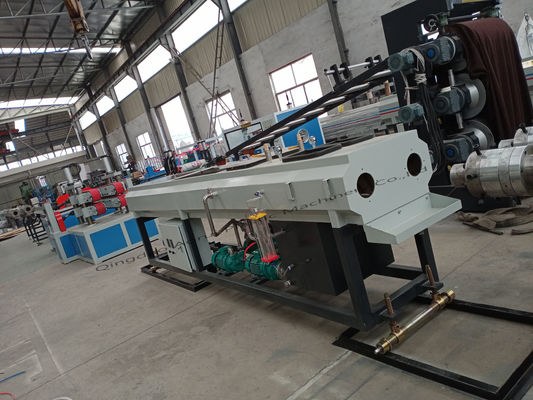

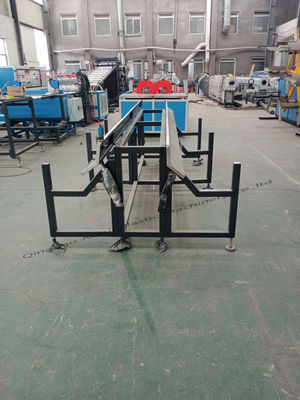

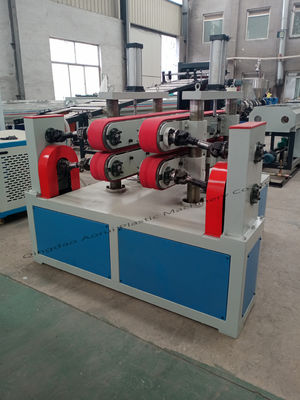

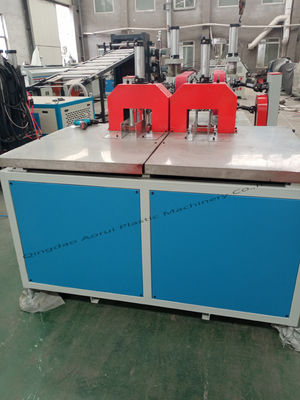

Machine display:
