Product Details:
|
| Brand Name: | AORUI | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Plastic Processed: | PVC |
| Warranty Time: | 1 Year | Screw Design: | Double Screw |
| Place Of Original: | China | Screw Material: | 38Cr Moaia |
| Certificate: | CE Certificate | Inverter Brand: | ABB |
| High Light: | Dual Pipe Output Making Machine,PVC Pipe Twin Screw Extruder,38Cr Moaia Screw Pipe Extrusion Machine |
||
PVC Double Pipe Extrusion Line , PVC Dual Pipe Output Making Machine , PVC Twin Screw Extruder
Quick details:
1.PVC Pipe Diameter Range:φ16mm-φ800mm
2.The Vacuum Calibration Tank will be equipped with different quantity and power of water pump and vacuum pump for different pipe diameter
3.For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
4.Caterpillar Haul-off unit with two caterpillar, threecaterpillar, four caterpillar,six caterpillar,eight caterpillar design for different range of pipe diameter haul-off
5.Guillotine cutter&Planetary cutter can be choosed according to different diameter pipe.
6.Equip with special mould and other device,it can produce inner wall sprial pipe and Inner wall hollow pipe and three layer pipe.
7.Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance
Description PVC Double Output Making Machine:
1.PVC double pipe production line is developed for high output of double pipe extrusion together.

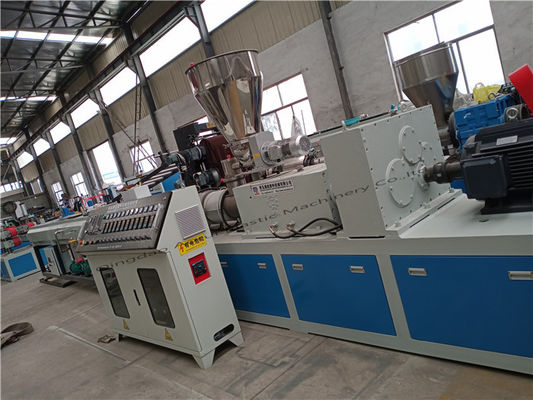

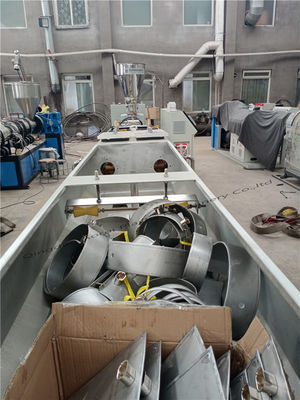

2.The main machine, SJSZ-51/105 ,SJSZ-55/120, SJSZ-65/132conical twin-screw extruder, is equipped with double-tube single-control stainless steel spraying calibration which avoids waste condition when one tube is adjusted and the other one is affected.

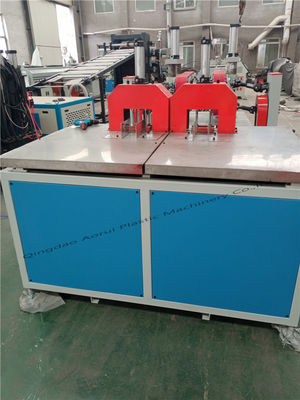

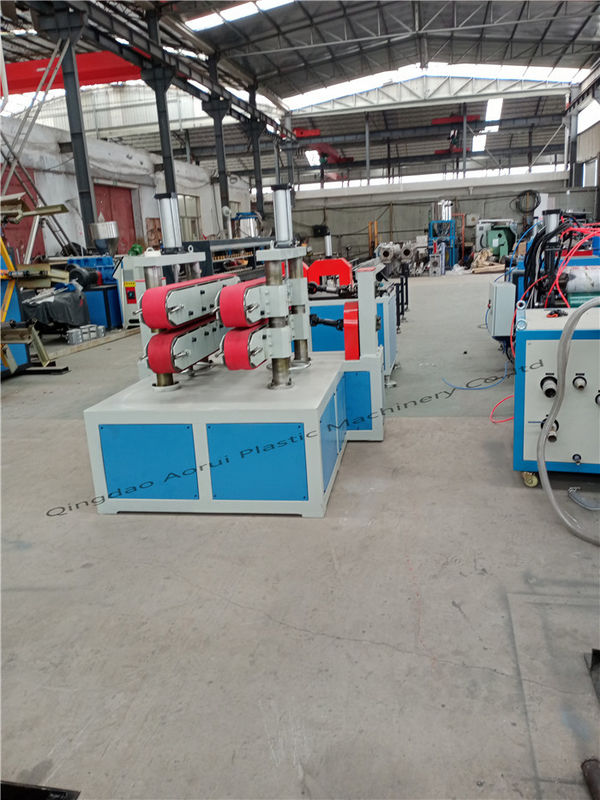

3.The auto single-control double pipe haul-off and cutter unit is combined with the front double calibration technology to make operation more flexible.
4.The machine with energy efficient conical twin-screw extruder and through special mould one-time extrusion two piece of PVC pipe, effective energy conservation, can improve the production and efficiency, save land and labor costs.
5.The diameter of the extruded pipe is from 16-63mm. It can fully use the extruding capacity of the extruder.
So, it is your best choice for high output and efficient for PVC double pipe extrusion/ production line
Technical Specifications:
|
Extruder Model
|
Pipe Diameter
(mm)
|
Production Capacity
(kg/h)
|
Production Speed (m/min)
|
Total Power
(kw/h)
|
|
SJSZ51/105
|
16~63
|
120
|
15
|
45
|
|
SJSZ55/110
|
50~160
|
180
|
5
|
55
|
|
SJSZ65/132
|
75~250
|
250
|
4
|
75
|
|
SJSZ80/156
|
110~315
|
450
|
2
|
105
|
|
SJSZ92/188
|
315~630
|
600
|
1
|
205
|

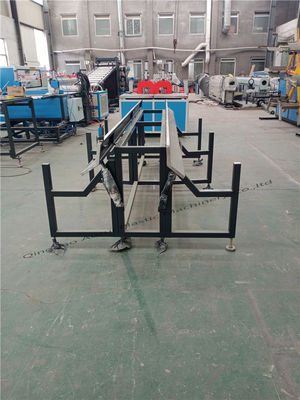

Machine display:
