Product Details:
|
Condition: | New | Screw Design: | Double Screw |
---|---|---|---|
Place Of Original: | China | Port Of Lading: | Qingdao Port |
Plastic Processed: | PVC | Voltage: | 380V 50HZ |
Inverter Brand: | ABB | Motor Brand: | Siemens |
Warranty Time: | 1 Year | Certificate: | CE Certificate |
High Light: | PVC WPC Ceiling Profile Production Line,380V PVC Window Profile Extrusion Line,Door WPC Ceiling Profile Production Line |
A PVC window profile production line is a manufacturing system designed to produce PVC (polyvinyl chloride) profiles used in the construction of windows and doors. This production line typically consists of several interconnected machines and equipment that perform different processes to transform raw materials into finished PVC profiles.
Here is a general description of the components and processes involved in a typical PVC window profile production line:
1.Raw Material Handling: The production line begins with the handling of PVC raw materials, including PVC resin, stabilizers, pigments, and additives. These materials are typically stored in silos or containers and are fed into the production line through an automated system.

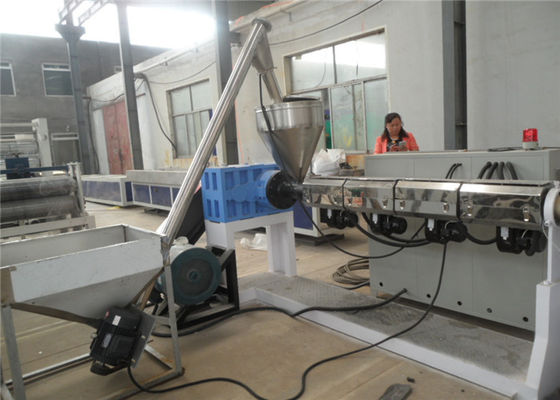

2.Mixing and Extrusion: The PVC resin and other additives are mixed together in precise proportions to create a homogenous compound. This compound is then fed into an extruder, where it is heated, melted, and forced through a specially designed die to form the desired shape of the PVC profile.

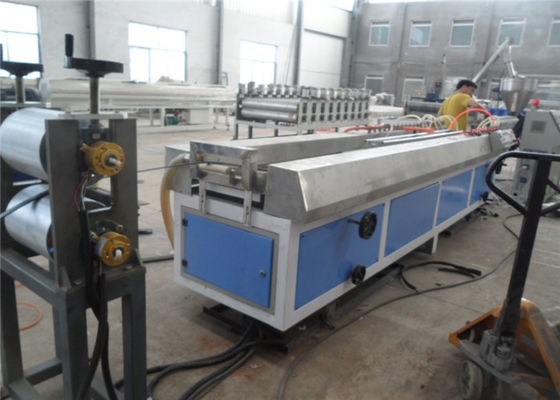

3.Cooling and Calibration: As the molten PVC material exits the extruder, it passes through a cooling system, which rapidly cools and solidifies the profile. This cooling process ensures the profile retains its desired shape and dimensions. Additionally, the profile may pass through a calibration unit that uses vacuum or pressure to further enhance its dimensional accuracy.

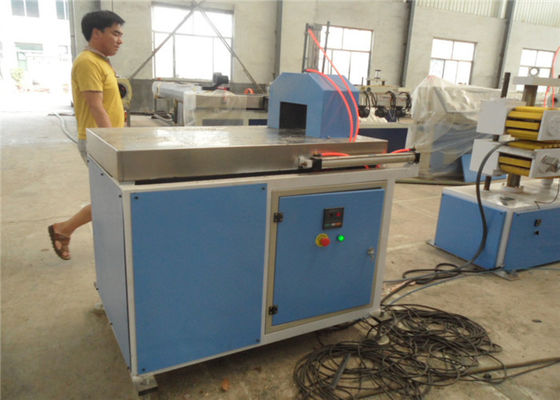

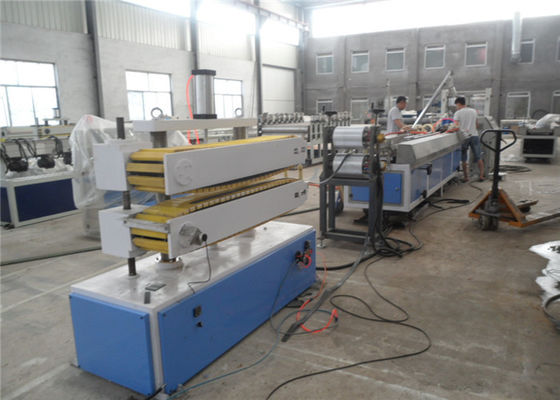

4.Haul-Off and Cutting: Once the profile is cooled and solidified, it is pulled or hauled off by a set of caterpillar-like haul-off units. These units grip the profile and transport it through the production line at a controlled speed. At a designated point, the profile is cut into desired lengths using saws or other cutting tools.
5.Surface Treatment: The cut PVC profiles may undergo surface treatment processes to enhance their appearance and performance. This may involve processes like cleaning, sanding, or embossing, depending on the specific requirements of the profiles.
6.Reinforcement Insertion (Optional): In some cases, reinforcement materials such as steel or aluminum may be inserted into the PVC profiles to provide additional strength and stability. This process typically involves automated machinery that cuts and inserts the reinforcement elements into the profile during production.
Technical Parameters:
Model | Profile Width(mm) | Extruder | Max. Capacity(kg/h) | Motor power(kW) |
YF108 | 108 | SJZ51/105 | 80-120 | 18.5 |
YF180 | 180 | SJZ51/105 or SJZ55/110 | 80-120/120-150 | 18.5/22 |
YF240 | 240 | SJZ65/132 | 175-250 | 37 |
YF300 | 300 | SJZ65/132 | 175-250 | 37 |
YF400 | 400 | SJZ65/132 or SJZ80/156 | 175-250/250-350 | 37/55 |
YF600 | 600 | SJZ65/132 or SJZ80/156 | 175-250/250-350 | 37/55 |
YF800 | 800 | SJZ80/156 | 280-350 | 55 |
YF1220 | 1220 | SJZ80/156 or SJZ92/188 | 300-350/600-700 | 75/110 |

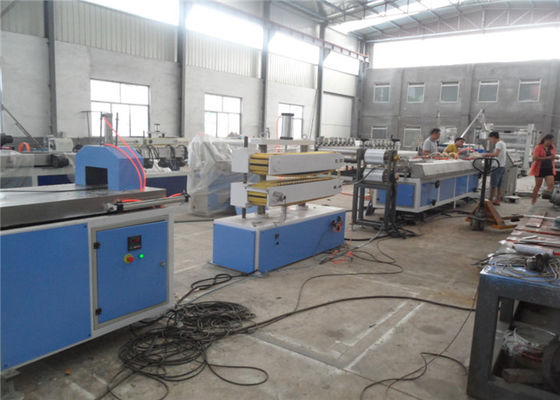

Machine display:
