Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Place Of Original: | China | Warranty Time: | 1 Year |
| Certificate: | CE Certificate | Voltage: | 380V 50HZ |
| Screw Design: | Single Screw | Plastic Processed: | PE PP |
| Port Of Lading: | Qingdao Port | Motor Brand: | Siemens |
| High Light: | LDPE Granules Making Machine,Plastic PE Granulator,Plastic Film Bag Granules Machine |
||
PE HDPE LDPE Plastic Granules Making Machine, High Quality PE Granulator, Plastic Film Bag Granules Machine
Description of plastic pe pelletizing machine:
1.Consist of:
Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder →
Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet
2.This series machine can make all kinds of plastic pellets such as PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PET etc.
Technical parameter:
| Model | Screw Diameter | L/D | Main Motor | Output | Cutting Method | |
| SJ120/120 | 120 | 120 | 37KW | 20 | Die Face Cutting or Strands Cutting |
|
| 10 | 15KW | 150-300KG/H | ||||
| SJ140/130 | 140 | 140 | 20 | 55KW | ||
| SJ140/140 | 130 | 140 | 10 | 18.5KW | 200-350KG/H | |
| SJ150/140 | 150 | 150 | 20 | 75KW | ||
| SJ150/150 | 140 | 150 | 10 | 22KW | 300-500KG/H | |
| SJ160/150 | 160 | 160 | 20 | 90KW | ||
| SJ160/160 | 150 | 160 | 10 | 37KW | 400-600KG/H | |

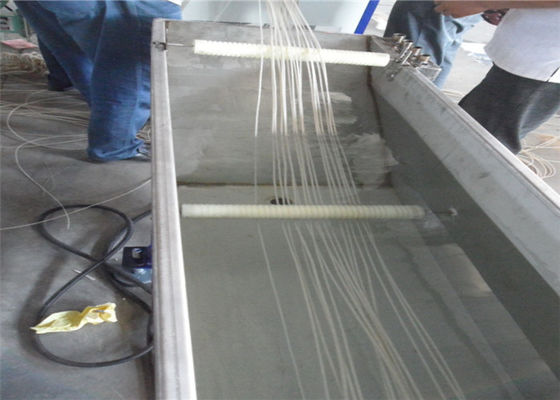

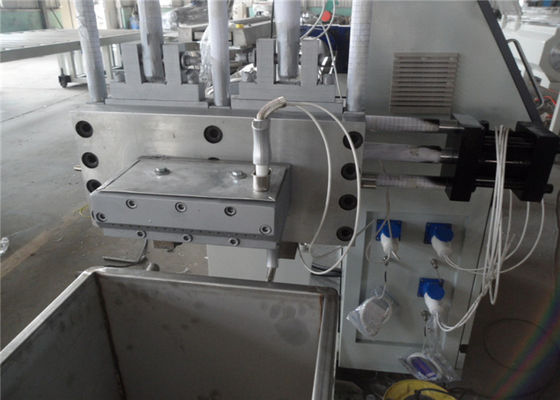

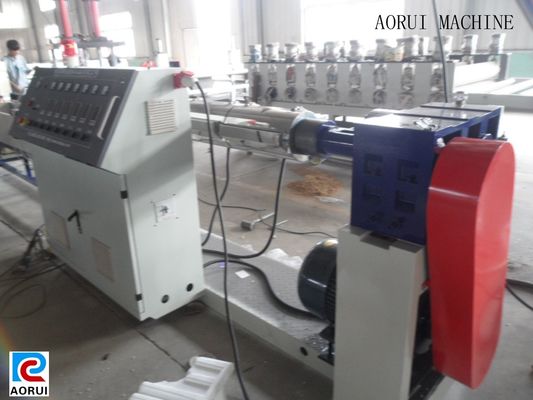

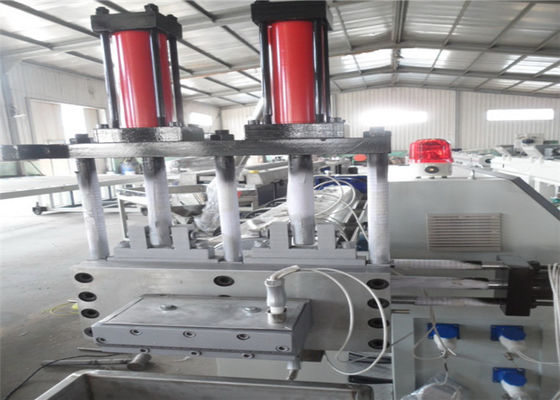

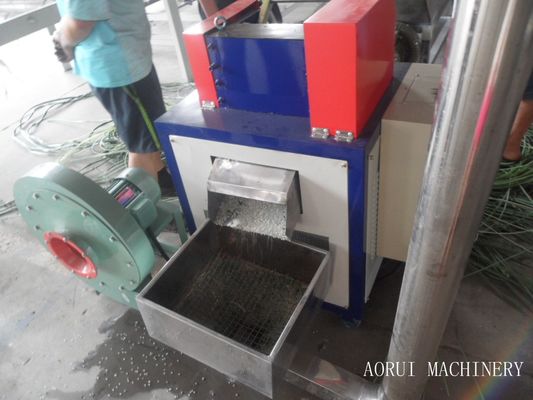

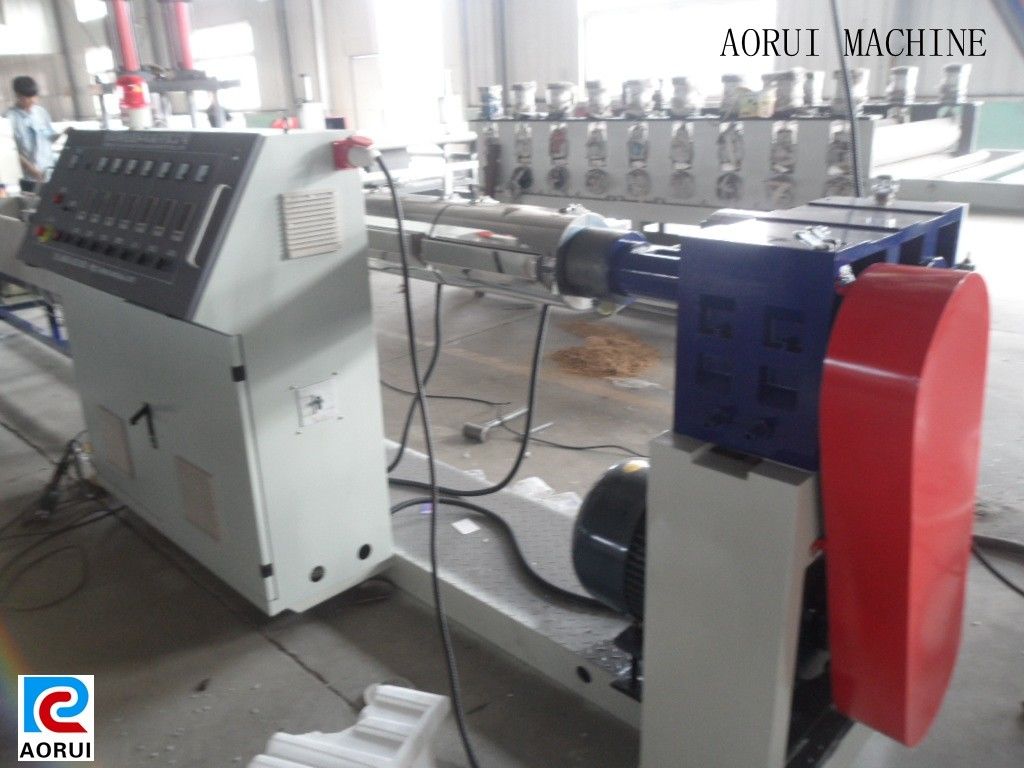

Machine display:
