Product Details:
|
| Brand Name: | AORUI | Machine Model: | SJSZ65X132 |
|---|---|---|---|
| Condition: | New | Screw Design: | Double Screw |
| Place Of Original: | China | Plastic Processed: | PVC Powder |
| Port Of Lading: | Qingdao Port | Certificate: | CE Certificate |
| Drive Brand: | ABB | Motor Brand: | Siemens |
| High Light: | PVC Double Outlet Pipe Production Line,PVC Double Pipe Making Machine 12mm,120kg/h PVC Pipe Making Machine |
||
PVC Double Pipe Making Machine,12-90mm PVC Double Outlet Pipe Production Line
Description of PVC Double Pipe Extrusion Line:
1.SJSZ Series twin screw extruder is a special equipment which suitable for PVC Powder material. Match with different mould and auxiliary machine, can produce different pvc pipes.
2.The barrel is used aluminum heaters and fan cooling system,the heat transfer is fast and uniform, easy to operate.
3.The screw core part adopt automatic circulation adjustment system, the production efficiency is high. According to different formula, equipped with screw of reasonable structure, to achieve good plasticization state and good quality
Technical Specifications:
| Model | Diameter | Approximately price | Production capacity | Main extruder power |
| 51/105 | 16-50mm | 30000-35000 USD | 80-120kg/h | 22kw |
| 65/132 | 50-160mm | 40000-46000 USD | 150-240kg/h | 37kw |
| 80/156 | 160-315mm | 65000-72000 USD | 300-350kg/h | 75kw |
| 92/188 | 315-500mm | 190000-200000 USD | 400-500kg/h | 110kw |
Application of PVC Pipes:
It is mainly used in producing various diameters and wall-thickness of PVC pipes for agriculture and constructional plumbing, electrical conduit etc. Can manufacture U-PVC, C-PVC, O-PVC pipe according to customer's requirements.

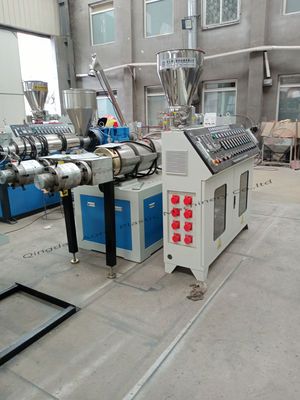

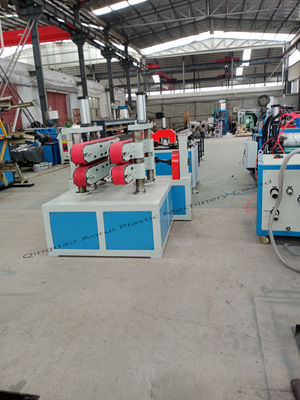

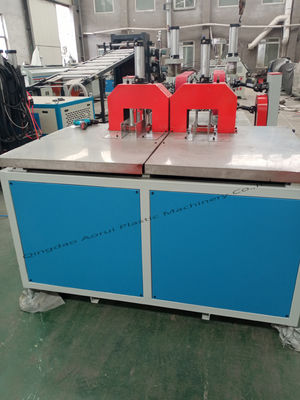

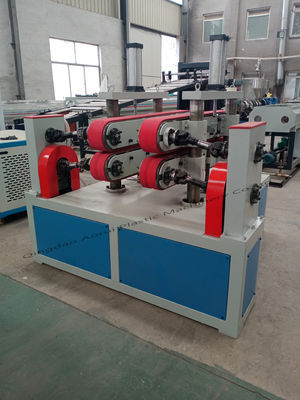

Machine display:
Tag: PVC Pipe Making Machine Water supply pipes and Drain pipes Production Line
