Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Port Of Lading: | Qingdao Port | Certificate: | CE Certificate |
| Place Of Original: | China | Screw Design: | Single Screw |
| Brand Name: | AORUI | Motor Brand: | Siemens |
| Warranty Time: | 1 Year | HS Code: | 8477800000 |
| High Light: | Corrugated Plastic Pipe Extrusion Line,Single Wall Corrugated Pipe Production Line,PE Plastic Corrugated Pipe Extrusion Line |
||
PP PE Plastic Corrugated Pipe Extrusion Line , Single Wall Corrugated Pipe Making Machine
Plastic PP PE Single Wall Corrugated Washing Machine Pipe Tube Hose Extrusion Production Line Features:
High and stable extrusion capacity
Corrugator mould one mould two size
Good water cooling or air cooling system
Description of PE Corrugated Pipe Machine:
1. Single Screw extruder 2 units
Type: SJ65/30 SJ90/30 SJ120/30
ABB inverter, SIEMENS contactor, OMRON temperature controller
2.pipe extrusion die + corrugated pipe forming die 1 set
Metled plastic comes out from extruder will go into the die to extrude the round shape. considering the wall thickness is too tin to control the sizing. it will need vacuum blow into the forming die.
Forming die are made of auminum/aluminum-alloy. one diameter needs one set of forming die. it has beling modules in forming die, so it will be easy to do the pipe connection.
3. forming machine
forming machine used to setting the forming die, and making the forming die continously working.
4. Spraying Cooling Tank
Usd to cooling the corrugated pipe
5. cutting machine + stacker or winding machine
usually for small size(9mm to 110mm) corrugated pipe equip with winding machine, single disc winder, double disc winder, both are ok. for high speed suggest double disc widner.
also like 75mm, 90mm, 110mm pipe couble be cutted in short length, such as 9m, 6m etc. then need quip with cutting machine + stacker, becasue cutting frequency more more higher than winding type.
Parameters of Wholesale Plastic PVC PP PE Single Wall Corrugated Pipe Tube Hose Production Extrusion Line
| pipe diameter range(mm) | 4.5-9mm | 9-32mm | 32-50mm |
| extruder model | SJ-30 | SJ-45 | SJ-65 |
| motor power(kw) | 4 | 11 | 18.5 |
| capacity(kg/h) | 10 | 40 | 80 |
| cooling way | water or air | water or air | water or air |
| production speed(m/min) | 6-10 | 8-15 | 10-17 |
Application:
The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc. . It is widely used both at home and abroad as it is an easy and reliable coupling without any complex fitting, and replaces the concrete pipe and cast iron pipe. At present, PE double wall corrugated piping is being used extensively to ensure the development of environmental protection during networking of water and sewerage .

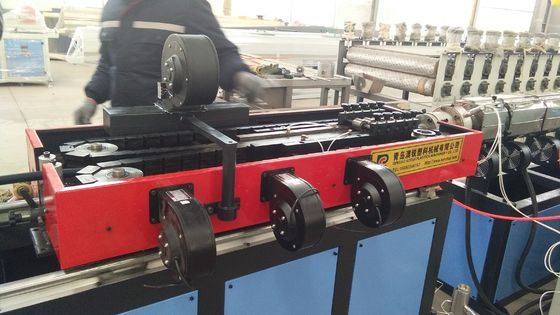

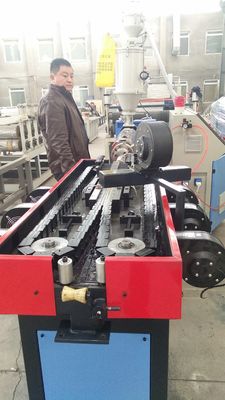

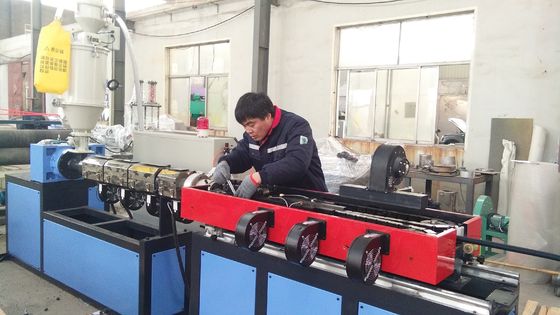

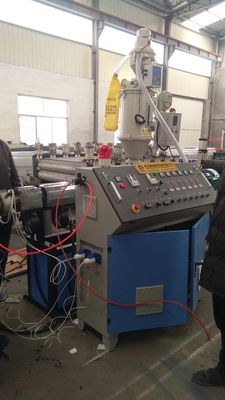

Machine display:
Tag: corrugated pipe machine corrugated pipe extrusion line corrugated pipe making machine
