Single Wall Corrugated Pipe Extrusion Line PE Plastic Washing Machine

Single Wall Corrugated Pipe Extrusion Line PE Plastic Washing Machine

Brand Name:	AORUI
Model Number:	SJ75/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Brand Name:

Aorui

Place Of Original:

China

Automatic Grade:

Fully Automatic

Port Of Lading:

Qingdao Port

Voltage:

380V 50HZ

Certificate:

CE Certificate

Screw Design:

Single Screw

Motor Brand:

Siemens

Warranty Time:

1 Year

HS Code:

8477800000

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Automatic Corrugated Pipe Production Line

Single Wall Corrugated Pipe Extrusion Line

PE Plastic Washing Machine 380V

Product Description

Single Wall Corrugated Pipe Extrusion Line , PE Plastic Washing Machine Pipe Production Line

Quick Details:

1.The design of the die head is short flow channel to realise low temperature and low pressure extrusion.

2.Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.
-----Production speed is 15m/min to 25m/min.
-----The forming machine has 38 pairs to 72 pairs forming block.

3.It consists of automatic feeding system/single screw extruder/die head/forming machine /winder. It is mainly produce PE/PP/PVC single corrugated pipe.

4.The PE/PP/PVC single corrugated pipe is mainly used in the golf course, playgrounds as light load of drainage, floods; Interior decoration cable casing; Automotive wire casing; The washing machine, air conditioner drain; Prestressed concrete special.

Parameters of Wholesale Plastic PVC PP PE Single Wall Corrugated Pipe Tube Hose Production Extrusion Line

pipe diameter range(mm)	4.5-9mm	9-32mm	32-50mm
extruder model	SJ-30	SJ-45	SJ-65
motor power(kw)	4	11	18.5
capacity(kg/h)	10	40	80
cooling way	water or air	water or air	water or air
production speed(m/min)	6-10	8-15	10-17

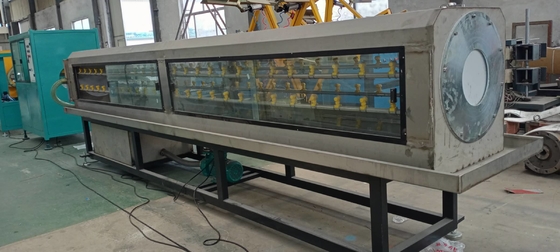

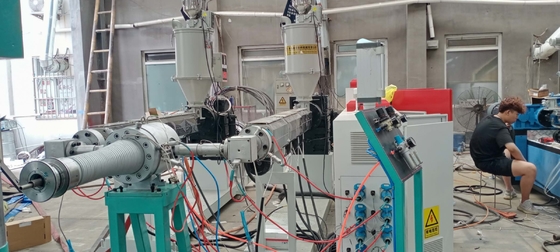

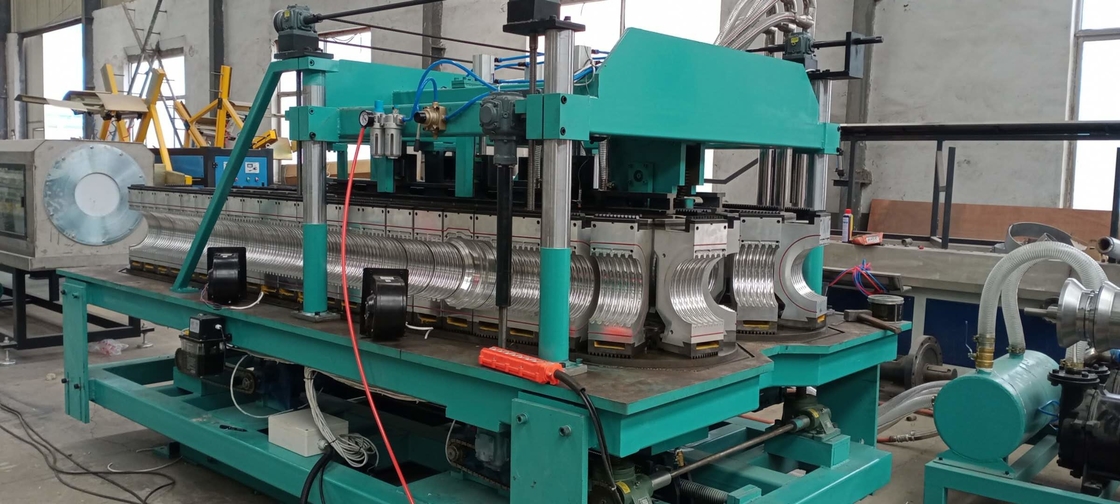

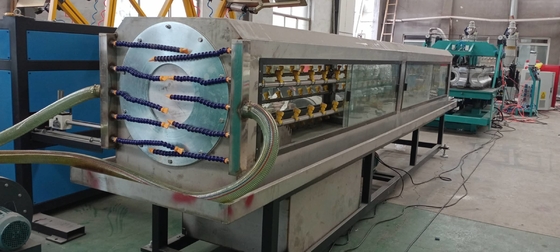

Machine display:

Single Wall Corrugated Pipe Extrusion Line PE Plastic Washing Machine 0
