Twin Screw Extruder With High Quality Mold PVC Plastic Profile Extrusion Line

Brand Name:	AORUI
Model Number:	SJSZ65/132
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA ISO9001

Plastic Processed:

PP / PE With Wood Powder

Certification:

SONCAP,CE

Processing Type:

Extruding Machine

Product Type:

Profile

Feature:

High Output

Capacity:

According To Different Model

Brand Name:

Aorui

Place Of Roiginal:

Qingdao City

Condition:

New

Warranty Time:

1 Year

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per quarter

Highlight:

Plastic Profile Extrusion Machine

Plastic Profile Extruder

Product Description

Twin Screw Extruder With High Quality Mold PVC Plastic Profile Extrusion Line

Quick detail:

1.This profile production line is composed of Electrical cabinet, Twin screw extruder, extrusion mold, calibrator device, cutter, stacker.

2.It is compact structure, good plasticization, high output, long service life.

Description:

1.PP/PE wpc decking profiles making machine is mainly used for producing wpc profiles,such as decking,skirting stair handrails etc.Meanwhile,this production line can also produce pure pvc products,such as door&window frame,ceiling etc.Final products has good appearance,high compression capability.not easy deformation.

2.MSYF series WPC profile production line is suitable for PVC + wood powder. he production line adopts the my company original WPC technology and formula, according to different profiles section, different uses, different proportion of product design, use different specifications of wood-plastic twin-screw extruder, and WPC dedicated single-screw extruder , and corresponding vacuum shaping table, tractor, cutting machine, stacker and other auxiliary equipment.By changing different mold can produce different wood plastic products.

Specifications:

MODEL	YF180	YF240
Vacuum degree (MPa)	-0.08--0.09	-0.08--0.09
Center height of T type dies (mm)	320	320
Height from ground to die (mm)	890-1100	890-1100
Moving distance of vacuum calibration table (mm)	400	500
Hauling speed (m/min)	0.3-7.8	0.1-4
Hauling force (KN)	7.5	30
Effective hauling length (mm)	1.0	1.8
Width of rubber (mm)	180	240
Cutting linear velocity (m/s)	58.6	58.6
Max. Cutting section (mm)	180×65	240×65

Competitive Advantage:

1.It purchase the advanced technology of west europ famous brands and redesign according to diffferent countries customers detail requirements to lower the customers cost.

2.The whole production line can produce the PVC window&doors profiles with width of 300mm(max) and solved the prodblem of waste PVC profiles recycling.

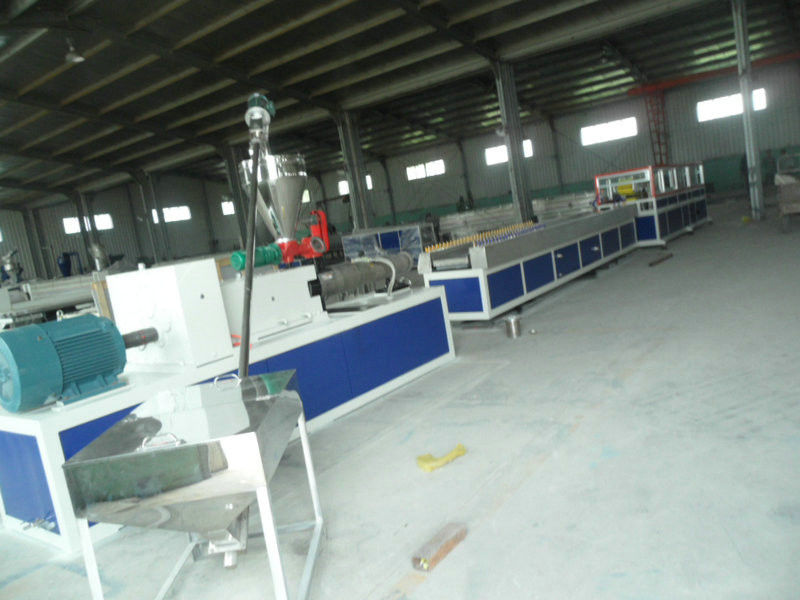

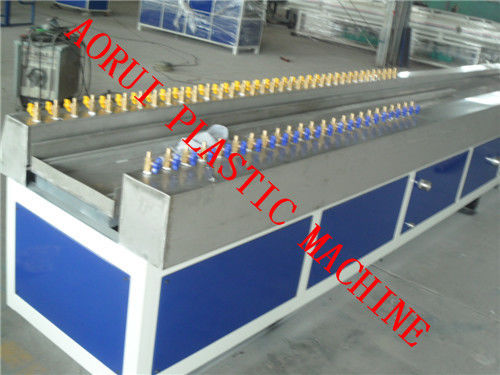

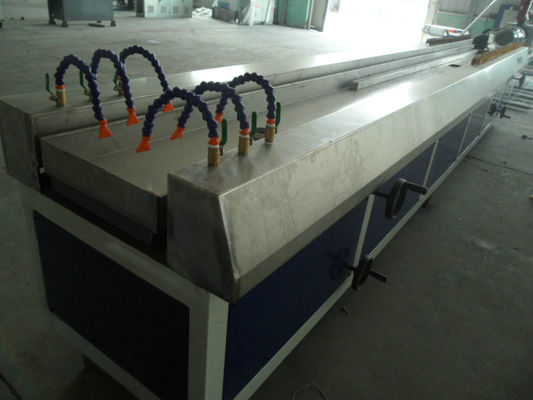

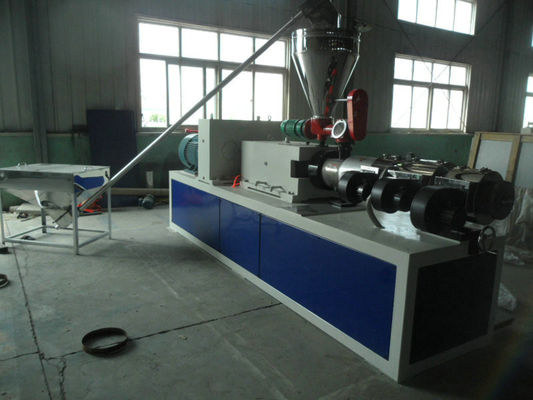

Machine display:
