HDPE PE Gas Pipe / Water Pipe Making Machine, Single Screw Extruder With CE Certificate

HDPE PE Gas Pipe / Water Pipe Making Machine, Single Screw Extruder With CE Certificate

Brand Name:	AORUI
Model Number:	SJ75/33 SJ90/33
MOQ:	1 set
Price:	USD
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Condition:

New

Automatic Grade:

Fully Automatic

Plastic Processed:

PE Resin

Model Number:

SJ65/33

Machine Control:

PLC Control

Warranty Time:

1 Year

Place Of Original:

China

Inverter Brand:

ABB

Packaging Details:

Regular package

Supply Ability:

10 SETS PER MONTH

Highlight:

PE Pipe Single Screw Extrusion Line

HDPE Water Pipe Single Screw Extruder

CE Plastic Gas Pipe Extrusion Line

Product Description

HDPE Pipe Production Line , Gas Pipe Water Pipe PE Pipe Making Machine , Single Screw Extruder With CE certificate

Description of PE Pipe Production Line:
1.PE pipe extrusion line is mainly used for producing agricultural irrigation pipes, drainage pipes, gas pipes,
water supplying pipes , and cable conduit pipes,etc.
2.The unit consists of single screw extruder , die head, vacuum cooling tank,haul-off machine, planetary (swarf less/ chip free cutter / no dust cutter) cutting machine, winder stacker and so on. Our production line is equipped with gravimetric dosing unit, and ultrasonic thickness indicator. Turn key solution can be provided, Like laser printer crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
3.Working process (It can produce 20-630mm hdpe pipe )
Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker

Technical Parameter:
Main Technical Parameter :

Model number	16/63	20/110	50/160	75/250	110/315	200/450	315/630
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm	315-630mm
Max output	150kg/h	200kg/h	350kg/h	350kg/h	350kg/h	450kg/h	850kg/h
Production rate	1-15m/min	1.2-12m/min	0.6-8m/min	0.5-4m/min	0.4-3.7m/min	0.3-3m/min	0.2-2m/min
Extruder model	SJ-65/30	SJ-65/33	SJ-75/33	SJ-75/33	SJ-75/33	SJ-90/33	SJ-120/33
Installed power	85kw	110kw	125kw	180kw	260kw	325kw	480kw
Center height	1000mm	1000mm	1000mm	1000mm	1100mm	1100mm	1200mm
Installation area	35x3.0x2.0m	383.12.2m	383.12.2m	403.22.4m	423.22.4m	523.32.6 m	603.52.8m

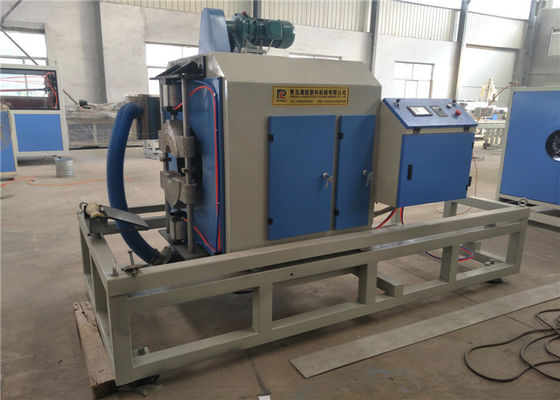

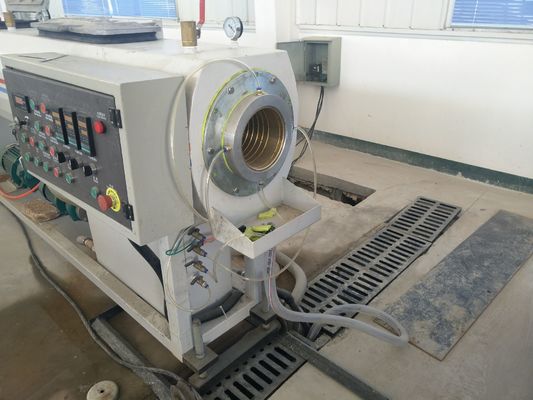

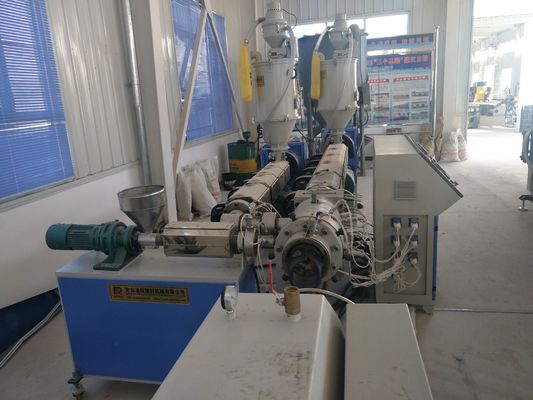

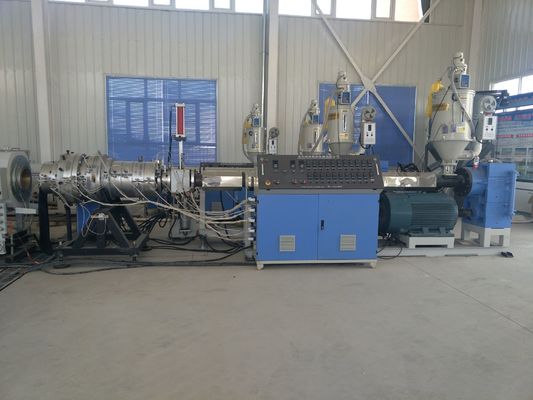

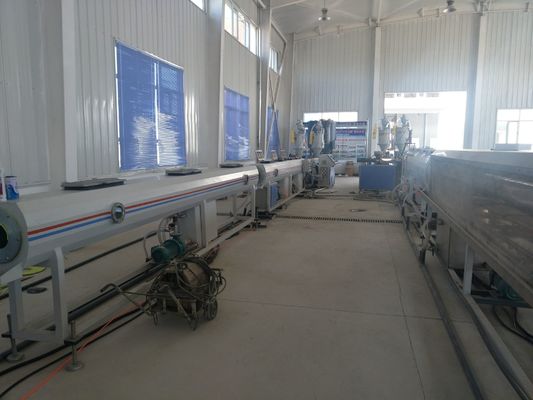

Machine display:
HDPE PE Gas Pipe / Water Pipe Making Machine, Single Screw Extruder With CE Certificate 0
