Product Details:
|
| Brand Name: | AORUI | Screw Design: | Double Screw |
|---|---|---|---|
| Condition: | New | Place Of Original: | China |
| Certificate: | CE Certificate | Model Number: | SJSZ65X132 |
| Inverter Brand: | ABB | Port Of Lading: | Qingdao Port |
| High Light: | UPVC Profile Extrusion Line,PVC Windows UPVC Profile Extrusion Line,UPVC Profile Extrusion Line |
||
PVC WPC Profile Machine WPC PVC Window Door Plastic Profile Production Line With Twin Screw Extruder
FEATURES:
- Twin screw extruder BA92 Max
- 12 meters sizing support
- Haul-off unit of 2,5 m contact length
- Hot blade cutting unit
- Stacking unit
Description of pvc profile production line:
1-Capacity of main frame can be optionally chosen from 60-700 kg/hour.
2-With different molds, it can products different kinds of profiles.
3-The haul-off unit has applied unique lift technique. Its work is stable, its reliability is good, its pulling force is large.
4-Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.
5-Movement speed and drawing speed of cutting machine keep synchronous.
6-All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length.
7- Powder & dust suction device can be provided.
8- The stacker platform can choose such specifications as 4-meter, 6-meter, 8-meter, 11-meter, etc.
9-With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.
Technical Parameter of pvc profile extrusion line:
| Model | SJSZ 51/105 | SJSZ 65/132 | SJSZ 80/156 | SJSZ 92/188 |
|
Screw Diameter (mm) |
51mm/105mm | 65mm/132mm | 80mm/156mm | 92mm/188mm |
|
Output (Kg/h) |
80-120 | 160-200 | 250-350 | 400-500 |
|
Main Drive Power (kw) |
18.5 | 37 | 55 | 110 |
|
Heating Area (Kw) |
3 zones, 18Kw | 4 zones, 20Kw | 5 zones, 38Kw | 6 zones, 54Kw |
Application:
The PVC WPC profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.

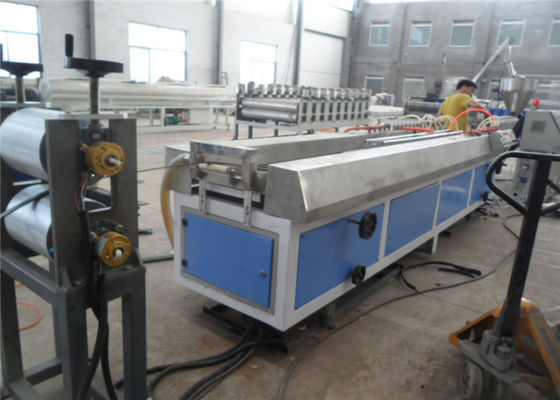

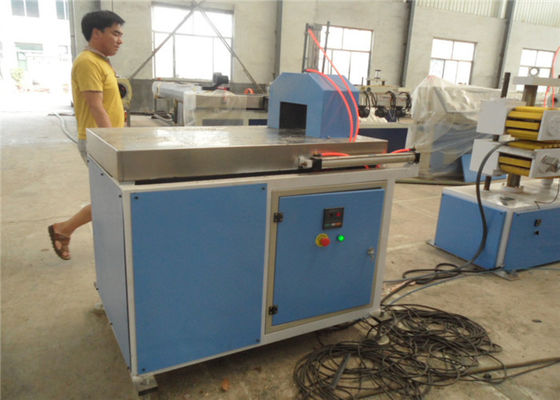

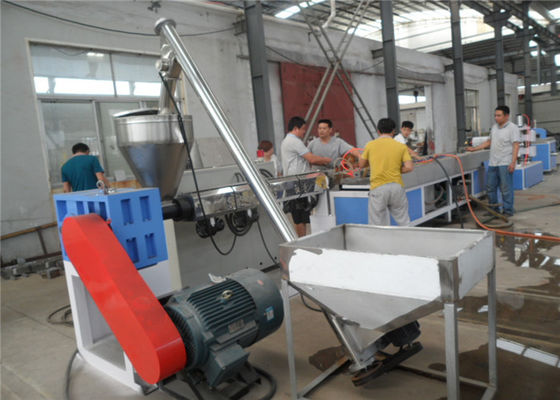

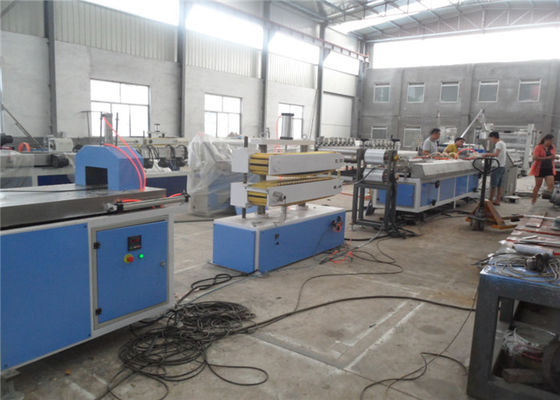

Machine display:
Tag:pvc profile extrusion line pvc profile extruder wpc profile making machine
