16mm to 630mm HDPE Pipe Production Line , Single Screw Exrtruder

16mm to 630mm HDPE Pipe Production Line , Single Screw Exrtruder

Brand Name:	Aorui
Model Number:	SJ65/33
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C Western Union
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China mainland

Certification:

CE UL CSA

Model Number:

SJ75/33

Automatic Grade:

Fully Automatic

Extruder Model:

SJ75/33

Certificate:

CE Certificate

Brand Name:

Aorui

Screw Number:

Production Capacity:

150kg/h

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

single screw hdpe pipe production line

630mm hdpe pipe production line

16mm polyethylene pipe production line

Product Description

Description of HDPE Pipe Production Line:

1.PE Pipe Extruder: The Core Equipment for Efficient Production

The PE pipe extruder is a crucial piece of equipment in modern plastic pipe manufacturing, widely used in producing pipes for water supply, drainage, gas transportation, and cable protection. With the growing demand for pipes in various industries, extruder technology is advancing rapidly, featuring higher performance, easier operation, and lower energy consumption, becoming the mainstream choice in the market.

2.Working Principle of the PE Pipe Extruder

The PE pipe extruder primarily consists of an extruder, mold, cooling system, haul-off equipment, and cutting device. Its basic working principle is to heat and melt PE raw materials, which are then pushed through the mold by the screw to form the pipe. The pipe is subsequently cooled, shaped, and cut to the required length.

Technical Parameters for HDPE Pipe Machine:

Max Dia. Of pipe(mm)	75	125	250	630
Main machine	SJ65/30	SJ75/30	SJ90/30	SJ120/30
Motor power(kw)	60	75	160	260
Motor type	Direct current model	Direct current model	Direct current model	Direct current model
Max. capacity(kg/h)	160	260	400	900
Traction speed(m/min)	0.5DRM8	0.3DRM4	0.2DRM2	0.1DRM1
Max. traction(N)	10000	15000	30000	40000
Cutting type	Disc type cutting	Disc type cutting	Planet cutting	Planet cutting
length(mm)	22000	34000	44000	58000

Application Fields

PE pipes produced by extruders are widely used in various industries:

Municipal Engineering: Water supply, drainage, and gas pipelines.
Agricultural Irrigation: Corrosion-resistant PE pipes are essential for modern irrigation systems.
Cable Protection: PE pipes used as protective sheaths extend the lifespan of cables and enhance their protection.

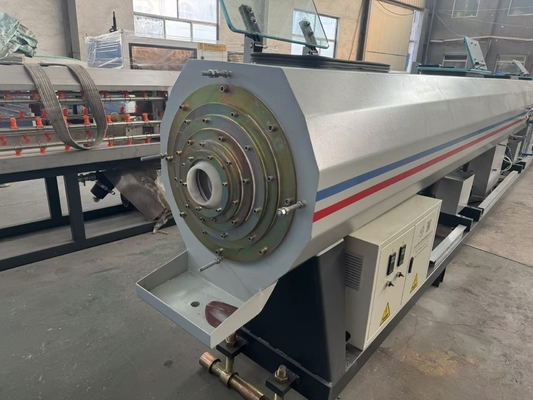

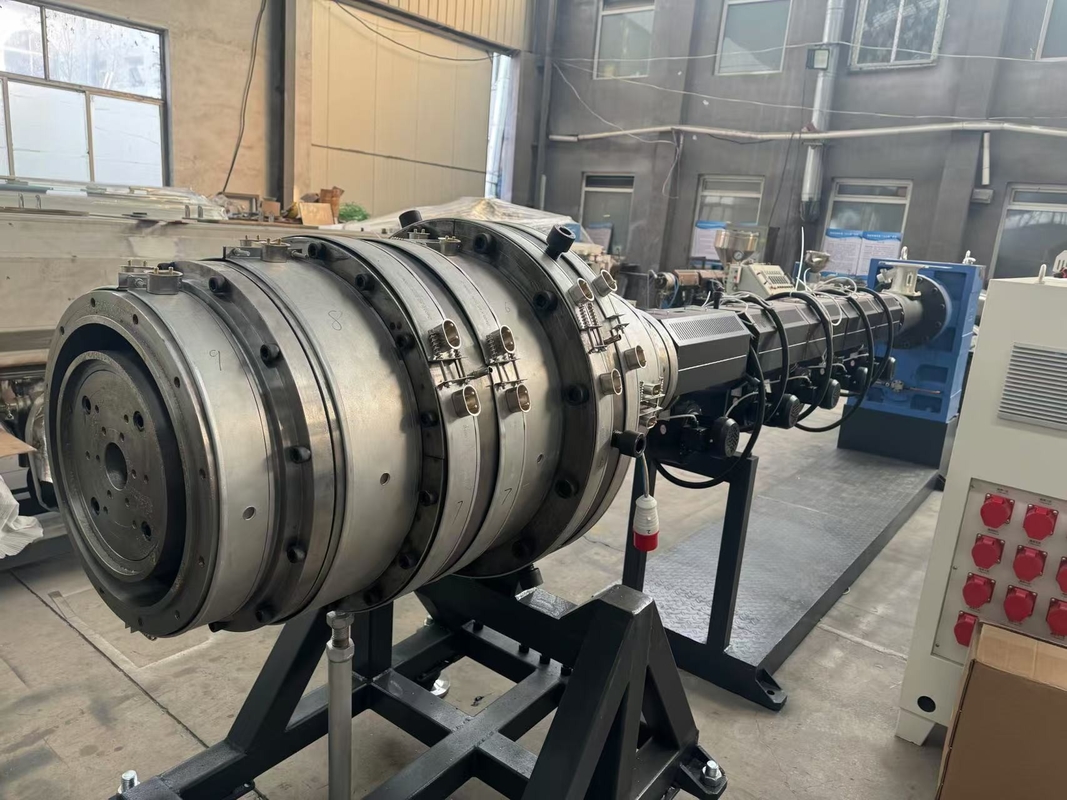

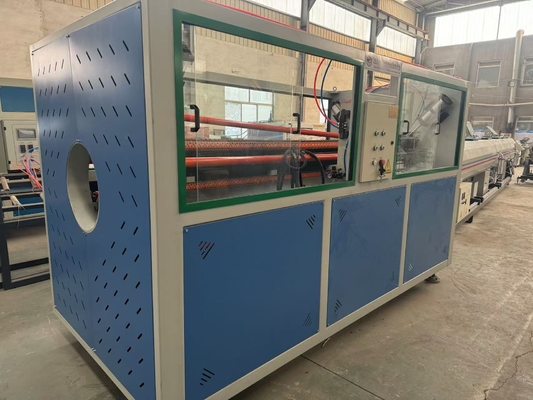

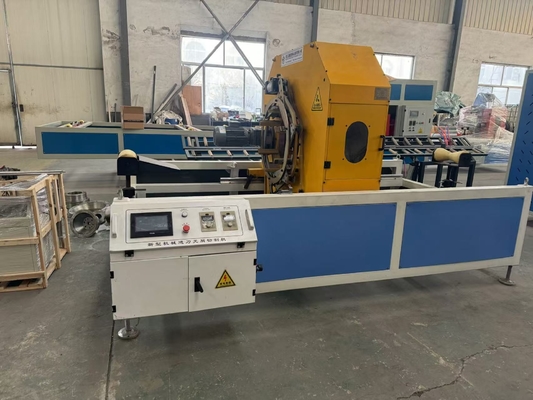

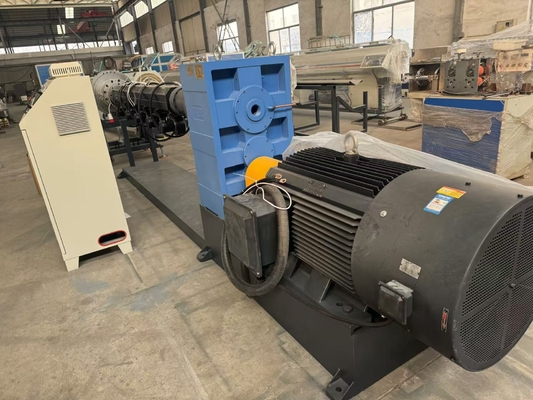

Machine display:
