PE HDPE Pipe Production Line PPR PE Plastic Water Pipe Extrusion Line Easy Operate

PE HDPE Pipe Production Line PPR PE Plastic Water Pipe Extrusion Line Easy Operate

Brand Name:	AORUI
Model Number:	SJSZ75x33
MOQ:	1 set
Price:	According to machine type
Payment Terms:	30% down payment by TT,70% should be paid before shipping by TT
Supply Ability:	5 sets one month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE certificate

Model Number:

SJ75/33

Screw Design:

Single Screw

Condition:

New

Automatic Grade:

Fully Automaitc

Place Of Original:

China

After-sales Service:

Engineer Is Availiable To Service

Motor Power:

45kw

Cerficaite:

CE Certificate

Packaging Details:

Film package

Supply Ability:

5 sets one month

Highlight:

PE plastic pipe extrusion line

HDPE polyethylene pipe production line

PPR hdpe pipe extrusion machine

Product Description

Brief description:

1.PE/HDPE/PPR Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

2.The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding

Description of HDPE Pipe Extrusion Line:

Main features of the production line:
1. The extruder has the advantages of high plasticization rate, uniform melt, continuous production stability, etc. High-performance gearbox reducer. High torque, long service life, low noise.
2. Surface nitriding, after nitriding, the product has excellent wear resistance, fatigue resistance, corrosion resistance, high temperature resistance, and a long working life.
3. All parts are from well-known domestic and foreign brands.

Technical parameter:

Model number	PE-16/63	PE-20/110	PE-50/160	PE-75/250	PE-110/315	PE-200/450	PE-315/630	PE-400/800
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm	315-630mm	400-800mm
Max output	150kg/h	200kg/h	350kg/h	350kg/h	350kg/h	450kg/h	850kg/h	850kg/h
Production rate	1-15m/min	1.2-12m/min	0.6-8m/min	0.5-4m/min	0.4-3.7m/min	0.3-3m/min	0.2-2m/min	0.1-1 m/min
Extruder model	SJ-65/30	SJ-65/33	SJ-75/33	SJ-75/33	SJ-75/33	SJ-90/33	SJ-120/33	SJ-120/33
Installed power	85kw	110kw	125kw	180kw	260kw	325kw	480kw	600kw
Center height	1000mm	1000mm	1000mm	1000mm	1100mm	1100mm	1200mm	1300
Installation area	35x3.0x2.0m	383.12.2m	383.12.2m	403.22.4m	423.22.4m	523.32.6 m	603.52.8m	683.63.0m

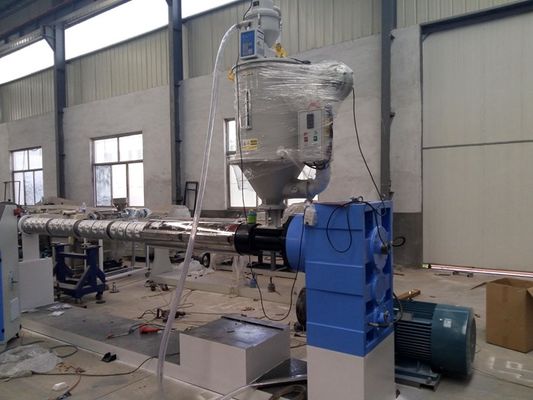

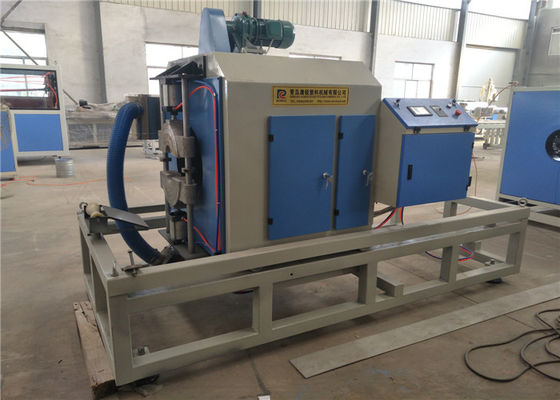

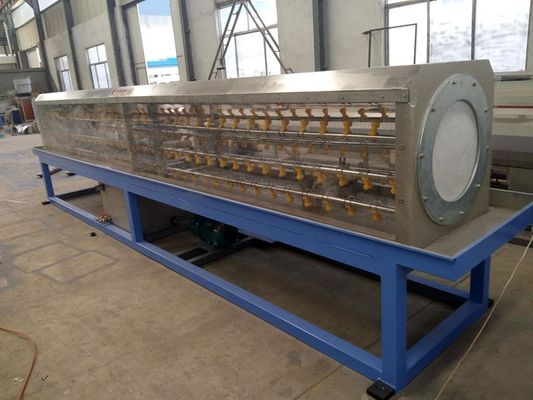

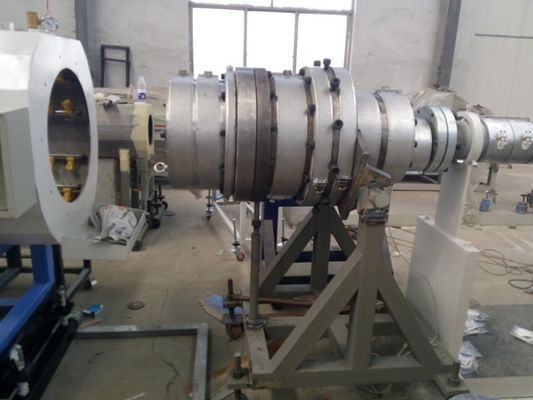

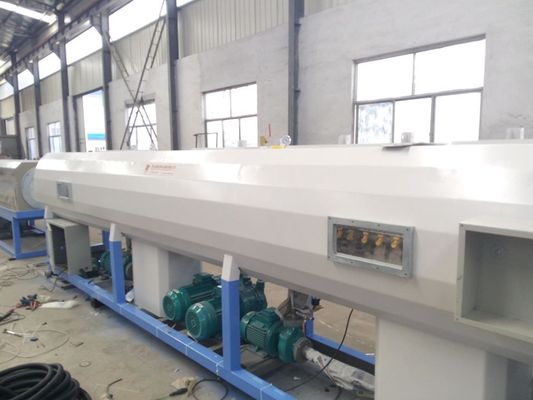

Machine display:
