High-speed PE plastic pipe production line for water supply systems

High-speed PE plastic pipe production line for water supply systems

Brand Name:	AORUI
Model Number:	SJ90/33 SJ120/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA ISO9001

Automatic Grade:

Fully Automatic

Plastic Processed:

Voltage:

380V 50HZ

Warranty:

1 Year

After-sales Service:

Engineers Go To Customer's Factory To Installation Machine

Place Of Original:

Qingdao City

Motor:

Siemens

Inverter:

ABB

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

PE plastic pipe production line

high-speed pipe extrusion line

water supply pipe manufacturing line

Product Description

High-speed PE Plastic Pipe Production Line for Water Supply Systems

Product Specifications

Attribute	Value
Automatic grade	Fully automatic
Plastic Processed	PE
Voltage	380V 50HZ
Warranty	1 year
After-sales service	Engineers go to customer's factory to install machine
Place of origin	Qingdao city
Motor	Siemens
Inverter	ABB

Equipment Overview

The SJ65/33 PE pipe production line is a high-efficiency extrusion equipment specially designed for manufacturing PE pipes with diameters ranging from 16-63mm. Suitable for HDPE/LDPE raw materials, it can produce various types of pipes including water supply pipes, gas pipes, and industrial pipes.

Equipment Components

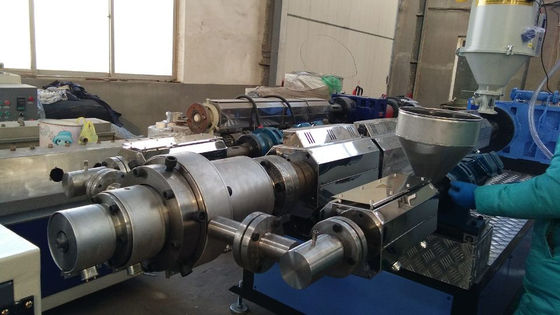

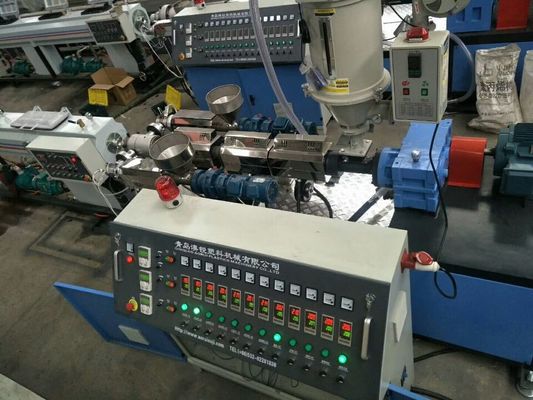

Extrusion System

Main machine adopts SJ65/33 single-screw extruder
Screw L/D ratio 33:1, equipped with 4-6 temperature control zones
Maximum output 150kg/h, equipped with 55-75kW variable frequency motor

Die System

Uses spiral flow distribution die
Quick-change die head for 16-63mm pipe production
Equipped with precise temperature control system

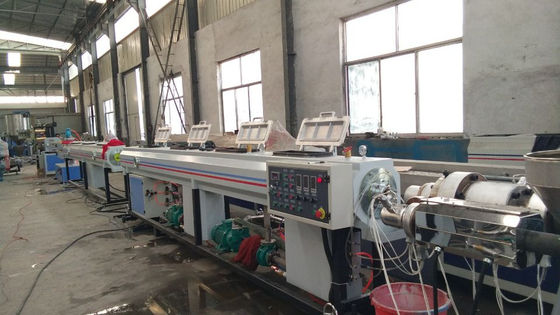

Calibration System

Vacuum calibration tank, length 2-3 meters
Stainless steel sizing sleeves
Spray cooling system ensures fast cooling and shaping

Haul-off System

Track-type haul-off unit with stable pulling force
Variable speed control (0.5-6 m/min adjustable)
Equipped with pressure sensor for automatic speed adjustment

Cutting System

Optional planetary cutter or automatic cutter
Cutting accuracy ±1mm
Equipped with automatic length counting function

Technical Parameters

Model/data	Pipe diameter	Extruder model	Speed	Max capacity
FE63	16-63mm	SJ65	1-12m/min	80kg/h
FE110	50-110mm	SJ75	1-8m/min	150kg/h
FE160	75-200mm	SJ90	1-5m/min	260kg/h
FE400	200-400mm	SJ120	0.5-1.5m/min	450kg/h
FE630	400-630mm	SJ120,SJ90	0.1-0.8m/min	650kg/h
FE800	630-800mm	SJ150,SJ120	0.1-0.8m/min	800kg/h
