Automatic HDPE Pipe Extrusion Production Line With PLC Control

Automatic HDPE Pipe Extrusion Production Line With PLC Control

Brand Name:	AORUI
Model Number:	SJ90/33 SJ120/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA ISO9001

Model Number:

SJ75/33

Place Of Original:

China

Port Of Lading:

Qingdao Port

Raw Material:

PE Resin

Screw Design:

Single Screw

Machine Type:

Extruder

Motor Brand:

Siemens

Inverter Brand:

ABB

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

HDPE pipe extrusion line

PLC control extrusion line

automatic pipe production line

Product Description

Automatic HDPE Pipe Extrusion Production Line With PLC Control

Product Specifications

Attribute	Value
Model number	SJ75/33
Place of origin	China
Port of lading	Qingdao Port
Raw material	PE resin
Screw design	Single screw
Machine type	Extruder
Motor brand	Siemens
Inverter brand	ABB

Equipment Overview

The SJ75/33 PE Pipe Extrusion Line is a high-efficiency automated production system designed for manufacturing HDPE (High-Density Polyethylene), LDPE (Low-Density Polyethylene), and other plastic pipes. Featuring advanced extrusion technology and an intelligent control system, this equipment is widely used in producing water supply/drainage pipes, agricultural irrigation pipes, and industrial pipelines. It offers high output, low energy consumption, and excellent stability, making it ideal for plastic pipe manufacturing.

Machine Description

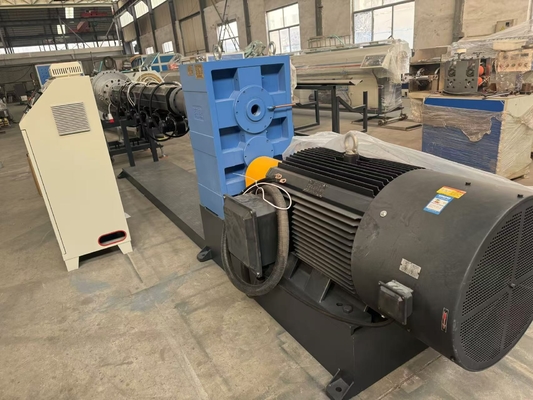

Extrusion System
- High-strength alloy screw and barrel for wear & corrosion resistance
- Multi-zone heating (5-7 zones) with ±1°C precision and air cooling
Die & Calibration Unit

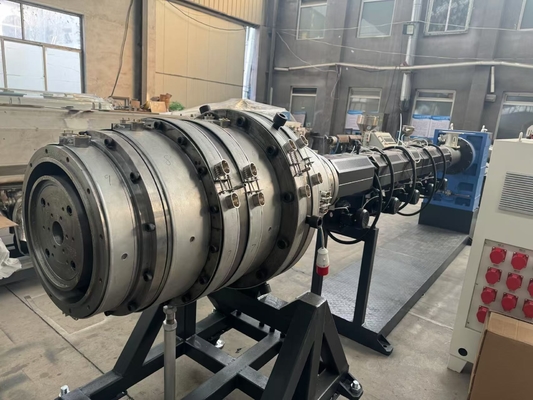

- Spiral mandrel die design for smooth melt flow and pressure stability

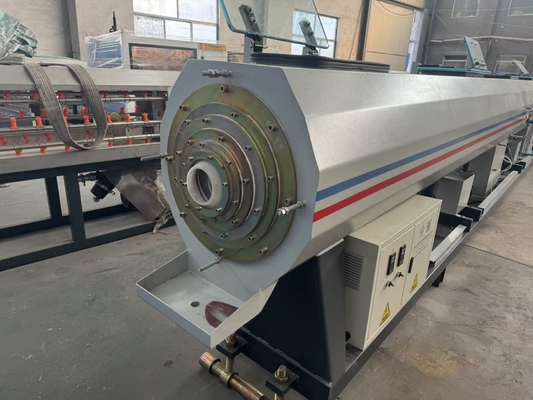

- Vacuum calibration tank with precise water level/temperature control
Haul-off Unit
- Track-type haul-off with stepless speed adjustment, ensuring uniform traction

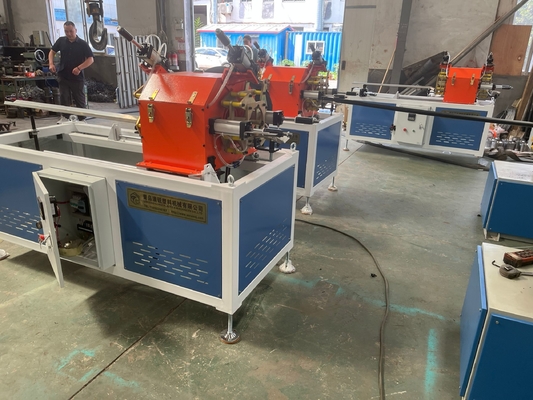

Cutting Unit
- Automatic planetary cutter for clean, burr-free cuts (adjustable length: 0.1-6m)

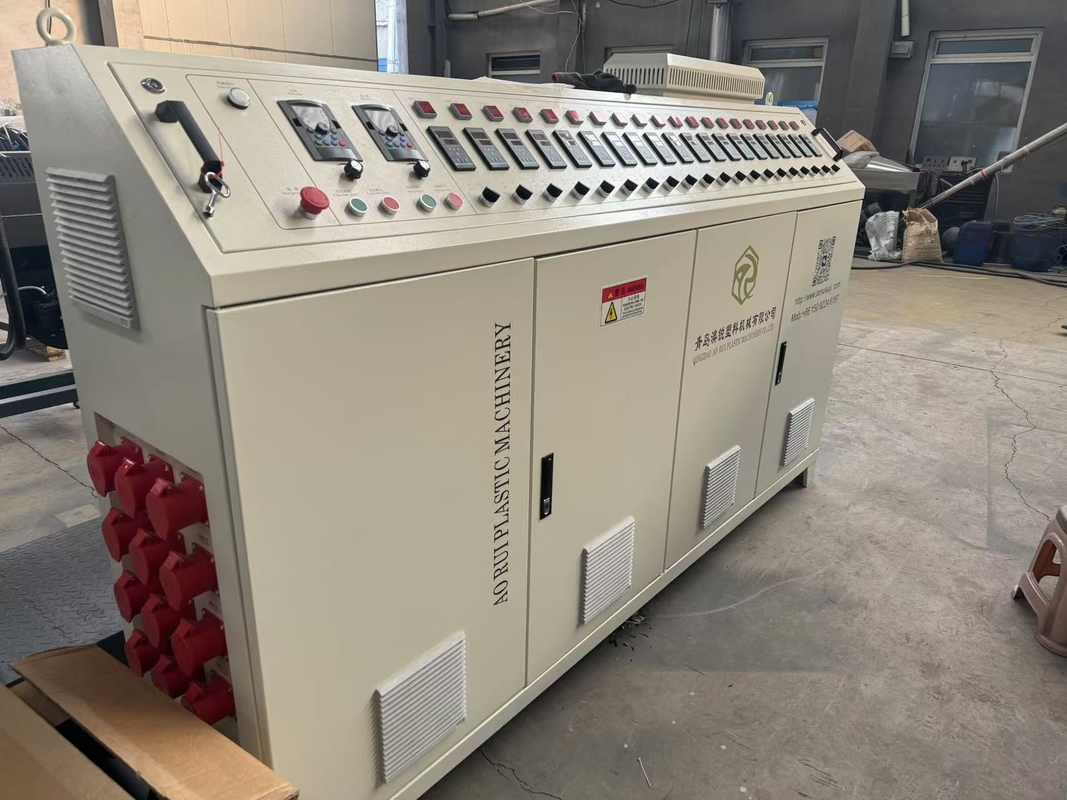

Control System
- PLC-based automation with touchscreen interface
- Real-time monitoring (speed, temperature, pressure) and fault alarms

Technical Parameters

Model/data	Pipe diameter	Extruder model	Speed	Max capacity
FE63	16-63mm	SJ65	1-12m/min	80kg/h
FE110	50-110mm	SJ75	1-8m/min	150kg/h
FE160	75-200mm	SJ90	1-5m/min	260kg/h
FE400	200-400mm	SJ120	0.5-1.5m/min	450kg/h
FE630	400-630mm	SJ120,SJ90	0.1-0.8m/min	650kg/h
FE800	630-800mm	SJ150,SJ120	0.1-0.8m/min	800kg/h
