SJ75/33 Single Screw Extruder for HDPE Pipe , PE Pipe Making Machine

SJ75/33 Single Screw Extruder for HDPE Pipe , PE Pipe Making Machine

Brand Name:	AORUI
Model Number:	SJ90/33 SJ120/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA ISO9001

Model Number:

SJ75/33

Screw Design:

Single Screw

Certificate:

CE Certificate

Condition:

New

After-sales Service:

Engineer Is Availiable To Service

Plastic Processed:

PE Resin

Port Of Lading:

Qingdao Port

Motor Brand:

Siemens

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

HDPE pipe extruder

PE pipe making machine

single screw extruder SJ75/33

Product Description

SJ75/33 Single Screw Extruder for HDPE Pipe, PE Pipe Making Machine

Product Specifications

Attribute	Value
Model number	SJ75/33
Screw design	Single screw
Certificate	CE Certificate
Condition	New
After-sales service	Engineer is available to service
Plastic processed	PE resin
Port of lading	Qingdao port
Motor brand	Siemens

Equipment Overview

The SJ90/33 HDPE pipe production line is a complete set of equipment designed for manufacturing high-density polyethylene (HDPE) pipes. It utilizes high-efficiency extrusion technology and is suitable for producing various civil and industrial pipes, including water supply/drainage pipes, gas pipes, and communication conduit pipes. Known for its high output, low energy consumption, and strong stability, this model is an ideal choice for small and medium-sized pipe manufacturers.

Machine Components

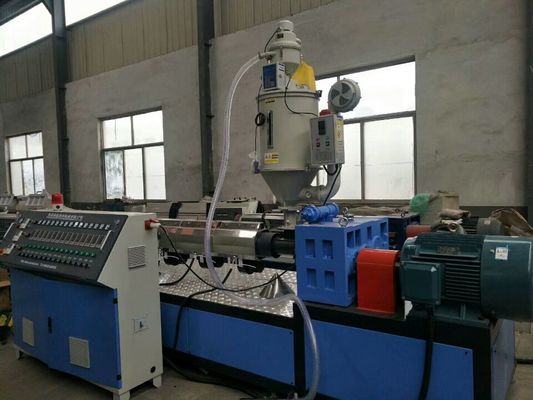

Extruder: SJ90/33 single-screw extruder with a 90mm screw diameter and a 33:1 length-to-diameter (L/D) ratio, equipped with a high-efficiency variable frequency motor for uniform plasticization and stable extrusion.
Screw Design: Barrier-type screw structure optimized for HDPE material, improving melting efficiency while reducing energy consumption.
Die: Spiral mandrel die with polished flow channels, ensuring smooth inner and outer pipe surfaces.

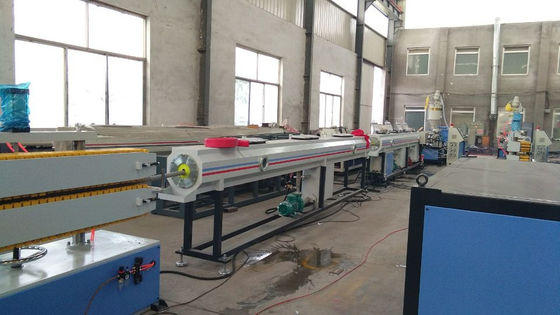

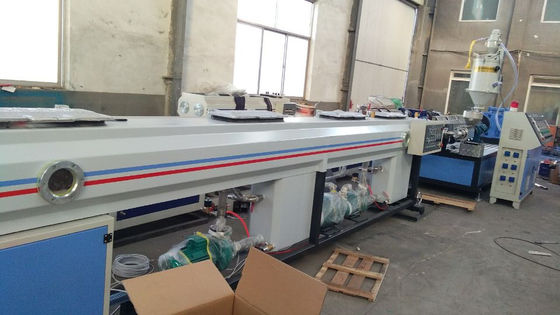

Vacuum Calibration Tank: Dual-stage vacuum calibration system with spray cooling for rapid shaping and precise roundness control.

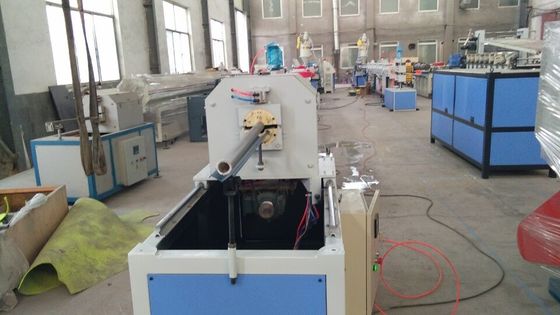

Haul-off Unit: Track-type haul-off with stepless speed adjustment for even traction.

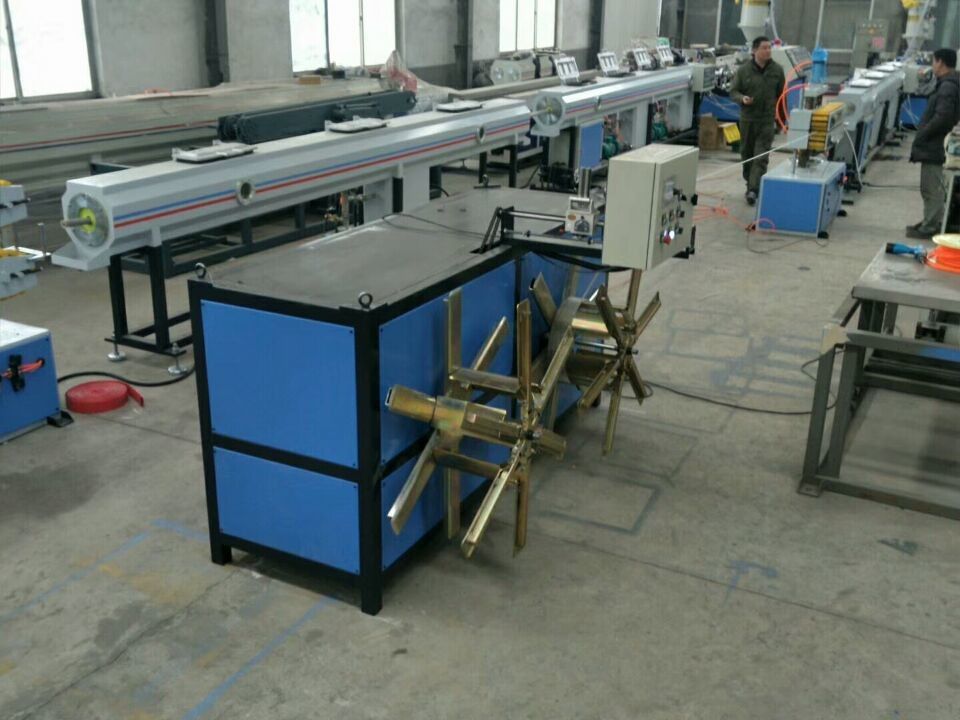

Cutting Machine: Planetary cutter for clean cuts, supporting automatic length cutting.

Technical Parameters

Model	Screw Diameter	L/D	Pipe Range (mm)	Motor Power (kw)	Total Power (kw)	Line Length (M)
PE-63	65mm	33:1	16-63	37	80	24
PE-110	65mm	33:1	75-110	55	110	30
PE-160	75mm	33:1	90-160	90	150	32
PE-250	75mm	33:1	110-250	110	200	42
PE-315	90mm	33:1	160-315	160	240	44
PE-400	90mm	33:1	200-400	185	300	50
PE-500	120mm	33:1	250-500	280	350	56
PE-630	120mm	33:1	315-630	280	480	56
PE-800	150mm	33:1	400-800	315	550	72
