High Speed HDPE Pipe Extrusion Line For Water Supply, Large-diameter HDPE PE Pipe Manufacturing Equipment

High Speed HDPE Pipe Extrusion Line For Water Supply, Large-diameter HDPE PE Pipe Manufacturing Equipment

Brand Name:	AORUI
Model Number:	SJ90/33 SJ120/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T,blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA ISO9001

Model Number:

SJ75/33

Screw Design:

Single Screw

Certificate:

CE Certificate

Condition:

New

After-sales Service:

Engineer Is Availiable To Service

Plastic Processed:

PE Resin

Port Of Lading:

Qingdao Port

Motor Brand:

Siemens

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

High Speed HDPE Pipe Extrusion Line

Large-diameter HDPE Pipe Equipment

PE Pipe Manufacturing Extrusion Line

Product Description

High Speed HDPE Pipe Extrusion Line For Water Supply, Large-diameter HDPE PE Pipe Manufacturing Equipment

Product Specifications

Attribute	Value
Model number	SJ75/33
Screw design	Single screw
Certificate	CE Certificate
Condition	New
After-sales service	Engineer is available to service
Plastic processed	PE resin
Port of lading	Qingdao port
Motor brand	Siemens

Product Overview

HDPE (High-Density Polyethylene) pipe production equipment is an automated production line specifically designed for manufacturing HDPE pipes. It is widely used in municipal water supply and drainage, gas transmission, agricultural irrigation, industrial fluid transport, and other fields.

The equipment employs advanced production processes and automated control technology to ensure the pipes exhibit excellent properties such as high strength, corrosion resistance, aging resistance, and long service life, meeting global high-standard pipe production requirements.

System Components

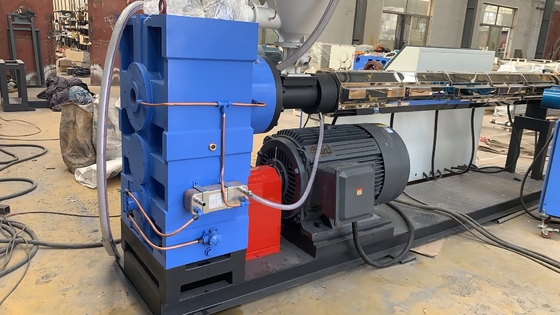

Extrusion System: Utilizes high-efficiency single or twin-screw extruders, equipped with premium electric heating rings and temperature control systems to ensure uniform plasticization and stable extrusion of HDPE raw materials. Optional forced feeding device enhances material conveying efficiency.

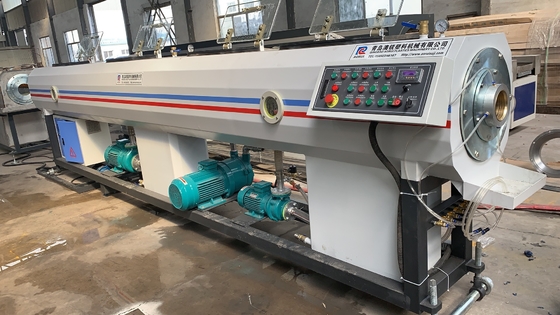

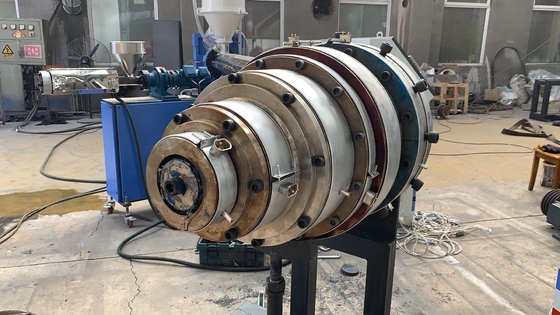

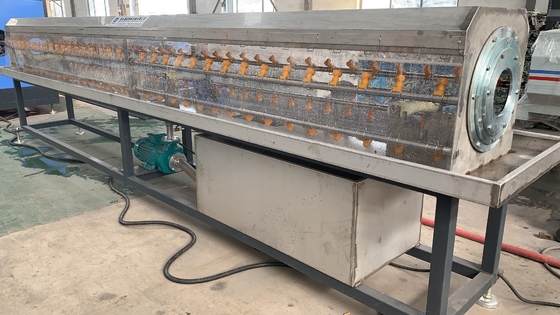

Mold & Calibration System: Precision-designed spiral or basket-type die heads ensure uniform wall thickness. Vacuum calibration tank with spray cooling system enables rapid shaping and improves dimensional accuracy.
Haul-Off Unit: Multi-track haul-off system with stepless speed adjustment provides stable and even traction, preventing deformation.
Cutting Machine: Automatic planetary cutter or synchronous saw cutter delivers clean cuts with adjustable lengths.

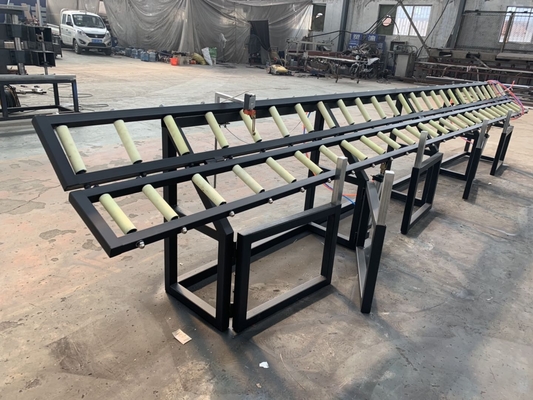

Stacking & Coiling System: Automatic turnover racks or winding coiling devices ensure efficient finished product collection.

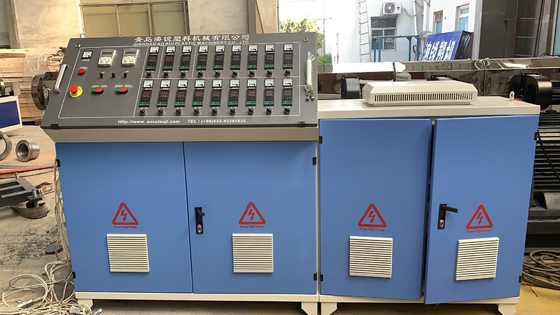

Automated Control System: PLC + touchscreen intelligent control monitors real-time parameters with fault alarms and data storage.

Technical Parameters

Model	Screw Diameter	L/D	Pipe Range (mm)	Motor Power (kw)	Total Power (kw)	Line Length (M)
PE-63	65mm	33:1	16-63	37	80	24
PE-110	65mm	33:1	75-110	55	110	30
PE-160	75mm	33:1	90-160	90	150	32
PE-250	75mm	33:1	110-250	110	200	42
PE-315	90mm	33:1	160-315	160	240	44
PE-400	90mm	33:1	200-400	185	300	50
PE-500	120mm	33:1	250-500	280	350	56
PE-630	120mm	33:1	315-630	280	480	56
PE-800	150mm	33:1	400-800	315	550	72

Equipment Display
