Automatic PE Corrugated Pipe Making Machine For Drainage Systems, SJ65/33 HDPE Corrugated Pipe Extruder Machine

Automatic PE Corrugated Pipe Making Machine For Drainage Systems, SJ65/33 HDPE Corrugated Pipe Extruder Machine

Brand Name:	AORUI
Model Number:	SJ75/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T,blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Condition:

New

Automatic Grade:

Fully Automatic

Screw Design:

Single Screw

Brand Name:

Aorui

Plastic Processed:

Warranty Time:

1 Year

Place Of Original:

China

Voltage:

380V 50HZ

Certificate:

CE Certificate

After-sales Service:

Engineer Availiable To Service

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Automatic PE pipe making machine

HDPE corrugated pipe extruder

Drainage system Pipe Extruder Machine

Product Description

Automatic PE Corrugated Pipe Making Machine For Drainage Systems, SJ65/33 HDPE Corrugated Pipe Extruder Machine

Product Specifications

Attribute	Value
Condition	New
Automatic grade	Fully automatic
Screw Design	Single screw
Brand Name	Aorui
Plastic processed	PE
Warranty time	1 year
Place of original	China
Voltage	380V 50HZ
Certificate	CE certificate
After-sales service	Engineer available to service

Product Overview

The SJ65/33 HDPE corrugated pipe production line is a high-efficiency, stable, and professional equipment specifically designed for manufacturing high-density polyethylene (HDPE) single-wall corrugated pipes, suitable for small-diameter pipes ranging from Φ16mm to Φ40mm.
Featuring modular design and coordinated operation of components, this equipment ensures the production of corrugated pipes with excellent properties such as high strength, corrosion resistance, and impact resistance. It is widely used in municipal drainage, telecommunication cable protection, agricultural irrigation, and other fields.

Equipment Components & Features

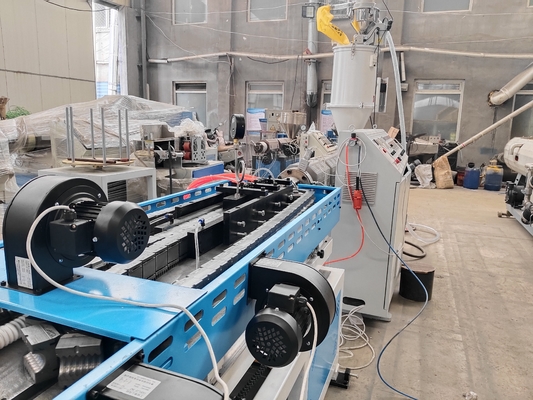

Extrusion System (SJ65/33 Single-Screw Extruder)

- Screw Specifications: 65mm diameter, 33:1 length-to-diameter ratio, ensuring uniform plasticization and stable extrusion.

- Temperature Control System: Utilizes PID precise temperature control with segmented heating for complete material melting.

- Energy Efficiency: Optimized screw design reduces energy consumption while improving production efficiency.

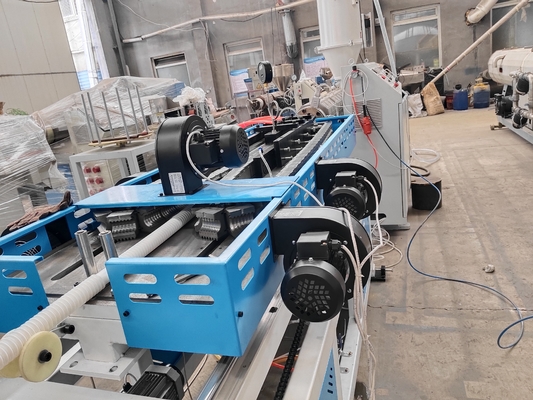

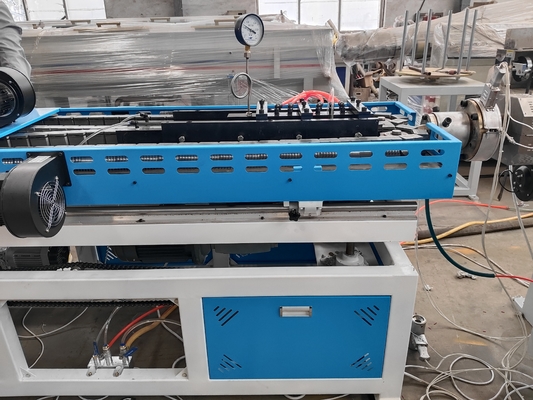

Molding Module (Corrugated Pipe Molding Machine)

- Modular Design: Allows quick replacement of molding modules for different specifications (16mm/20mm/25mm/32mm/40mm).

- Vacuum Calibration: Ensures uniform corrugation shape, consistent wall thickness, and smooth inner/outer surfaces.

- High-Strength Structure: Made of high-quality alloy steel for wear resistance and long-term continuous production.
Cooling System

- Spray Water Cooling + Vacuum Calibration: Efficient cooling prevents pipe deformation and enhances dimensional accuracy.

- Water Circulation System: Energy-saving and eco-friendly, reducing water consumption.
Haul-Off Unit

- Variable Frequency Speed Control: Ensures smooth traction with adjustable speed for different production needs.

- Automatic Centering: Maintains pipe straightness, preventing eccentricity or bending.
Cutting Machine (Optional)

- Automatic Length Cutting: Precise cutting to set lengths with clean edges.

- Pneumatic/Electric Drive: Easy operation with low maintenance costs.

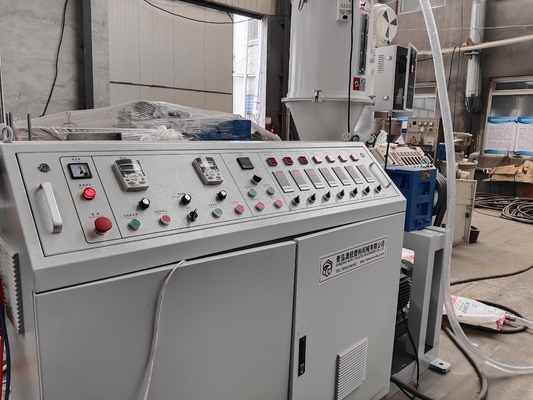

Control System

- PLC + Touchscreen: Intelligent control with real-time monitoring of temperature, pressure, speed, and other key parameters.

- Fault Alarm: Automatic diagnostics for abnormalities, minimizing downtime.

Technical Parameters

	Common forming type	High speed forming type
Extruder	SJ45 SJ65	SJ45 SJ65
Forming system	Mould turn on table	Mould turn in channel
Mould	Connect by chain 38-72 pairs	No chain Connect 44-72 pairs
Speed	5-12 meters/minute	5-20 meters/minute
Hose diameter	6-65mm(OD)	6-65mm(OD)
