Fully Automatic HDPE Corrugated Pipe Extrusion Line , Cost-Effective HDPE Corrugated Pipe Manufacturing Line

Name: Fully Automatic HDPE Corrugated Pipe Extrusion Line , Cost-Effective HDPE Corrugated Pipe Manufacturing Line
Brand: QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1
SKU: SJ65/33
Availability: InStock

Brand Name:	AORUI
Model Number:	SJ65/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T,blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Model Number:

SJ65/33

Plastic Processed:

PE Resin

Screw Design:

Single Screw

Automatic Grade:

Fully Automaitc

Inverter Brand:

ABB

Motor Brand:

Siemens

Place Of Original:

China

Voltage:

380V 50HZ

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Fully Automatic HDPE Pipe Extrusion Line

Cost-Effective Corrugated Pipe Line

HDPE Corrugated Pipe Manufacturing Line

Product Description

Fully Automatic HDPE Corrugated Pipe Extrusion Line

Cost-Effective HDPE Corrugated Pipe Manufacturing Line

Product Specifications

Attribute	Value
Model number	SJ65/33
Plastic processed	PE resin
Screw design	Single screw
Automatic grade	Fully automatic
Inverter brand	ABB
Motor brand	Siemens
Place of origin	China
Voltage	380V 50HZ

Product Overview

This production line is designed for the efficient manufacturing of polyethylene (HDPE) double-wall corrugated pipes, featuring high output, excellent stability, and energy-saving & eco-friendly performance.

The fully automated system includes:

Single-screw extruder (SJ65/30)
Corrugated pipe die
Forming modules
Mold
Cutting machine
Double-station winding system

Key Features

SJ65/30 Single-Screw Extruder

High-Efficiency Plasticizing: Optimized screw design with a 30:1 L/D ratio ensures complete melting and stable extrusion of HDPE material.
Energy-Saving Temperature Control: Multi-zone PID temperature control system (±1°C accuracy) reduces energy consumption while maintaining extrusion quality.

Corrugated Pipe Die Head

Easy Size Change: Quickly change molds when different pipe sizes are needed.

Forming Modules & Molding Machine

Modular Molds: Lightweight aluminum alloy modules enhance cooling efficiency, producing clear and aesthetically pleasing corrugations.
Vacuum Calibration: Negative pressure adsorption combined with water cooling ensures roundness tolerance ≤0.1%, with forming speeds of 8-15 meters/minute.

Automatic Cutting Machine

Servo-Driven: High-precision servo motor controls cutting length (±1mm error), delivering smooth and burr-free cuts.
Intelligent Synchronization: Operates in sync with the production line, supporting both fixed-length and manual cutting modes.

Dual-Station Winding System

Efficient Switching: Dual-turret design enables continuous winding without downtime, boosting productivity by over 30%.
Tension Control: Magnetic powder brake automatically adjusts winding tension to prevent pipe deformation or loose coils.

Technical Parameters

Model	Pipe Diameter (mm)	Extruder Model	Output (kg/h)	Total Power (kw)	Module No. (pairs)	Production Line Speed (m/min)
CMDB-12	6-12	SJ-45	40-60	16	42	6-12
CMDB-32	16-32	SJ-50	50-70	23	48	6-12
CMDB-63	20-63	SJ-65	60-100	38	56	4-8
CMDB-80	50-80	SJ-75	70-130	64	72	3-8

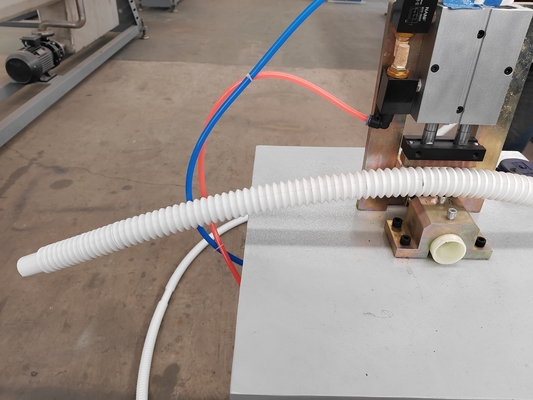

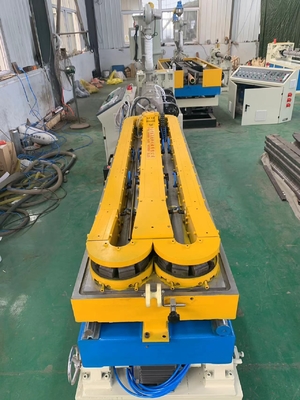

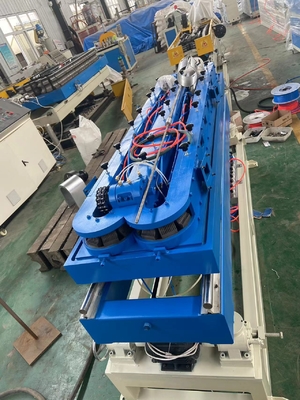

Machine Display
