High Speed HDPE Single Wall Corrugated Pipe Production Line For Cable Protection

High Speed HDPE Single Wall Corrugated Pipe Production Line For Cable Protection

Brand Name:	AORUI
Model Number:	SJ75/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T,blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Brand Name:

Aorui

Certificate:

CE Certificate

Automatic Grade:

Fully Automatic

Port Of Lading:

Qingdao Port

Place Of Original:

China

Motor Brand:

Siemens

Voltage:

380V 50HZ

After-sales Service:

Engineer Availiable To Service

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

HDPE single wall corrugated pipe production line

high speed cable protection pipe line

plastic pipe extrusion line with warranty

Product Description

High Speed HDPE Single Wall Corrugated Pipe Production Line For Cable Protection

Description of HDPE Corrugated Pipe Making Machine:

Our SJ65/30 production line is a professional, automatic, and high-efficiency machine. It is specially designed to make high-quality HDPE single-wall corrugated pipes from 12mm to 63mm in diameter.

This machine is stable, easy to operate, and perfect for making pipes used to protect communication cables, electrical wires, and for agricultural drainage. It helps you start a profitable business with a fast return on your investment.

Machine details:

1. High-Quality Single Screw Extruder: The Heart of the Machine

1)Strong Screw and Barrel: Made from special hardened alloy steel. Very durable and resistant to wear, perfect for HDPE material. Ensures long life and stable production.

2)Excellent Melting: The 30:1 L/D ratio melts the plastic completely and evenly. This gives you a smooth pipe with consistent wall thickness.

3)Precise Temperature Control: Each heating zone has accurate temperature control with air cooling. This keeps the temperature perfect for HDPE, ensuring high-quality output.

2. Precision Mold: For Perfect Pipe Shape

1)Dual-Layer Crosshead: This special mold makes the smooth inside wall and the corrugated outside wall at the same time. The design ensures the plastic flows evenly for a perfect pipe.

2)Easy to Change: The mold is designed for easy size changeover. You can quickly switch from making one pipe size to another.

3)Smooth Surface: The inside of the mold is polished to a mirror finish. This makes the inside of your pipe very smooth, making it easy to pull cables through.

3. Corrugator and Cooling Unit: For Strong Pipe Structure

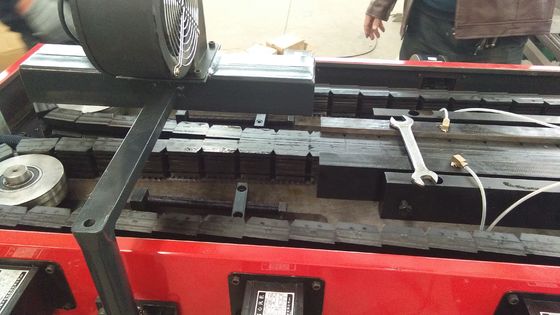

1)Durable Mold Blocks: The corrugator uses strong iron mold blocks. They are precisely machined to form the perfect corrugated (ring) shape on the pipe.

2)Fast Vacuum Cooling: A vacuum system sucks the hot plastic onto the mold blocks to form the shape. The water spray system then cools it down quickly, making the pipe strong and rigid.

Technical parameters:

Model	GSJ-65/33
Extrude central height	1100mm
High efficiency screw
Diameter	65mm
L/D	33:1
Material	38CrMoAlA
Surface Treatment	Nitrided and Polished
Barrel
Material	38CrMoAlA
Inner Surface treatment	Nitrided, ground
Heating method	By ceramic
Heating control zones	zones
Heating power	1.5 KW
Cooling system	By blower fan
Cooling zones	4zones
Cooling power	0.2KW/zone
Gearbox
Material of the house	QT200
Gear type	Helical gears
Material of the gear	20CrMnTi
Heat treatment of the gear surface	Quenching
Material of the axes bearings	40Cr Imported high quality bearing
Main Motor	22KW

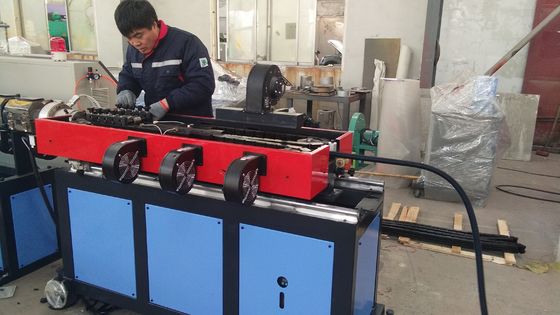

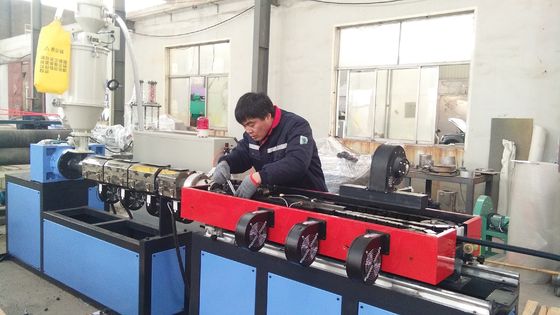

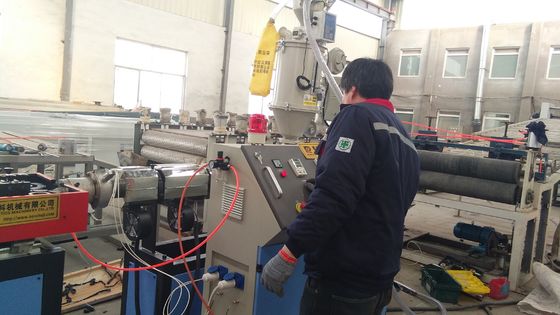

Machine pictures:
