PMMA Multi - Layer Plastic Sheet Extrusion Machine For Stationary PS Sheet Machinery

Brand Name:	AORUI
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Product Type:

Plastic Sheet

Temperature Controlling Systerm:

Advanced Systerm

Voltage:

380v/50hz

Power:

37-75KW

Application:

Sheet

Automatic Grade:

Full Automatic

Cutting Plate:

Right Angle

Process:

Extrusion

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

plastic sheet production line

plastic sheet extruder machine

Product Description

PMMA Multi-Layer Plastic Sheet Extrusion Line for Stationary , PS Sheet Machinery

QUICK DETAIL :

1. Transportation: such as steamship, aeroplane, carriage, traine compartment, roof shed, case core layer, inner upholster, etc.

2. Architecture: such as building wall board, decoration board, housing, office, public building interlayer, commercial decoration shelf, non-dust room board, ceiling plate, etc.

3. Advertisement: such as screen printing, computer lettering, ad board, etc.

4. Industry: such as chemical industry antisepticizing project, thermoforming, for refrigeratroy, for temperature keeping, for environment protection, etc.

Description:

PP/PE/ABS/PS/HIPS plastic sheet production line is capable of continuously producing mono-layer or multi-layer PP/PE/ABS/PC/PS/HIPS/PMMA sheet and plate with the width less than 3000mm and thickness of 0.25-30mm .The products are widely used in the fields of stationery,lunch box ,jelly cups ,beverage cups,food container,etc.

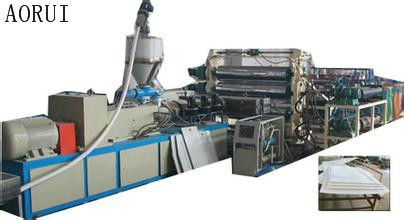

The line includes many machine parts ,such as :extruder ,screen changer and mould,three-roller calendaring machine,bracket of cooling roller,horizontal cutting machine and the winder.

Applications:

1. Specially designed screw and advanced temperature controlling system ensure the good plasticization, high output and stable extruding.

2. Good plasticization and even flow maintain even,clean and bright sheets.

3. manufacturing of high quality drinking cups, jelly cups, food boxes and other plastic containers by thermoforming process and suctio n process methods.

Specifications:

Model	Unit	TYJB-75	TYJB-90	TYJB-110
Material applied	PP,PS,PE
Width of sheet	mm	≤600	≤750	≤1100
Thickness of sheet	mm	0.2-1.6	0.2-2.0	0.2-2.0
Extrusion capacity	kg/h	60-100	100-150	150-200
Diameter of screw	mm	75	90	105
Installed capacity	kw	75	90	120

Competitive Advantage:

1. good quality

2. have the spot good.
3. Can be shiped right now
