PVC Plastic Sheet Extrusion Line For Medcine PVC Imitation Sheet Plastic Extruder

PVC Plastic Sheet Extrusion Line For Medcine PVC Imitation Sheet Plastic Extruder
PVC Plastic Sheet Extrusion Line For Medcine PVC Imitation Sheet Plastic Extruder PVC Plastic Sheet Extrusion Line For Medcine PVC Imitation Sheet Plastic Extruder

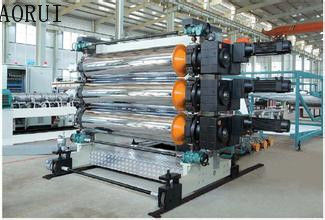

Large Image :  PVC Plastic Sheet Extrusion Line For Medcine PVC Imitation Sheet Plastic Extruder

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

PVC Plastic Sheet Extrusion Line For Medcine PVC Imitation Sheet Plastic Extruder

Description
Power: 55-120KW Voltage: 220v/380v ,50/60HZ
PVC Sheet Extrusion Line: Professional Design Type: Plastic Production Line, Plastic Extrusion Line
Screw Design: Twin Screw Product Type: PVC Sheet
High Light:

plastic sheet extrusion machine

,

plastic sheet extruder machine

PVC Plastic Sheet Extrusion Line for Medcine , PVC Imitation Sheet Plastic Extruder







QUICK DETAIL :





1. Safety, insulation, flame retardant, corrosion resistance, acid and alkali resistance,

2. Green environmental protection, does not contain formaldehyde,non-toxic harmless, non radioactive pollution,







Description:



    The screw was designed special mixed material and high plastic so that it flux plastic, color and luster equality, output heighten;



Clothes Model DIE was designed special double throttle, it adjust thickness of sheet exactly;

Temperature control±1°C, it can exactitude control the course of plastic and thickness and unknit of sheet;



Molding unit adopt horizontal and vertical, it provide more choice in the operate course of thick sheet, sheet metal by fluctuation at liberty and increase quality of sheet;

Adjusting thickness of sheet by screw and oil pressure pressing wheel double direction so as to achieve thickness exactly;



Pressing double loop cooling system, concert die temperature controller exactly control pressing wheel temperature so as to achieve unknit and thickness equally;



Cutter: length and quantity of sheet achieve nicely;











Applications:



1. fire-resistence, high quality, low cost, high transparent,

2. good surface, no spot, less water wave, high strike resistence,

3. Waterproof, moisture-proof, water is not deformation, non slip PVC material,strong anti slippery , can eliminate the elderly,children's anxiety.







Specifications:



Model

SJP120/21-1500

SJZ85/156-1150

Product width

1400mm

1050mm

Product thickness

0.6-1.5mm

0.5-3mm

Extruder specification

SJP120/21

SJZ85/156

Main motor power

90KW

75KW

Max. Extrusion capacity

350Kg/h

300Kg/h





Competitive Advantage:



1. Any inquires will be replied in the first time.

2. High quality products, competitive price, fast lead time.

3. Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.
