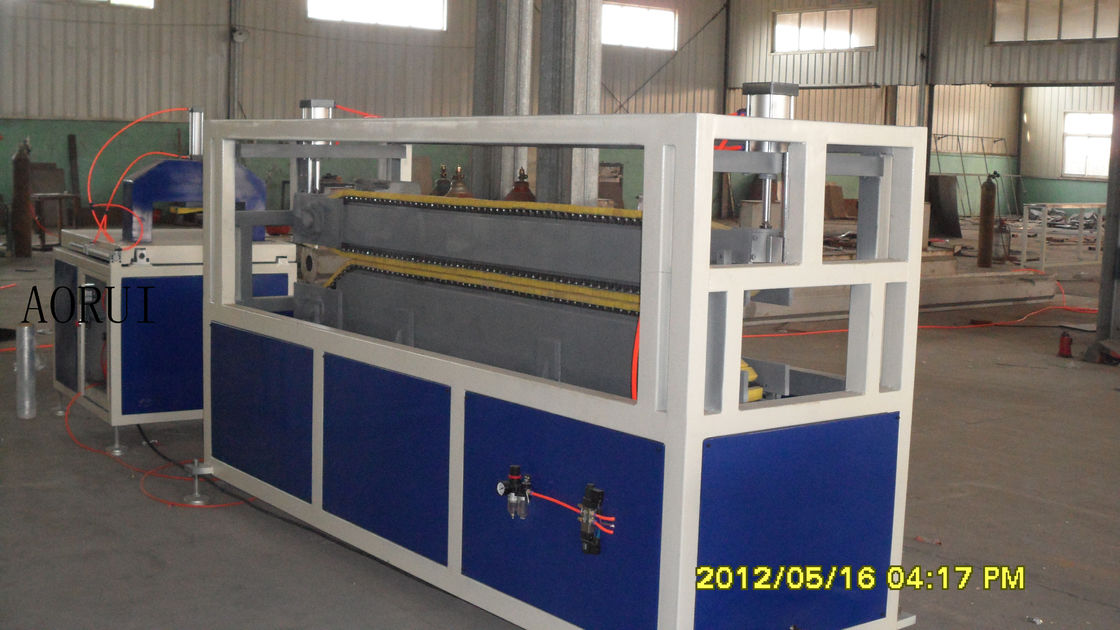

LDPE Sweage Plastic Pipe Extrusion Line

Brand Name:	AORUI
Model Number:	SJ65
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

Process:

Extrusion

Application:

Pipe

Certificate:

ISO9001

Machine Name:

Plastic Pipe Extruder

Application:

Irrigation,drainage,etc

Type:

PP/PE Irrigation Pipe Machinery

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

plastic pipe extrusion machine

plastic pipe production line

Product Description

PP / PE Irrigation Plastic Pipe Extrusion Line , LDPE Sweage Pipe Plastic Machinery

Quick detail:

1. PE pipe with the feature of toughness and low maintenance cost, make it the best option.

2. used in industrial wastewater, sewage discharged pipe with low costs and less maintenance costs.

3. PE pipe with sleek inside, great flow, flexible cross road construction, good impact resistance property, it is the ideal tool for agricultural irrigation.

Description:

This extruder equipped with barrier unit and mixing structure, the barrel is new style grooves.

All of these offer good plastification and mixing effect.

Special design of basket die head of for HDPE large diameter pipe with thick wall offer lower

temperature, good mixing, lower pressure of cavity, and stable production.

Special design for sizing and cooling system by using film and water to cool HDPE material,

which can fit for the requirement of HDPE(PP, ABS). And the design can ensure the stability of diameter and roundness when producing

the pipe with thick wall.

Special design vacuum sizing tank can ensure the stability of size and roundness, Speed

controllers are used in extruder, haul-off to offer stability and precision.

Specifications:

Diameter Scope	4.5-9	9-32	32-50
Main Extruder	SJ-30	SJ-45	SJ-65
L/D	30:1	30:1	30:1
Output kg/h	10	40	80
Main Motor Power kw	4	11	18.5
Corrugator Power kw	1.1	1.5	1.5
Mould Block Pairs	42	44	44
Cooling Type	Water and air cooling
Linear Speed (m/min)	6-10	8-12	8-15
Counting Type	Sensing counting
Winding Type	Automatic/Manual

Applications:

1. Single screw extruder, very suitable to process PE resin with high capacity.
2. The production line adopts reasonable design, absorbing safe producing technology,

Obtaining CE certificate.
3. Diameter range is 63mm-800mm, which can be changed into inch standard to meet clients special requirement

Competitive Advantage:

1. Large output
2. High precision
3. competive price
4. High quality
