Multilayer PE Cable Plastic Pipe Extrusion Line , City Gas PP Drainage Pipe Machine

Brand Name:	AORUI
Model Number:	SJ65
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

Product Type:

Plastic Pipe

Cetificate:

CE,ISO9001

Feature:

Lower Cost

Type:

HDPE Pipe Production Line

Pipe Size:

According To Customer

USAGE:

Water Supply Pipe,drainage,etc

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

plastic pipe extrusion machine

plastic pipe production line

Product Description

Multilayer PE Cable Plastic Pipe Extrusion Line , City Gas PP Drainage Pipe Machine

Quick detail:

1. friendly man-machine interface makes easy control and stable performance
2. developed highefficiency extruder system, make the wall thickness well and smooth surface
3. newly developed rolled strips molding system
4. stainless thermostatic cooling system

Description:

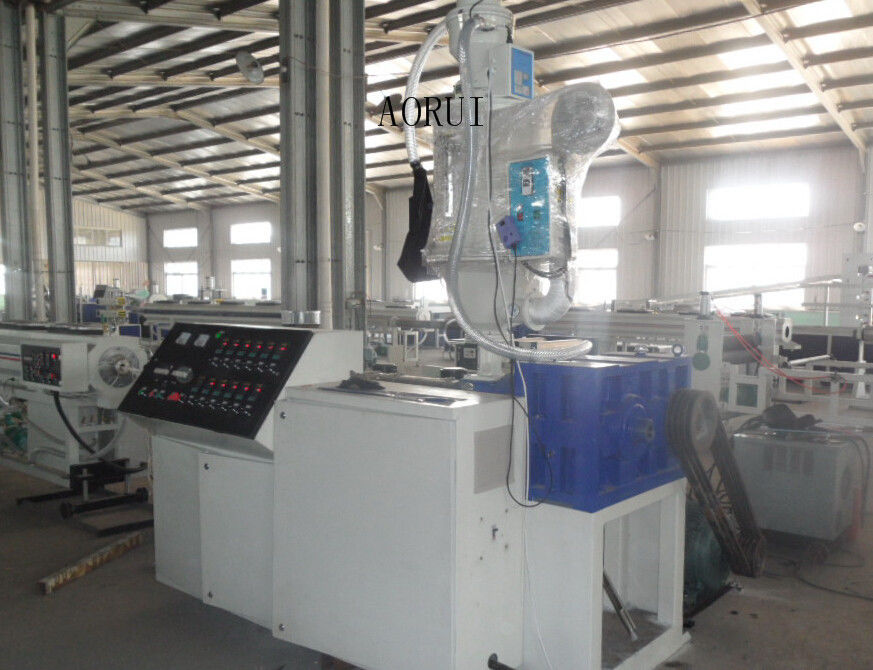

The main machine adopts screws specially used for polyolefin. It possesses features of high production, good plasticization and stable extruding.

Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.

Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.

Caterpillar of the hauling machine adopts anti-abrasion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

Specifications:

Diameter Scope	4.5-9	9-32	32-50
Main Extruder	SJ-30	SJ-45	SJ-65
L/D	30:1	30:1	30:1
Output kg/h	10	40	80
Main Motor Power kw	4	11	18.5
Corrugator Power kw	1.1	1.5	1.5
Mould Block Pairs	42	44	44
Cooling Type	Water and air cooling
Linear Speed (m/min)	6-10	8-12	8-15
Counting Type	Sensing counting
Winding Type	Automatic/Manual

Applications:

1. the latest water removal device ,which can dry the tape surface quickly.
2. high-precision mechanical punching system.the hole is continuous and precision.
3. double station automatic winding machine can automatic cutting, changing,winding and wiring.

Competitive Advantage:

1. We have own research and development equipment, so our product prices are very competitive
2. Our high quality but low prices product have gained market and public praise from domestic and
overseas clients
3. We have very good and comprehensive after-sales service
