Product Details:
|
| PROCESS: | Extrusion Machine | Export Country: | Europe,america,etc |
|---|---|---|---|
| Product Type: | Granule | Inverter: | ABB |
| Type: | Plastic Granule Extrusion Line | Feature: | High Capacity |
| Voltage: | 380V | Material: | Pp/pe |
| High Light: | Plastic Recycling Machine,Plastic Pelletizing Machine |
||

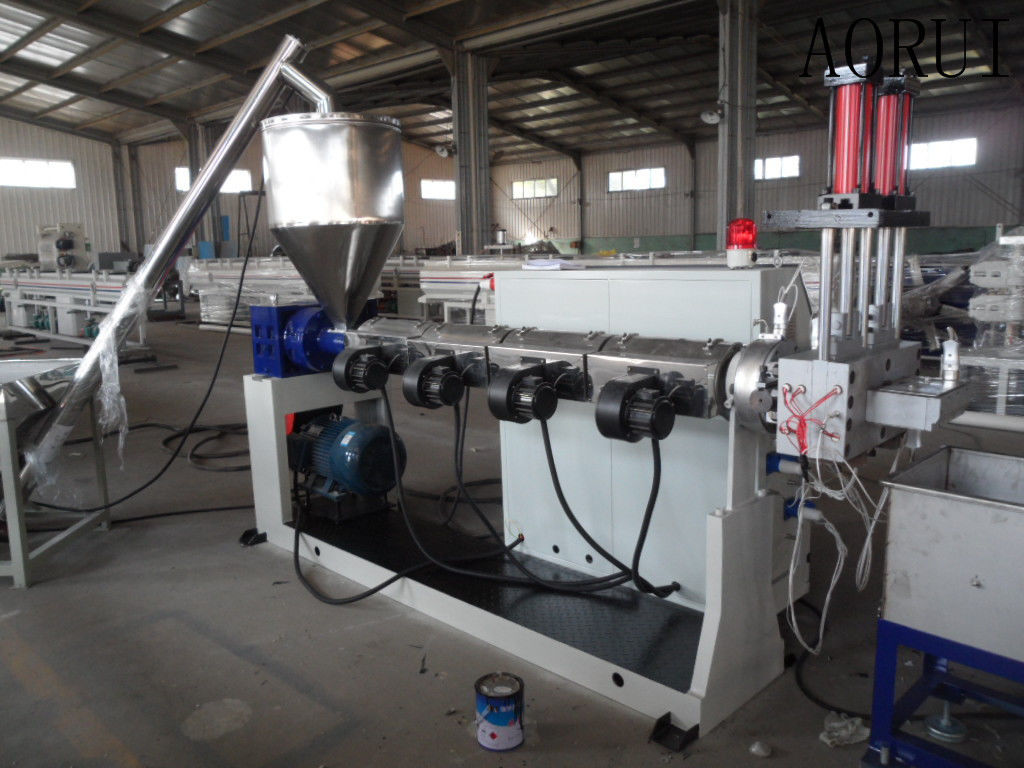

Recycling Plastic Granulating Machine For PP / PE Bottle Flakes Pelletizer
QUICK DETAIL :
1. High productivity, easy operation
2. Applicable for wet, dirty and lightweight materials
3. Material shapes: film,bag, flake
4.Material types: woven bag,film (rolls, loose,bundled),agricultural film waste,foamed plastics(EPS) and raffia.
Description:
1. Plastic granules machine mainly use for making PP / PE films non woven bags to be pallet directly.
2. This machine is crushing, agglomerate and granulating all-in-one. Film feeds by belt conveyor to cutting compaction system, no need crusher to crushing film into pieces.
3. Our machines capacity is 1-700kg/h , we also can according to customer's requirement to choose most suitable machines.
4. It is widely used in the treatment system for urban consumer waste. waste plastics; free training for producing technology of various waste plastics), free installation and adjustment with home service for all customers within China boundary.
5. Metering feeders are equipped with single screw,twin screw,hollow screw,forced-feeding,side feeding,liquid-adding system,etc. The screw elements and then kneading blocks are designed accurately,by precise processed, agile combination,with interchangeability, which can fulfill efficient self-cleaning,transmission,compounding,pressure-forming.
Applications:
1. Screw and barrel are made of 38CrMoAlA, inlet mouth treated with special alloy:very strong and long life.
2. Easy opreation: it has automatic constant temperature control and stable performance. After adjusting well ,2 or 3 workers are encough to run this machine, to feed the materials and change pellet receiver.
3. Low cost in using after redesign:now this kind machine is more economic in electric power source and also water.In the long working life of this machine,it can save mang source energy.
4. High output,long operating life and lownoise,it's the ideal waste plastic regenerative pelletizer machine for you!
Specifications:
|
Model |
Screw diameter |
L/D |
Screw rotation speed (r/min) |
Max. extruding |
Motor power |
Heating zone |
|
SJ-45 |
45 |
33:1 |
73 |
60 |
28/35 |
3 |
|
SJ-50 |
50 |
33:1 |
90 |
120 |
37/45 |
3 |
|
SJ-65 |
65 |
33:1 |
90 |
220 |
55/75 |
4 |
|
SJ-75 |
75 |
33:1 |
90 |
350 |
90/110 |
4 |
|
SJ-90 |
90 |
33:1 |
90 |
500 |
160/185 |
5 |
|
SJ-120 |
120 |
33:1 |
80 |
750 |
280/315 |
5 |
|
SJ-150 |
150 |
33:1 |
80 |
1000 |
355/385 |
5 |
Competitive Advantage:
1. We provide good pre-sales and after-sales service.
2. We provide service for consulting on end product analysis and facilities selection.
3. Our engineers can availiable to go to aborad to service , installed the machine and trainning the workers.
