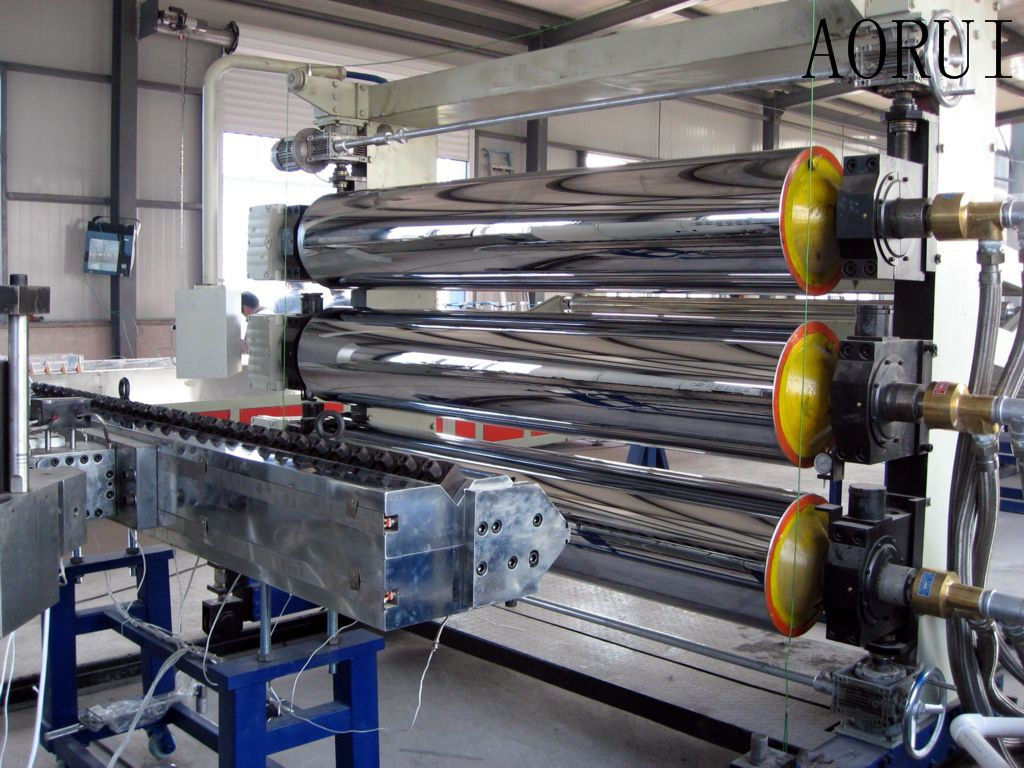

PP / PE Stationary Plastic Sheet Extrusion Line

Brand Name:	AORUI
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Temperature Controlling Systerm:

Advanced Systerm

Voltage:

380v/50hz

Power:

37-75KW

Application:

Sheet

Automatic Grade:

Full Automatic

Cutting Plate:

Right Angle

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

plastic sheet extrusion machine

plastic sheet production line

Product Description

PP / PE Stationary Sheet Extrusion Line HIPS Thermoforming for Package

QUICK DETAIL :

1. Bright surface of the pressing rollers
2. Equal temperature of the roller surface
3. Clean, bright, equal thickness sheet produced,
4. Select different plastic to produce the compound sheet with different colors according to different products.

Description:

This machine is used to produce PP/PS plastic sheet rolls for thermoforming machine and vacuum forming machine, which is used for making disposable plastic water drinking cups, juice cups, tea cups, milk cups, ice cream cups, yogurt cups, jelly cups, bowls, food containers, lids, flowerpot, seeding trays, etc varous packages.

T-die is made of alloy steel with nitrogen transformation, which guarantees the strength and hardness

for fine processing. And its hydromatic transmission filter enables proper processing.

Good plasticization ensures the evenness and smoothness of the plastic sheet.

It is suitable to use PP, PS, PE and HIPS for the manufacturing of high quality drinking cups and food storage boxes by pressure heating process and suction process methods

Applications:

1. Mainly used to produce PP, HIPS, GPPS, PE sheet and other packing material
2. Big ratio of length and diameter for the screw of the extrusion machine
3. Good forming effect, equal thickness of sheet and same running speed
4. Advanced hydraulic pressure, high speed net changing fittings without stopping the machine

Specifications:

Model	Unit	TYJB-75	TYJB-90	TYJB-110
Material applied	PP,PS,PE
Width of sheet	mm	≤600	≤750	≤1100
Thickness of sheet	mm	0.2-1.6	0.2-2.0	0.2-2.0
Extrusion capacity	kg/h	60-100	100-150	150-200
Diameter of screw	mm	75	90	105
Installed capacity	kw	75	90	120

Competitive Advantage:

1. Convenient operation and excellent function
2. Improve the production efficiency
3. Clean, bright, equal thickness sheet produced,
