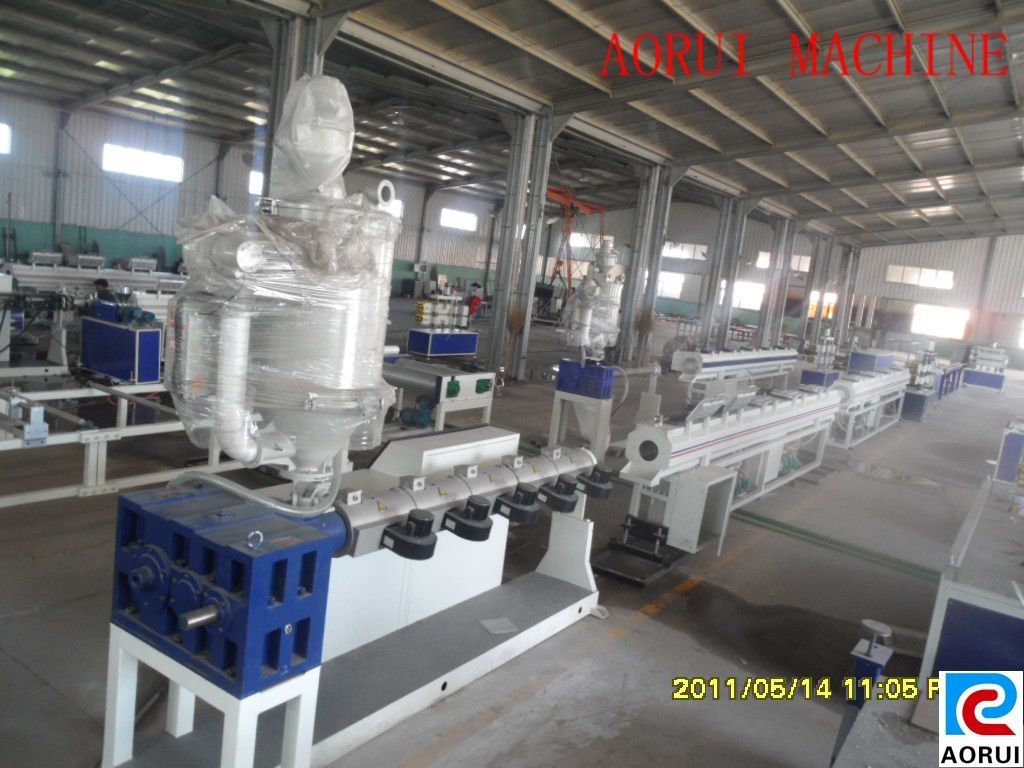

PVC Plastic Pipe Production Line For Drainage Pipe Extrusion

Brand Name:	AORUI
Model Number:	SJSZ65
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA

Plastic Processed:

PVC

Type:

Plastic Production Line, Plastic Extrusion Line

Screw Design:

Double Screw

Automatic Grade:

Full Automatic

Application:

Pipe

Weight:

Depends

Place Of Origin:

Shandong , China (Mainland)

Packaging Details:

Fumigationwood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per month

Highlight:

plastic pipe extruder machine

plastic pipe production line

Product Description

PVC Plastic Pipe Production Line For Drainage Pipe Extrusion

Quick detail:

1 . The main machine adopts screw specially used for polyolefin.

2 . Equipped with auto vacuum charger and auto constant temperature dryer hopper .

3 . it possesses features of high production, good plasticization and stable extruding.

Description:

The working process of PVC conduit pipe making machine:

High efficiency PP-R,HDPE single pipe and dual-strand pipe production line are widely used in the uptown apartment and village water supply and drainage.
Feature and advantages:

This production line aim at the characteristic of the PP-R and HDPE pipes. This line adopts our own SJ series high efficiency single screw extruder equipped with the Siemens PLC controlling system. It can realize the whole line automatic controlling of high capacity , stable extruding with the suitable changing of different units could realize the production job of PE-RT,PEX ,PB pipe.

Specifications:

Main Technical Parameters
MODEL	PVCG-110	PVCG-160	PVCG-250	PVCG-315	PVCG-400	PVCG-630
MATCHED EXTRUDER	SJZ51/105	SJZ65/132	SJZ65/132	SJZ80/156	SJZ80/156	SJG92/188
OD RANGE(mm)	50-110	50-160	75- 250	110-315	200-400	315-630
LENGTH OF VACUUM CALIBRATOR TANK(mm)	6000	6000	6000	6000	6000	6000
HAUL SPEED(m/min)	0.6-6	0.5-5	0.4-4	0.3-3	0.2-2.5	0.2-1.5
INSTALLED POWER(kw)	67	85	95	125	135	255
TOTAL LENGTH9(mm)	17000	18000	20000	20500	28000	30000

Applications:

It is mainly used to produce PVC conduit pipe.

The PVC Fiber Enhancing Soft Pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrgation , civil application ( solar energy water heater , gas - jar ) , also it can be used in irrgating garden and lawn .

Competitive Advantage:

1 . First class pipe die was designed with many years experience

2 . Perfert twin pipe vacuum sizing system ;

3 . Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device ;

4 . advanced technology and better quality
