Product Details:
|
| Place Of Origin: | Shandong , China (Mainland) | Model Number: | SJSZ65 |
|---|---|---|---|
| Plastic Processed: | PE , PP , PP - R | Screw Design: | Single Screw |
| Application: | Pipe | Condition: | New |
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||

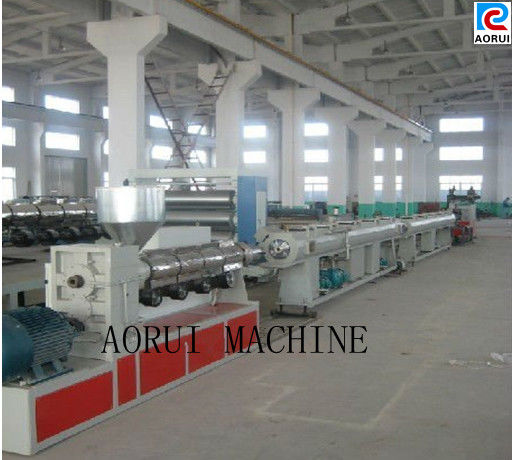

PE / PP / PERT Plastic Pipe Extrusion Line , Single Screw Water Pipe Extrusion Machinery
Quick detail:
1 . Specially designed for high ouput , adopt advancest technolog
2 . Flexible design, stable performance ,sample machine in workshop
Description:
The working process of PVC conduit pipe making machine:
1 .This production line has production capacity of churning out φ16mmφ160mm PPR pipe continuously with assembling the special high-speed single screw extruder .
2 . which is distinguishingly designes with co-extrusion die head,the production speed can reach 20m/min.
Specifications:
|
Main Technical Parameters |
||||||
|
MODEL |
PVCG-110 |
PVCG-160 |
PVCG-250 |
PVCG-315 |
PVCG-400 |
PVCG-630 |
|
MATCHED EXTRUDER |
SJZ51/105 |
SJZ65/132 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJG92/188 |
|
OD RANGE(mm) |
50-110 |
50-160 |
75- 250 |
110-315 |
200-400 |
315-630 |
|
LENGTH OF VACUUM CALIBRATOR TANK(mm) |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
HAUL SPEED(m/min) |
0.6-6 |
0.5-5 |
0.4-4 |
0.3-3 |
0.2-2.5 |
0.2-1.5 |
|
INSTALLED POWER(kw) |
67 |
85 |
95 |
125 |
135 |
255 |
|
TOTAL LENGTH9(mm) |
17000 |
18000 |
20000 |
20500 |
28000 |
30000 |
Applications:
Conveying the hot and cold water,central heating, and floor heating.
Competitive Advantage:
1 . Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device
2 . First class pipe die was designed with many years experience
3 . Special single screw extruder for polyolefin , having high extruding velocity and effective plasticization .
