Product Details:
|
| Place Of Origin: | Shandong, China (Mainland) | Plastic Processed: | PVC |
|---|---|---|---|
| Screw Design: | Double Screw | Automatic Grade: | Higher Automation |
| Application: | Sheet | Condition: | NEW |
| After-sales Service Provided: | Engineers Available To Service | ||
| High Light: | plastic sheet extrusion machine,plastic sheet production line |
||

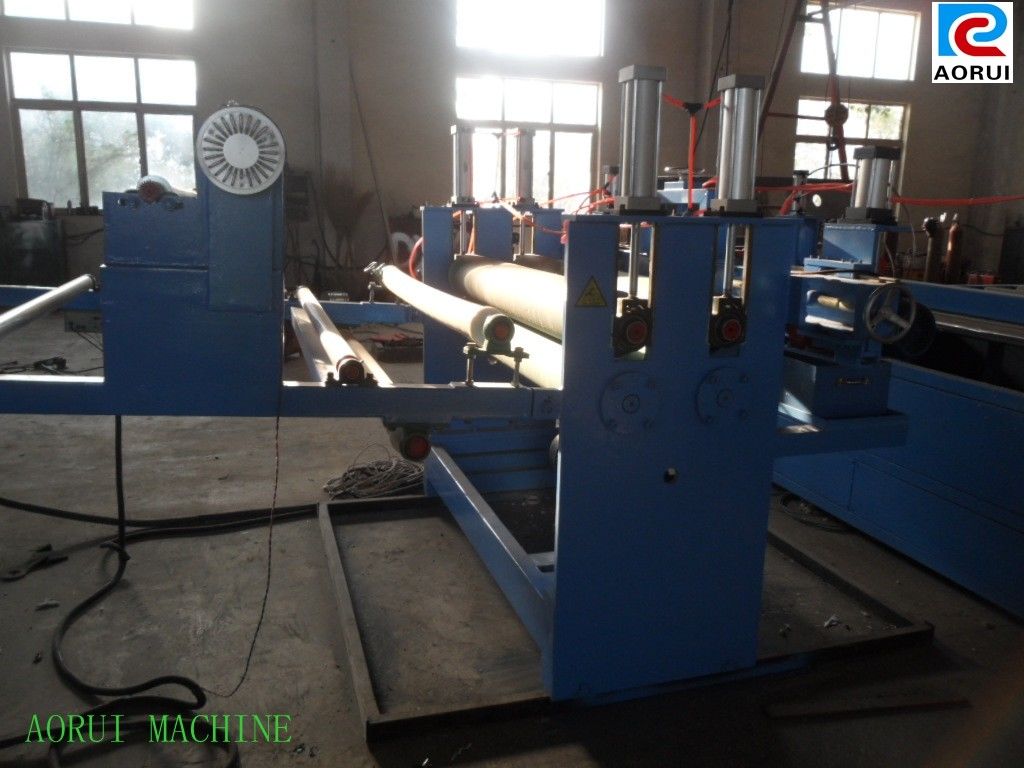

PVC Medicine Plastic Sheet Prodution Line , PVC Packaging Sheet Extrusion Machine
QUICK DETAIL :
1 . Material : PVC
2 . Screw design : Double screw
3 . After-sales Service Provided : Engineers available to service machinery overseas
Description:
The sheet line mainly consists of extruder ,hydraulic screen changer, coat-hanger die, three-roller calendar, cooling haul-off brackets, double disk winder or cutting and stacking device.
1 . Specially designed screws ensure high plastification rate.
2 . Precise temperature control(-1`C or +1`C) and the special module ensure precise thickness and flatness control.
3 . The thickness of sheet is precisely adjusted by adjusting the screws .
4 . The main parts, such as screw, barrel, screen exchanger, T-die adopt superior alloy steel (38CrMoAIA) with high hardness , strong corrosions resistance and long operating life after nitrogen treatment.
Applications:
1 . The stability of the machine production line is improved greatly by our group .
2 . The sheet made by the sheet production line is mainly widely used in construction decoration, toilet ware, inside decoration of vehicles, boxes and bags, medicine, chemical .etc
3 . Food stuff package, building materials, decoration and daily necessities.
Specifications:
|
Model |
Unit |
TYJB-75 |
TYJB-90 |
TYJB-110 |
|
Material applied |
PP,PS,PE |
|||
|
Width of sheet |
mm |
≤600 |
≤750 |
≤1100 |
|
Thickness of sheet |
mm |
0.2-1.6 |
0.2-2.0 |
0.2-2.0 |
|
Extrusion capacity |
kg/h |
60-100 |
100-150 |
150-200 |
|
Diameter of screw |
mm |
75 |
90 |
105 |
|
Installed capacity |
kw |
75 |
90 |
120 |
Competitive Advantage:
1. High temperature resistance
2 . Production scope : thickness 1-30 mm width 3000mm (under)
3 . Have many years experience
