Product Details:
|
| Place Of Origin: | Shandong , China (Mainland) | Raw Material: | PP,PE |
|---|---|---|---|
| Certificate: | ISO9001,CE | Voltage: | 380V,220V,etc |
| Application: | Recycled Granule | Screw Design: | Single Screw |
| Automatic Grade: | Automatic | ||
| High Light: | Plastic Pelletizing Machine,Plastic Granulating Machine |
||

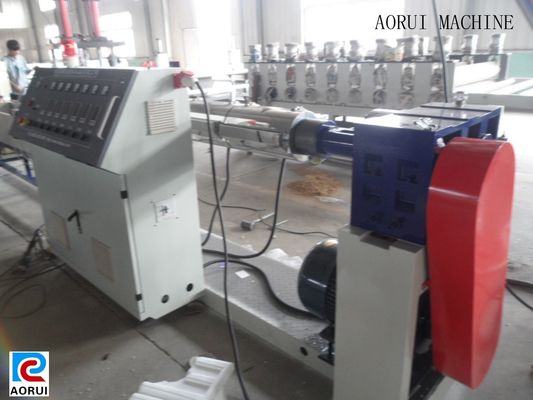

PE Recycle Plastic Granules Machine Single Screw PP Water Ring Granules Extruder
QUICK DETAIL :
1 . Hour capacity from 30kg~550kg.
2 . Packaging Details : wooden and films covered, standard packages
3 . Delivery Detail : 15 days after receiving deposit
Description:
PE granules making machine, recycling waste pe production line , pvc granules making machine, waste plastic granules making machine
The unit is made of plastic extruder, cooling tank ,drier, pelletizing, vibration sieve, its total length is 12 meter, it make granules for PVC,pe ect. and other plastic pelletizing.
The main engine equipped with the hydraulic screen changer can continue producing and save the manpower without shutting down the machine, breaking plastic strips and remaining leftover material.
The main engine is adopted the fine machining 38GrMoAl special steel which has over five times longer working life than the common 45# carbon structure steel screw.
The auxiliary engine is used 40GR to reduce the manufacturing cost of 38GrMoAl.
The machine can be equipped with our own automatic loading machine with automatic conveying, loading, plasticizing, exhausting and extruding into one.
Applications:
1 . Screw and barrel are made of 38CrMoAlA, inlet mouth treated with special alloy:very strong and long life.
2 . Low cost in using after redesign:now this kind machine is more economic in electric power source and also water.In the long working life of this machine,it can save mang source energy.
3 . High output,long operating life and lownoise,it's the ideal waste plastic regenerative pelletizer machine for you!
Specifications:
|
Model |
Screw diameter |
L/D |
Screw rotation speed (r/min) |
Max. extruding |
Motor power |
Heating zone |
|
SJ-45 |
45 |
33:1 |
73 |
60 |
28/35 |
3 |
|
SJ-50 |
50 |
33:1 |
90 |
120 |
37/45 |
3 |
|
SJ-65 |
65 |
33:1 |
90 |
220 |
55/75 |
4 |
|
SJ-75 |
75 |
33:1 |
90 |
350 |
90/110 |
4 |
|
SJ-90 |
90 |
33:1 |
90 |
500 |
160/185 |
5 |
|
SJ-120 |
120 |
33:1 |
80 |
750 |
280/315 |
5 |
|
SJ-150 |
150 |
33:1 |
80 |
1000 |
355/385 |
5 |
Competitive Advantage:
1 . good plasticity
2 . long working time
3 . high output
