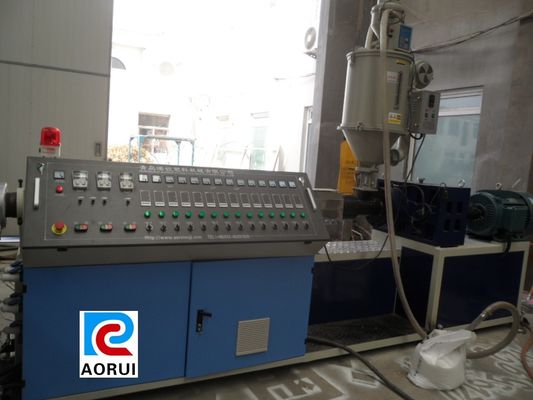

PP PE Pipe Extrusion Machine For Irrigate , Automatic Plastic Cool / Hot Water Pipe Production Line

Brand Name:	AORUI
Model Number:	SJ65
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

Materials:

PP , PE.PPR

Type:

Plastic Pipe Machinery

Screw Design:

Single Screw

After-sales Service Provided:

Engineers Available To Service

Condition:

New

Application:

PP / PE

Place Of Origin:

Shandong , China (Mainland)

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

plastic pipe extruder machine

plastic pipe extrusion machine

Product Description

Automatic Plastic Cool / Hot Water Pipe Extrusion Line , PP / PE Pipe Production Machine For Irrigate

Quick detail:

1 . output:60-800kg/h

2 . pipe diameter:16-800mm

3 . ISO&CE standard

4 . test before delivery

Description:

Plastic automatic charger →Hopper plastic dryer→ Single screw extruder → Mould and calibrator → Vacuum forming machine → Haul off machine → Cutting machine → Discharging rack

The main extruder adopts PE high-efficiency screw, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion.

Our PE pipe extrusion machine has features of low consumption, high output, stable running etc.

The standard PE pipe extrusion machine include: material charger, SJ series single screw

extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker.

The main electrics for PE pipe extrusion machine only adopt Siemens motor, siemens contactor,

ABB inverter, Omron temperature meter.

All of our PE pipe extrusion machine will be tested before delivery, and we will invite our cients to

come and testing the whole line with us together.

Specifications:

Diameter Scope	4.5-9	9-32	32-50
Main Extruder	SJ-30	SJ-45	SJ-65
L/D	30:1	30:1	30:1
Output kg/h	10	40	80
Main Motor Power kw	4	11	18.5
Corrugator Power kw	1.1	1.5	1.5
Mould Block Pairs	42	44	44
Cooling Type	Water and air cooling
Linear Speed (m/min)	6-10	8-12	8-15
Counting Type	Sensing counting
Winding Type	Automatic/Manual

Applications:

1 . Automatic double working position pipe coiler can realize automatic reel changing at set length, pipe automatic cutting and coiling.

2 . The successful application of high speed vacuum calibrating system, is to be optimized and improved of our previous high speed high speed vacuum calibrating system which has already obtained patent protection.

Competitive Advantage:

1 . Specially designed for high ouput
2 . Adopt advancest technolog
3 . Flexible design, stable performance.
