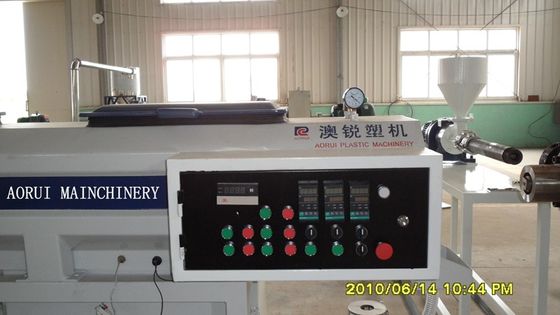

High Output Plastic Pipe Extrusion Line / Full Automatic PVC Pipe Production Machine

Brand Name:	AORUI
Model Number:	SJSZ-65/33
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA

Condition:

New

Application:

Water Pipe

Type:

Pipe Production Line

Production Capacity:

120-800kg/h

Production Capacity:

120-800kg/h

Place Of Origin:

Shandong , China (Mainland)

After-sales Service Provided:

Engineers Available To Service

Screw&barrel:

38CrMoAlA

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per month

Highlight:

plastic pipe extrusion machine

plastic pipe production line

Product Description

Full Automatic PVC Suppy Water Pipe Extrusion Machinery , Plastic Pipe Production Line

Quick detail:

Pipe material: PVC

Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life

Type: pipe production line

Description:

Raw material+additive→mixing→conveying feeding→force feeding→conical double screw extruder→“one mould four pipes”mould→calibrator→spray vacuum calibration tank→ink printer→belt haul-off→uplift cutter→pipe rack→finished product inspecting&packing

1 . The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.

2 . The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.

3 . The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.

4. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.

Specifications:

Model	Main Machine (extruder)	Quantity of Module	Specification of Pipe(mm)
SDSB 160	SJ 65/33×2 (PE)	40	Φ50-Φ160
	SJSZ 51×105, SJSZ 65×132 (PVC)
SDSB 800	SJ 150/35×2 (PE)	40	Φ400-Φ800

Applications:

1. Water supply and drainage pipelines in building;

2. Rainwater drainage pipelines in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.

Competitive Advantage:

1 . high output
2 . energy saving
3 . long working time
