Plastic Board Extrusion Line
Created with Pixso.

Household Appliances Plastic Board Extrusion Line PE Board Extruder

Household Appliances Plastic Board Extrusion Line PE Board Extruder

Brand Name: AORUI
Model Number: SJSZ80/156
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE UL CSA
Condition:
NEW
Screw Design:
Single-screw
Certification:
CE ISO9001:2008 SGS
After-sales Service Provided:
Engineers Available To Service
Place Of Origin:
Shandong, China (Mainland)
Dimension(L*W*H):
L40m*W3*H2.5m
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

Board Production Line

,

Panel Production Line

Product Description

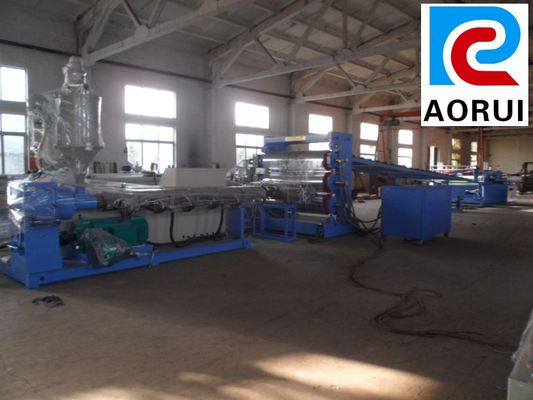

Household Appliances Single Screw PE Board Extruder , PE Building Board Production Line


QUICK DEATIL :

   Material:  pe
   Application : board
   fields: packaging, stationery, chemicals, construction, household appliances



Description:


  • High efficiency single screw extruder.
  • It can produce rigid pp pe board/sheet.
  • The thickness is from 3mm to 50mm, width is from 1220mm to 2050mm.
  • This sheet/board is mostly used as plastic cutting board,construction template,electric industry and so on.

   Three-roller calendar: According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.

   Cooling frame: According to product specifications, configurations with different specifications of the stainless steel cooling roller.

   Edge-cutting devices: Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.

    Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.


Applications:


Industrial application: rot proof project in chemical industry, thermal shaped part, plate for refrigeration
 warehous, special cool-keeping protection plate.

Other applications: construction formwork, sports apparatus, aquaculture material, seashore wet-

proof facility, water-resistant material, arts material and all sorts of light separation plate.


Specifications:


Model

Extruder

Width

Thickness

Capacity

XD1220

SJSZ80/156

1220mm

<30mm

350KG

XD1830

SJSZ92/188

1830mm

<30mm

<800KG



Competitive Advantage:

All series of products have property of moisture proof, mildew proof, water resistance; its vibration

resistant effect is good.

All series of products have property of weathering proof, its luster may remain forever, and it is not easy to
be ageing.

This product is light, storage & transport, construction are rather convenient.
