Plastic Pipe Extrusion Line , PE Hot And Cool Water Pipe Production Line

China Plastic Pipe Extrusion Line , PE Hot And Cool Wter Pipe Production Line

Quick detail:

1.  Feature of our PE Pipe Mahcine

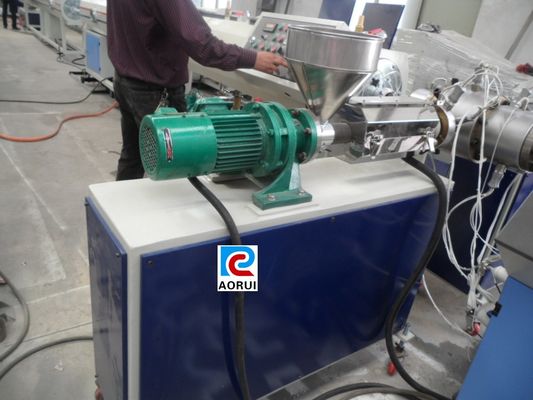

High efficiency single screw extruder.
It can produce hdpe water/gas pipes.
The pipe diameter range:20-630mm or customes request.
This hdpe hoes is mostly used as city water and gas supply system and so on.

2. Process Flow
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker

Description:

1. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress.


2. The pipe die head is designed in standard , and the reasonable flowing path ensures smoothness of the inside and outside walls of the pipe . The way of assembling the die head is designed according to the client’s requirement, which saves much room.


3. Accurate temperature control , good plasticization , stable operation ,  manufature velocity up to 15m/min.


4. The tank is made of stainless steel , and automatic controller is used to control the liquid level . The peculiar spraying nozzle brings about effective cooling and the motor ensures longitudinal movement and three-dimensional adjustment in terms of the directions of upward, downward , left and right.


5. The special sizing and cooling mode enable the production line to produce pipes whose diameter range is from 25mm to 200mm , at a speed of 0.8to 1.5 meters per minute.

Main Technical Parameters:

Applications:

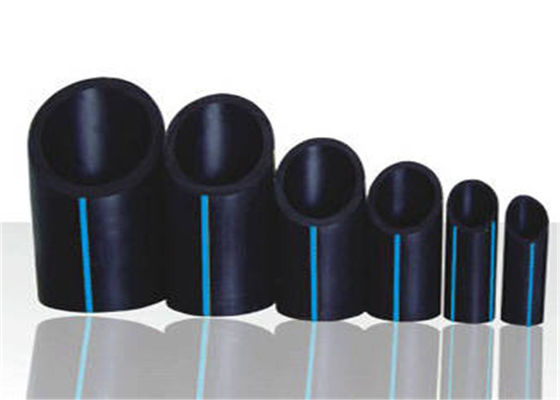

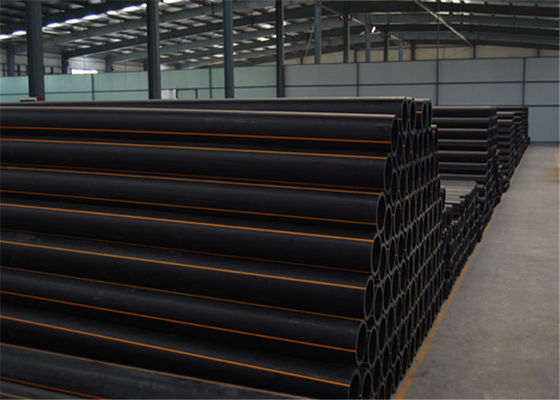

These pipes are characterized by high intensity and tenancy, erosion resistance, constant shape and easy transportation and execution, etc. They can be processed and bent into long pipes with various radians. Owing to these advantages, they are very popular with clients engaged in many fields.

Pipe inner wall is smooth, it can reduce the blocking phenomena by the residuum in the water, has its own advantages of good flexibility, easy to install and carry, resistance to low temperature and frost crack and service life up to 50 years.

PP-R, PE Cold/Hot Water Pipe Production Line is mainly used to produce pipes of various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc. During the developing history, the PP-R pipe is the latest product, has the advantages of low prices, innocuity, non-corrosion, high temperature resistance and convenient to operate, etc.

Competitive Advantage:

1 . 15 years professional experience

2 . High efficient service

3 . Competitive Price
