20-160mm Plastic Extrusion Line , PPR PE Cool And Hot Pipe Production Line , PP PE PPR Water Supply Pipe Machinery

20-160mm Plastic Extrusion Line , PPR PE Cool And Hot Pipe Production Line , PP PE PPR Water Supply Pipe Machinery

Quick detail:

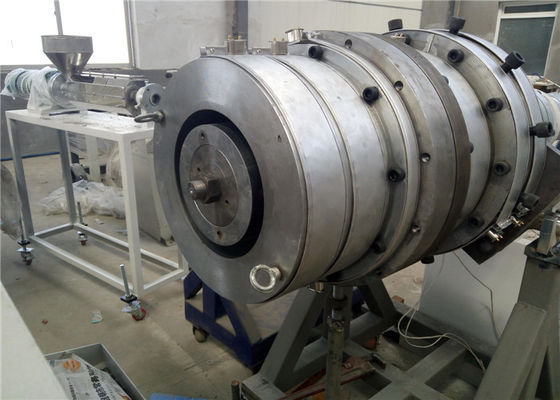

1. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress.


2. The pipe die head is designed in standard , and the reasonable flowing path ensures smoothness of the inside and outside walls of the pipe . The way of assembling the die head is designed according to the client’s requirement, which saves much room.


3. Accurate temperature control , good plasticization , stable operation , manufature velocity up to 15m/min.

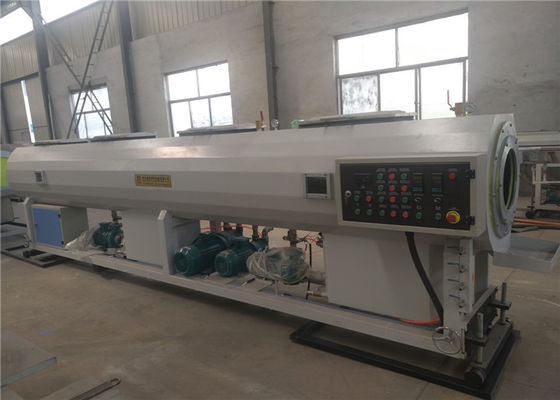

4. The tank is made of stainless steel , and automatic controller is used to control the liquid level . The peculiar spraying nozzle brings about effective cooling and the motor ensures longitudinal movement and three-dimensional adjustment in terms of the directions of upward, downward , left and right.


5.Producing pipe limit 20mm-160mm , manufacture velocity up to 15m / min.

Description:

1. Features, such as: Special structure, high degree automation, easy operation, continuous produce stable and reliably and so on. It is also applicable for high speed extrusion of PE, PP, PPR, PERT, ABS etc. The outstanding characteristics of this production line is that it can not only produce the pure PE pipe complying with the international standard, but also produce the wire reinforcing composite plastic pipe. Plastic Pipes produced by this line have excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on.

2. The whole production line, from charging to stacking shall be controlled automatically by PLC, having high reliability, easy operation and maintenance. With this extrusion line, a layer or multi-layer high strength wire such as steel wire, glass fibre and polyester fibre may be winded do existing pure PE pipe to increase the pipe working pressure to 4MPA.

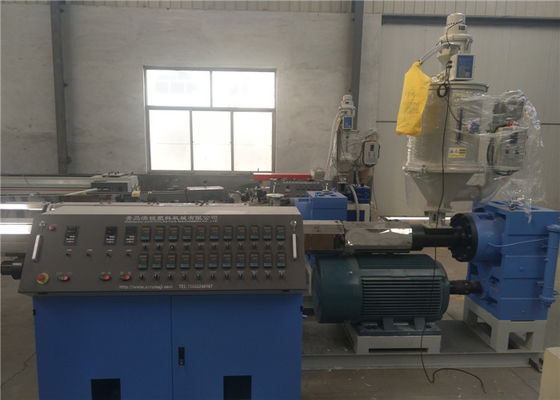

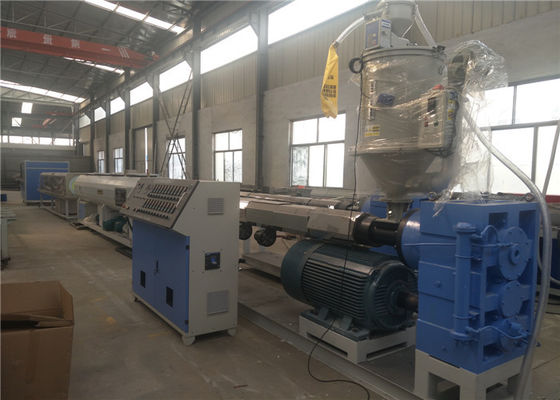

3. HDPE/MDPE pipe extrusion line mainly includes single screw extruder, molds, vacuum calibrating water tank, spray water cooling tank, haul-off machine, cutting machine and stacker

Main Technical Parameters:

Applications:

PP-R, PE Cold/Hot Water Pipe Production Line is mainly used to produce pipes of various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc. During the developing history, the PP-R pipe is the latest product, has the advantages of low prices, innocuity, non-corrosion, high temperature resistance and convenient to operate, etc.

This kind of pipes have many advantages, such as corrosion resistant light, easy to fix, long time to use etc.

why choose us:

1 . Affordable prices

2 . Good aeter-sales service

3 . Rapid delivery
