2016 Low Consumption Strap Making Machine Pet Packing Belt Straps Production Line

Brand Name:	AORUI
Model Number:	SJ65/33
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA ISO9001

Condition:

New

Name:

Strapping Band Machine

Processing Type:

Extruding Machine

Brand Name:

Aorui

Place Of Origin:

Shandong, China

Certification:

CE, BV , ISO9001

After-sales Service Provided:

Engineers Availiable To Serive

Packaging Details:

Fumigationwood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per month

Highlight:

Strap Making Machine

Automatic Strapping Machine

Product Description

2016 Low Consumption Strapping Band Machine , Pet Packing Belt Straps Production Line

Quick detail:

1.Accurate dosing and raw material blending,Preheat and dry circulating automatically

Even plastication, stable extrusion and exact temperature control.

2.Basic Parameters

1. Raw material: PET bottle flakes (viscosity≥0.75)

2. Parameters of straps:

2.1. Width: 9 - 25mm

2.2. Thickness: 0.6-1.3mm

2.3. Breaking strength:< 50kg/mm²

2.4. Elongation rate:10-15%

2.5. Width tolerance:±0.45mm (int. ±0.76mm)

2.6. Thickness tolerance:±0.05mm (int. ±0.06mm)

3. Extrusion parameter:

3.1.1 Four straps: Width 9-12mm, T<1mm

3.1.2 Two straps: Width 9-12mm, T<1mm

3.1.3 One strap: Width16-19mm, T >1mm

3.3. Extrusion output: Max 450kg/h

3.4. Production line speed: ≤120m/min ×2(1)

Description:

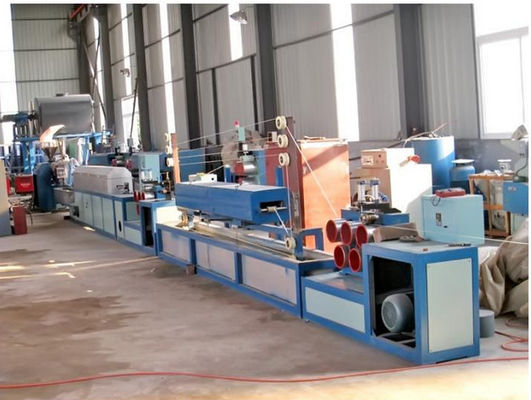

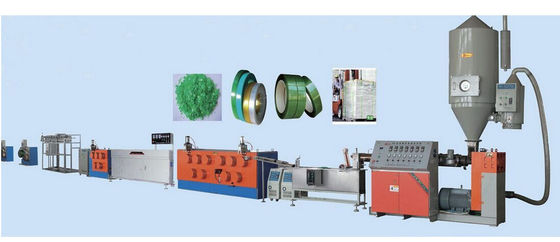

1.Strapping band machine , PET packing belt straps production line

Single screw or twin screw for option depending on the requirement . 100% recycled flakes can be used for production . Even plasticization and stable extrusion with PC automatic control for the full line . The dosing pump ensures continuous and stable production . The filter of double columns with four working positions can get rid of impurity effectively . Single strap or double strap for option.

2.-Accurate dosing and raw material blending . -Preheat and dry circulating automatically. -Even plasticizing , stable extrusion and exact temperature control ,PLC automatic control . -Big hauling force strengthen device and insulation oven. -Melt pump ensure consecutive and stable production. -Large capacity stainless steel water tank ,automatic water level control .

The main technique parameter

Model	SDD65	SDD80	SDD45/65	SDD45/80	SDD/80
Extruder diameter(mm)	65	80	45/65	45/80	80
Productivity(kg/h)	20-35	20-35	30-60	30-80	30-60
Winding mode	Mechanical or manual	Mechanical or manual	Mechanical or manual	Mechanical or manual	Mechanical or manual
Haul off multiple	5-10	5-10	3-5	3-5	6-10
Weight(kg)	28	40	46	56	50
Production line length(m)	12x2.8x1.6	14x2.8x1.6	12x3.8x1.6	15x3.8x1.6	18x3.2x1.6
Product specifications(mm)	10-22	10-22	10-22	10-22	10-22
Total weight(t)	2	2.6	3	3.8	3.6

Competitive Advantage:

100%recycle material

strong vacuum system to dispense with dehumidify and dry.

the recycle material consumption is lower 40% than raw material.
