Plastic pvc Pipe Extrusion Line , Double Screw Twin Pipe Extrusion Line

Brand Name:	AORUI
Model Number:	SJSZ65/132
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA ISO9001

Brand Name:

AORUI

Automatic Grade:

Fully Automatic

Processing Type:

Extrusion

Motor Power:

37kw

Place Of Origin:

Shandong , China(Mainland)

Production Speed:

12m/min

After-sales Service Provided:

Engineers Available To Service

Certificate:

CE ISO9001

Packaging Details:

Fumigationwood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per month

Highlight:

plastic pipe extrusion machine

plastic pipe production line

Product Description

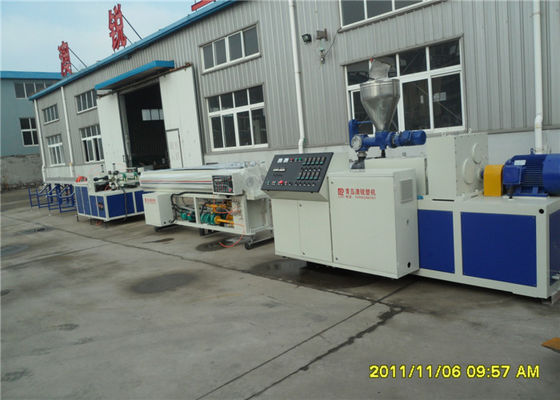

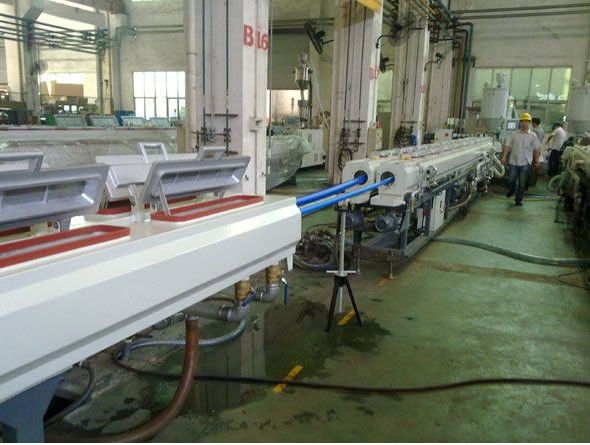

Plastic pvc Pipe Extrusion Line , Double Screw Twin Pipe Extrusion Line

Quick detail:

1. twin pipe extrusion machine

2. twin pipe vacuum sizing system

3. twin pipe hauling mechanism and synchronous cutting device

4. This line is of reliable performance and high production efficiency.Our company can also manufacture special pipe production lines,eg.Spiral silencing pipe and core foaming pipe according to your requirements.

Description:

1. Plastic PVC Pipe Extrusion Line , Double Screw Twin Pipe Extrusion Line

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack

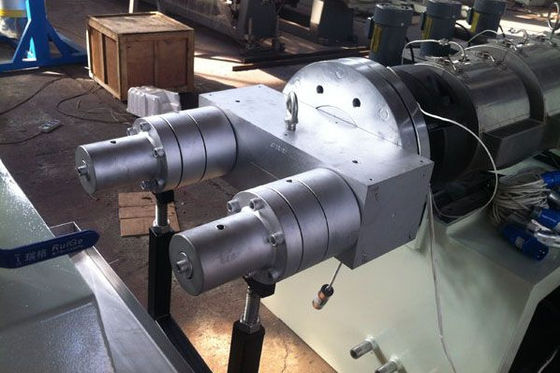

2. First class pipe die was designed with many years experience

Perfect twin pipe vacuum sizing system

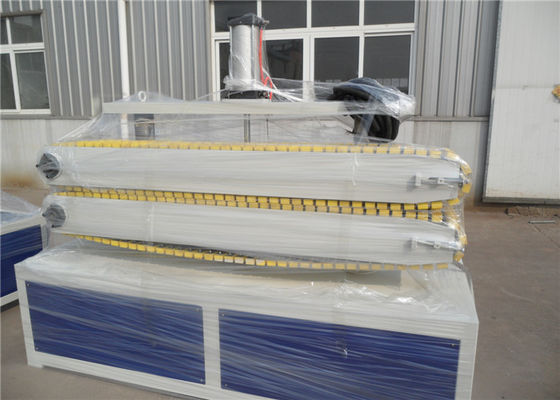

Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device

Optional length set and accurate adaption stacker

3. This line is composed of conical twin screw extruder.cacuum calibration tabk.haul-off.cutterandstakeetc.The extruder and haul-off adopt imported AC frequency control device,vacuum pump and haul-off motors adopt high-quality products.The haul-off methods are two-claw,four-claw,six-claw,eight-claw.ten-claw,tweleve-clawetc.

Main Technical Parameter

Extruder Model	SJSZ-51X105	SJSZ-65X132
Accessory Machine	GFDP-63	GFDP-63
Pipe Diameter	16-63mm	16-63mm
Production Speed	12m/min	12m/min
Max.Output	160kg/h	220kg/h

Competitive Advantage:

1.High-quality equipment and highly competitive market prices can bring you more profits.

2. More than 15 years of plastic extrusion machine industry experience, can solve the various problems in the work. Improve machine efficiency for you.

3. More than 15 years of plastic extrusion machine industry experience, has a good supply system, can provide you one-stop service with the pre-sale , sale and after sale service. Save your purchasing cost and maintenance costs
