pvc Plastic Extrusion Line , pvc Water Supply Twin Pipe Extrusion Machine

Brand Name:	AORUI
Model Number:	SJSZ65/132
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA ISO9001

Plastic Processed:

PVC

Certification:

CE BV ISO9001

After Sales Service:

Engineers Availiable To Serive

Dimension(L*W*H):

According To Model

Production Speed:

12m/min

Screw Design:

Double Screw

Application:

Water Pipe

Place Of Original:

Shandong , China

Packaging Details:

Fumigationwood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per month

Highlight:

plastic pipe extrusion machine

plastic pipe production line

Product Description

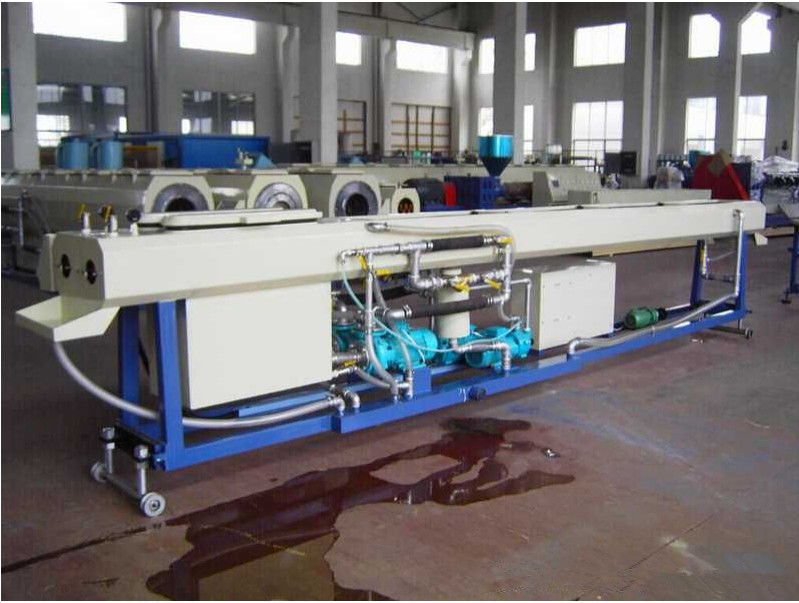

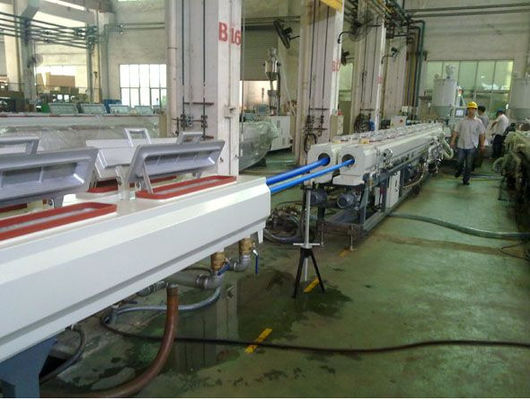

pvc Plastic Extrusion Line , pvc Water Supply Twin Pipe Extrusion Machine

Quick detail:

1. many years experience

2. twin pipe vacuum sizing system

3. optional length set and accurate adaption stacker

4. The production line is composed by Conical twin screw extruder, Double pipes mould, Double vacuum calibrator, Double haul-off machine, Double stacker, Double belling machine and so on.

Description:

1. First class pipe die was designed with many years experience

2. Perfect twin pipe vacuum sizing system

3. Controlled independently unitary structure with twin pipe hauling mechanism and synchronous cutting device

4. Optional length set and accurate adaption stacker

5. PVC electric conduit pipe making machine is mainly used to produce small diameter cable, water draining and supplying pipe and so on. It can produce PVC pipe from 16~160mm in different thickness by changing the machine type and mould.

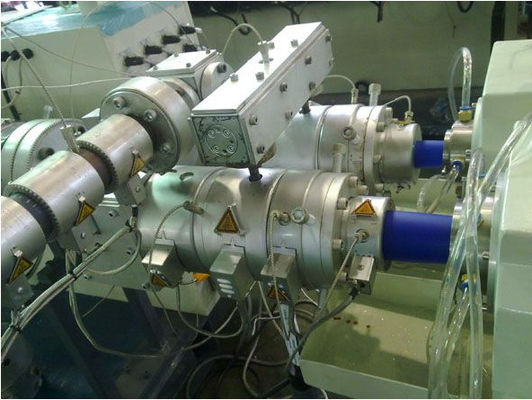

6. It adopts conical twin screw extruder for high extrusion pressure and good effect of plasticizing.Reliable temperature control system ensures the high quality pipes.Adopt PLC control for easy operation.Low consumption, high output, stable running.Auxiliary equipments also can be chosen: Pipe crusher, PVC milling machine, Mixer, Pulverizer etc.

Main Technical Parameter

Extruder Model	SJSZ-51X105	SJSZ-65X132
Accessory Machine	GFDP-63	GFDP-63
Pipe Diameter	16-63mm	16-63mm
Production Speed	12m/min	12m/min
Max.Output	160kg/h	220kg/h

Competitive Advantage:

1.High-quality equipment and highly competitive market prices can bring you more profits.

2. More than 15 years of plastic extrusion machine industry experience, can solve the various problems in the work. Improve machine efficiency for you.

3. More than 15 years of plastic extrusion machine industry experience, has a good supply system, can provide you one-stop service with the pre-sale , sale and after sale service. Save your purchasing cost and maintenance costs
