Brand Name: | AORUI |
Model Number: | SJ65/33 |
MOQ: | 1 set |
Price: | Negotiable |
Payment Terms: | T/T L/C |
Supply Ability: | 30 sets per quarter |

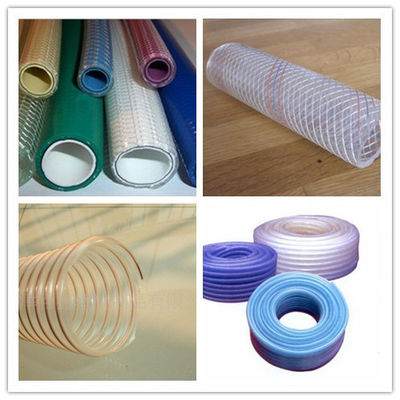

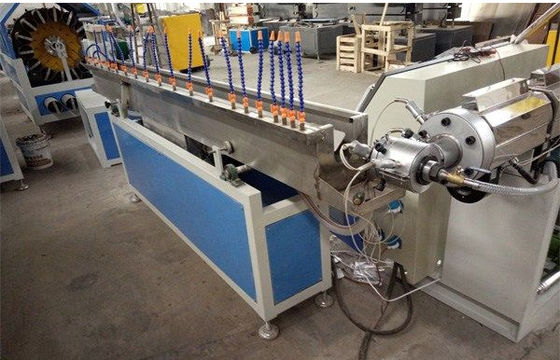

Plastic PVC Soft Pipe Extrusion LIne , PVC Fiber Reinfoeced Hose Manchine For Garden
Quick detail
Fiber pipe machine
pvc fiber reinforced soft pipe production line
Low cost
High output
ISO9001 CE BV
Specifications:
This series of extrusion lines are mainly used to produce PVC drainage pipes and U-PVC,C-PVC water supply pipes.
Advanced design for screws supplies powerful safeguard for the PVC plasticization.
Unique inside oil controlling temperature system adapts different technology formulas.
Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent.
Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.
Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system , which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment
Main technical parameter
Extruder | SJ65/28 | SJ45/30 |
Diameter Range(mm) | Φ12-Φ50 | Φ6-Φ14 |
Output | 40-75 | 20-40 |
Installed Power(KW) | 50 | 35 |
Main Extruder | SJ65/28 | SJ45/28 |
Diameter Range(mm) | Φ16-Φ50 | Φ6-Φ14 |
Output | 40-75 | 20-40 |
Producing speed | 4-8m per min | |
Installed Power(KW) | 50 | 35 |
Why choose us:
1. Fast delivery : around 30 days after receiving advanced payment
2. Quality Assured: Strictly acc. To International standard ASTM & BS & EN & JIS, with System ISO certification
3. Good pre-sales and after-sales service
For more details and get quotation of the PVC pipe production line, please send inquiry to us! thanks!
