PET Strap Making Machine PET Packing Belt , Draebentch Production Line

Brand Name:	AORUI
Model Number:	SJ45
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA

Brand Name:

Aorui

Application:

Strap Band

Plastic Processed:

PET

Certification:

CE BV ISO9001

Automatic Grade:

Fully Grade

Port:

Qingdao Port

Warranty:

1 Year

Voltage:

380V 50HZ

Packaging Details:

Fumigationwood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per month

Highlight:

Strap Making Machine

Automatic Strapping Machine

Product Description

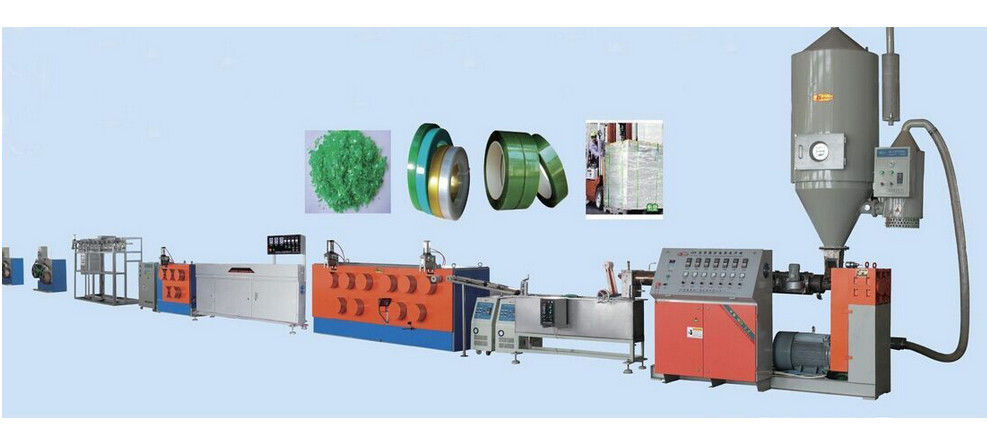

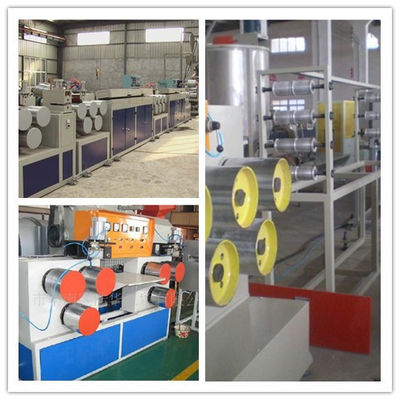

PET Strapping Band Machine , PET Packing Belt , Draebentch Production Line

Brief introduction of PET Strap Band Machine:

1.Technical process:

crystallization dry device---mould---extruder model---lowing trough---re-heater---stretching machine---hot wind stretching box---the 2nd stretching machine---embossing machine---calibrating box---the 3rd haul-off machine---cooling water box---the 4th haul-off machine---winder Twin four and six straps extrusion can be achieved.

2. This production line is used to product the pet packing band,pet packing strap;adopt the plc control the whole line do the auotmatic production,it use the melting pump and pressure sensor ensure the production stable and strap quality control the raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other

Description:

1.PET strapping machine,using the recycling bottle slices as raw materials by making them melt directly,which reduces the course of raw material-making.

2.1) Normal vertical system is only for drying.

2) The system in this line is for mixing / dehumidifying and crystallizing. Because the molecular chain of the PET bottle flakes is broken, this system can link them and plays a physical viscous role which can greatly improve the tensile strength of the final products

3)Mixing units in this new design dehumidifier mix the PET flakes well ,so it can dry the PET flakes even.

Drying medium of this dehumidifier is heat oil and hot wind , heat oil can ensure the drying temperature to reach to hundreds of centigrades, so it can dry the PET flakes fully .

The main technique parameter

Item	SJ65-36 twin parallel screw extruder	SJ90-33 singgle screw extruder	SJ75-33 single screw extruder
Main power	55kw	55kw	45kw
Output	120-220kg/h	100-200kg/h	50-100kg/h
Width	6-32mm	6-32mm	6-32mm
Thickness	0.6-1.2mm	0.6-1.2mm	0.6-1.2mm

Competitive advantages:

Low energy consumption, high production capability.

Easy to operate ,save manpower
