Product Details:
|
| Place Of Origin: | Shandong , China | Voltage: | 380V50HZ |
|---|---|---|---|
| Material: | PET | Color: | Blue White Black Yellow |
| Application: | Strap | Weight: | 4T |
| Port: | QingDao | After Sales Service: | Engineers Availiable To Service Manchinery Overseas |
| High Light: | Strap Making Machine,Automatic Strapping Machine |
||

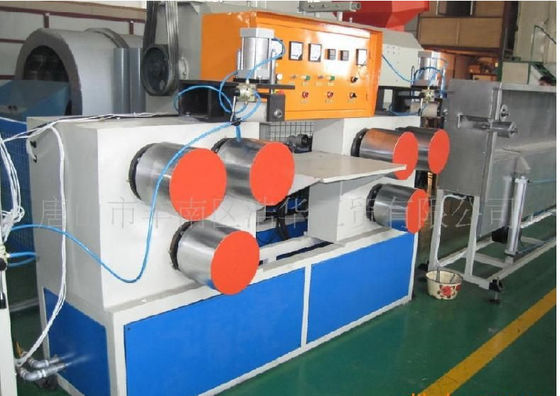

PP PE PET Strapping Band Machine , PP PE PET Packing Belt Drawbentch Machinery
Quick detail:
1. PP/PE/PET Strapping Band Extrusion Line is mainly used in packing
2. The screw diameter range from Φ75mm to Φ100mm, will be some different according to the detailed reuqirements.
3. The speed of production is 120m/minx2

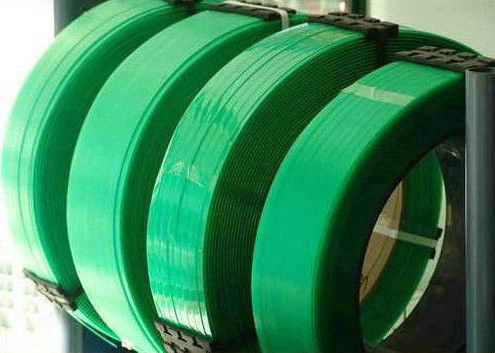

4. PET/PPstrap, also know as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, with the development of new material in recent years,which can reduce the cost. Now it has been widely used in the steel industry, chemical fiber industry, aluminum ingots, paper, brick kiln industry, tobacco industry,electronics, textiles and wood, etc.
Description:
1. We design, engineer and manufacture and customized the extrusion line , PP/PET Strap Band Production Line, large capacity ,save energy and material , increase profit and efficiency
2. PP strap with the main material is polypropylene resin, drawing class, because of its plasticity, fracture tensile strength, bending resistance, light weight, easy to use, etc., are processed into the banding has been widely role in various fields. PP strap with the main material is polypropylene resin, drawing class, because of its plasticity, fracture tensile strength, bending resistance, light weight, easy to use, etc., are processed into the banding has been widely role in various fields.
3. Single screw or twin screw technique for option depending on the requirement . 100% recycled flakes can be used for production. Even plasticzation and stable extrusion with PC automatic control for the full line, the dosing pump ensures continuous and stable production. the filter of dpuble columns with four working positions can get rid of impurity effectively . single strap or double strap for option.
4. Service condition: 380V 50HZ / Strap width: 5-19mm / Strap thickness: 0.4-1.5mm or customized
Capacity: 50-170kg/h / Raw material: PP granules/recycled PP material / Extruder type: single screw
The Main Technique Parameter
| Range of band width | 6-32mm |
| Speed of production | 120m/minx2 |
| Stretch ratio | 4-6 |
| Max . Output | 200kg/h |
Our advantages
1.We will offer you all necessary documents, e.g. general layout plan, installation direction, electrical diagram and user manual after the contract is executed.
2. CE& ISO9001 certificate
3. Fast delivery , the delivery time is 30 days after receive payment.
