Product Details:
|
| Condition: | New | Screw Design: | Double Screw |
|---|---|---|---|
| Material: | PVC | Certificate: | CE ISO9001 |
| Application: | Board/sheet | Place Of Origin: | Shandong , China (Mainlanf) |
| Automatic Grade: | Fully Automatic | After-sales Service: | Engineers Availiable To Serive |
| Highlight: | Board Production Line,Panel Production Line |
||

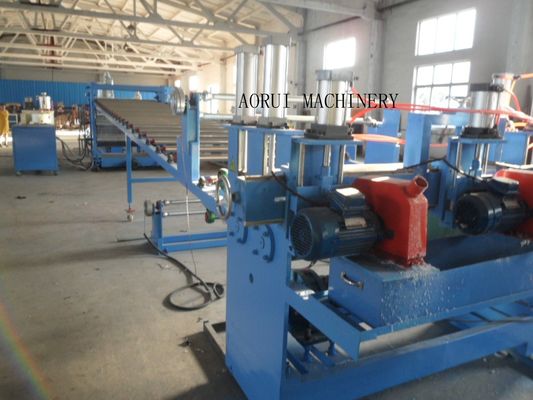

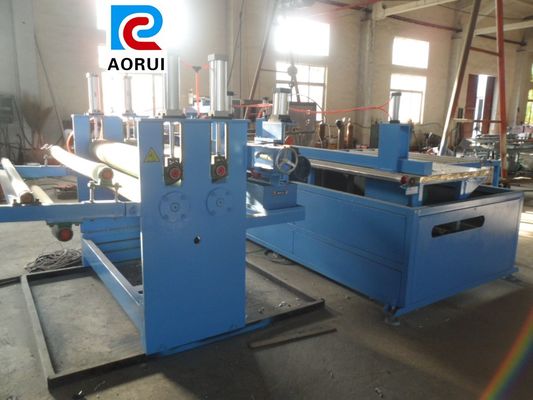

pvc Board Extrusion Line , pvc Free Foamed Board For Decoration
QUICK DEATIL :
1. pvc free foamed sheet , board , decoration sheet production line , pvc foamed board machine
2. applications: such as wire plate , environment protection material , venting equipment , demiconductor equipment , ect.
3. Main Machines: Conical twin screw extruder--Mould & Die-head---Vacuum Calibration Tank---Haul-off
---Cutter---Stacker
Description:
1.Production saope: Thickness 1-30mm , width 3000mm(under)
2. pvc foam board production line has such characteristics as high impact resistance , high rot resistance , high temperature resistance , non-toxic , smooth surface , light , easy to thermoform , etc .
3. The industrual standard parts are used in the production line in order to shorten the maintenance and repair time.All the parts are using the high quality of material and computer automatically control can provide accurate skill to guarantee the quality of product.
4. Using PVC or PE/PP and wood powder as raw material for direct forming, the extruders perform an excellent effectiveness.
5. This PVC WPC sheet or board production line has automatic temperature control, vacuum gas exhaustion, olicooled screws, stepless speed regulation, as well as aforced feeding and self-cleaning machianism.
6. This extruding machine has many usages. With appropriate extruding heads, screws and other auxiliaries, they are able to directly convert plastic and wood powder into WPC board.
7. Furniture plate is actually PVC crust foam board. Smooth level off, light weight, high density, high hardness, moistureproof and waterproof, mouldproof, anti-corrosion, no JiaQuan, benzene, non-toxic green environmental protection products, deformation and compressive resistance.
Applications:
such as wire plate , environment protection material , venting equipment , semiconductor euipment , etc
Specifications:
|
Model |
Extruder |
Width |
Thickness |
Capacity |
|
XD1220 |
SJSZ80/156 |
1220mm |
<30mm |
350KG |
|
XD1830 |
SJSZ92/188 |
1830mm |
<30mm |
<800KG |
Competitive Advantage:
1. Engineers availiable to serive for overseas
2. Good pre-sales and after-sales service
3. High quality and resonable price
