WPC Profile Production Line
Created with Pixso.

WPC Window Plastic Profile Extrusion Line , WPC Plastic Profile Production Line

WPC Window Plastic Profile Extrusion Line , WPC Plastic Profile Production Line

Brand Name: AORUI
Model Number: SJSZ 80/156
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter
Detail Information
Place of Origin:
ShanDong China
Certification:
CE UL CSA ISO9001
Material:
WPC
Condition:
New
Production Capacity:
120-150kg/h
Screw Design:
Double Screw
Place Of Origin:
Shandong , China(Mainland)
Automatic Grade:
Fully Automatic
Processing Type:
Extrusion
Brand Name:
AORUI
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 sets per quarter
Highlight:

wood plastic composite extrusion machine

,

wood plastic machine

Product Description

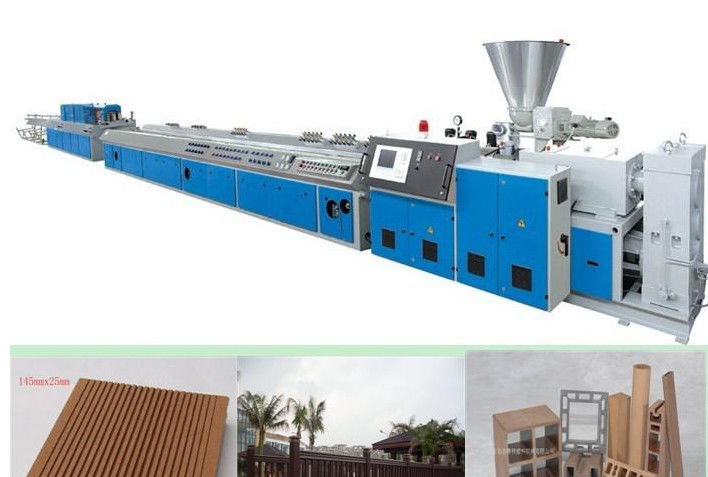

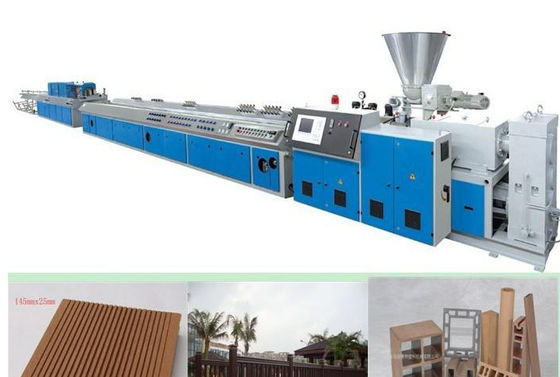

WPC Window Plastic Profile Extrusion Line , WPC Plastic Profile Production Line



Quick detail:



1. Color customized

2. Easy to installment and stable operate

3. Width of profile : 50mm-500mm

4. Product name: WPC plastic profile production line



Description:



1. Wood plastic composites based on sawdust, wood shavings, bamboo shavings, rice husk, bran, peanut shell, cotton stalk low plant biomass such as fiber as the main raw material, using the polymer interface chemistry principle and the characteristics of plastic filling modification, mixed with a certain proportion of the plastic base, after processing by the special craft processing and molding of a reversible recycling, wide coverage, product variety, the diversity of morphological structure of basic materials. At present, this appellation is differ, there are also call it plastic wood, environmental wood, wood science and technology, renewable wood, such as wood of polymerization.



2. The features of the wood composite material:



1) Raw material resource: the raw material most is recycled, extensive sources , low cost , Fully embodies the comprehensive utilization of resources and effective use.



2) Product can be plasticizing: Wood plastic products for artificial whole synthetic products , the process and formula can be adjusted according to the requirements .



3) Use environment protection: Wood plastic material of wood/plastic makings and the commonly used additives are safe environmental protection, non-toxic harmless, also won't produce side effects in the process of its production and processing, therefore did not constitute a close to the human body and environment risk register.



4) Cost economization: wood plastic products to achieve the low plant material take the transfer of high value-added products, not only low maintenance cost, and product life many times however wood, comprehensive comparison has obvious economic advantage.



5) Recycled and biochemical: scrap products and recycling of wood-plastics material can be 100% recycled, and will not affect the product performance, can truly realize the "reduction, biochemical, recycling" circular economy mode.

Applications:

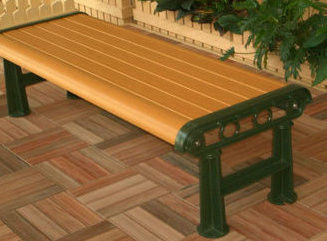

such as edge and corner lines, fence of flowers nursery, skirting board, ceiling line, blind window, stair railing, decorative wall board, outdoor pavilion and so on. Most interior and exterior decorative building materials can be made by using wood plastic composite.



Specification

Items YF180 YF240 YF300 YF600 YF900 YF1200
Max.width of board(mm) 180 240 300 600 900 1200
Drawing height(mm) 150 150 150 150 150 150
Drawing speed(KN) 2 2 2 2 2 2
Drawing speed(m/s) 0-5 0-5 0-5 0-3 0-2.5 0-2.5
Auxiliary equipment sum power(kw) 35 35 30 30 40 45
Cooling water consume(m3/h) 6 6 6 9 12 15
Compression air(Mpa) 0.6 0.6 0.6 0.6 0.6 0.6



Competitive advantages:



1 . good after-service

2 . spare parts are free

3 . our engineer help and teach customer to test the machine.
