Product Details:
|
| Brand Name: | AORUI | Application: | Drian Pipe |
|---|---|---|---|
| Drawing Speed: | 15m/s | Certificate: | CE ISO9001Certification |
| Place Of Origin: | Shandong,China | Pipe Diameter: | 20-160mm |
| Dimension: | According To Model | Voltage: | 380V50HZ Or Customized |
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||
PVC Plastic Pipe Production Line , 75-200mm Double Screw PVC Pipe Production Line For Drain Pipe
Quick detail
1. PVC pipe production line is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.

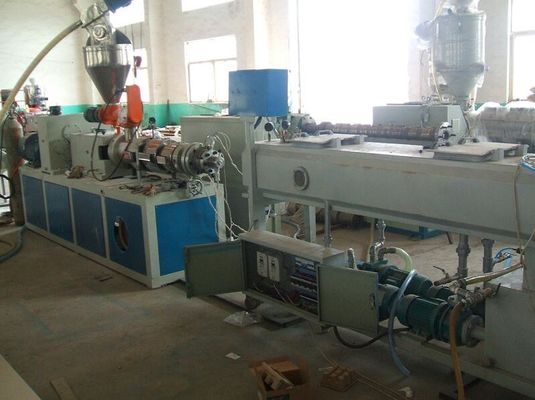

2. The unit consists of Conical (Parallel) double screw extruder-PVC tube mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.
Producing pipe diameter range: Φ16mm-Φ630mm.
3. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
Description:

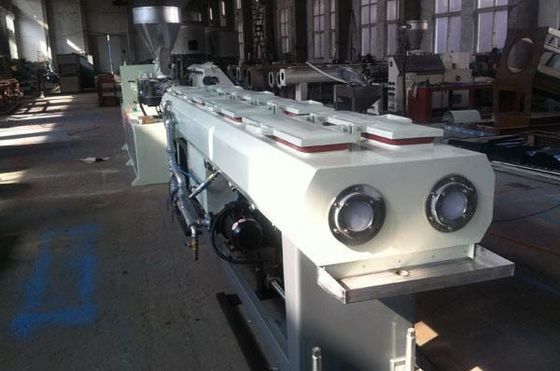

1. This machine group consists mainly of twin conical (parallel) screws extrder , vacuum calibrating tank , tractor , haul-off unit , cutting unit ,tilter , etc. Single screw extruder and haul-off unit have applied imported A/C inverter , both vacuum pump and driving motor have applied excellent products
2. Controlling system: manual controlling cabinet or SIEMENS PLC touch screen controlling. OMRON temperature controller, SIEMENS contactor, ABB inverter, SIEMENS AC/DC motor
3. pvc pipe machine/PVC pipe making machine /pvc pipe production line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.

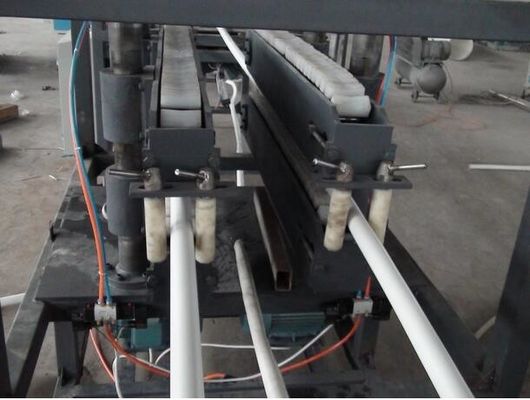

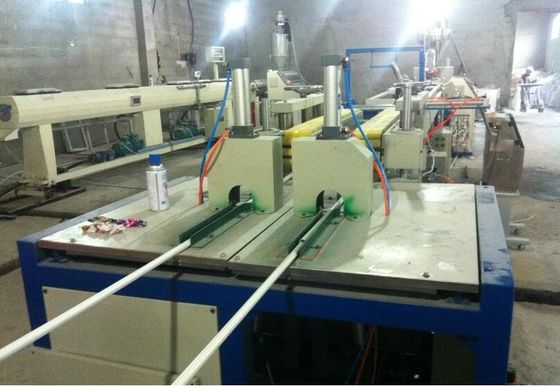

4. The haul-off unit includes: two-claw type, three-claw type, four-claw type, six clau type, eight-claw type, ten-claw type, twelve-claw type etc. No scraps cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable, the production efficiency is high.
5. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, amd core layer foam pipeject. it can also produce PP,PE,ABS,PPR,PEX, silicon core pipe and pipe computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
GF series plastic pipe material production line is mainly used in the area of agricultural water supply system , architectural water supply system , pavement of cables , etc . as well as pvc pipe material of all sorts of pipe caliber and wall thickness.
Our competetive advantages:
1. good pre-sales and after-sales service
2. our engineers can go to aborad to installment the machine and teach the workers
3. easy to operate and high output
