Product Details:
|
| Product Type: | Plastic Pipe | Cetificate: | CE,ISO9001 |
|---|---|---|---|
| Feature: | Lower Cost | Type: | HDPE Pipe Production Line |
| Pipe Size: | According To Customer | USAGE: | Water Supply Pipe,drainage,etc |
| Highlight: | Plastic Granulating Machine,Plastic Recycling Machine |
||
Multilayer PE Cable Plastic Pipe Extrusion Line , City Gas PP Drainage Pipe Machine
Quick detail:
Main Features of plastic production pe pipe machine:
1) High output, can be improved 30-50% at the same main motor power condition.
2) High production line speed, for Φ20mm pipe can be 35m/min.
3) Haul-off machine and cutter can be servo control.
4) Optional equipment automatic weighing measurement and thickness control system.
Description:

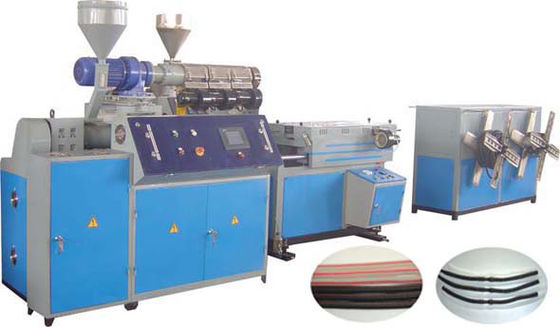

PE/PP/PVC Single Wall Corrugated Pipe Extrusion Line
PE/PP/PVC Single Wall Corrugated Pipe Extrusion Line mainly contains Extruder, Corrugated Forming Machine, Mold Blocks, Cooling Equipment, Counting Machine and Winding Machine. It can continuously produce many kinds of diameter single wall corrugated pipe.
Extruder: It has high speed high efficiency screw, hard gear surface, FUJI invertor. This structure assures the material evenly heating, good plasticization and the extruding speed and efficiency.

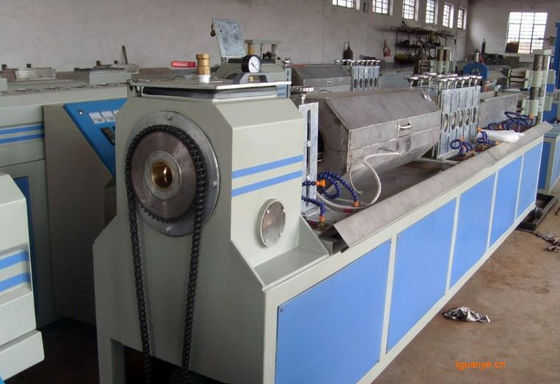

Corrugator: Close structure. Mold blocks Through the gear transmission, Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures High speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.
Mold block: The design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable
Winging machine: Moment motor, single/double station winder.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|
Winding Type |
Automatic/Manual |
||

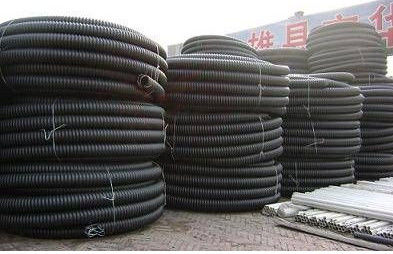

Applications:
Main used to convey the middle pressure or corrosive gas and liquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application , also it can be used in irrigation garden and lawn.
Competitive Advantage:
1. We have own research and development equipment, so our product prices are very competitive
2. Our high quality but low prices product have gained market and public praise from domestic and
overseas clients
3. We have very good and comprehensive after-sales service
