Product Details:
|
Condition: | New | Screw Design: | Double-screw |
---|---|---|---|
Brand Name: | AORUI | Certification: | CE/ISO9001 |
Automatic Grade: | Automatic | Place Of Origin: | Shandong, China (Mainland) |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Place Of Origin: | Shandong , China |
High Light: | Wood Plastic Extruder,Wood Plastic Composite Extruder |

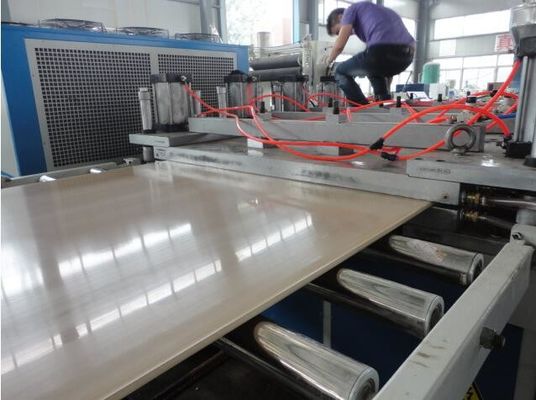

WPC Foamed Board Production Line , 1-30mm Thickness WPC Foamed Board Extrusion Machine For Decoration
Quick detail:
1.Using special designed screw and barrel for extruder.
2.Extruder stand-alone or two mixed directly extrusion,second extrusion after granules, save power and space.
3.With high yield,stable extrusion pressure.
4.Screw design shear force is small,easy to cut teh wood fiber material.
5.Screw and barrel using inlay and spray corrosion alloy, greatly extend the service life.
Description:
1. This production line adopts our unique wood and plastic technology and formula. It can extrude wood-plastic plates with PE/PP + wood powder. The WPC products are widely used in up-market car interior decoration, decoration board, advertising board, base material and decoration materials foe hotels, restaurants and entertainment venues.
2. This production line mainly composed of conical twin-screw extruder, die head, three-roller calendering machine, haul-off machine, cutting machine, material reversal stacker, etc. The three rollers adopts polishing roller or embossing roller according to the customer's requirements, and can be adjusted seperately with speed frequency regulation. Besides, they are equipped with roller temperture controller. The production line also adopts edge-cutting device. According to the different width and thickness of products, we have three models of conical twin-screw extruder: SJMS-65/132, SJMS-80-156, SJMS-92/188.
3. Feeder→ Conical Twin-screw Extruder → Mould →Calibration Table → Haul-off → Cutter → Stacker
(Note: Other Auxiliary Machine, such as crusher, mixer, etc. will be provided according to client's requirements)
4.These machines have features:
A.even plastication and agglomeration,
B.reliable quality,
C.wide application range,
D.long servicing life and direct conversion of powder into plastic products.
E.Equipped with our company's different mould tools down stream equipment, they can directly produce plastic products like pipers, rods, plates and profiles.
Applications:
1 . Transportation: such as steamship, aeroplane, carriage, traine compartment, roof shed, case core layer, inner
upholster, etc.
2 . Architecture: such as building wall board, decoration board, housing, office, public building interlayer, commercial
decoration shelf, non-dust room board, ceiling plate, etc.
3 . Production scope: thickness 3-30mm, width 1220mm
Specifications:
Model |
SJSZ80/156,SJSZ92/188 |
usage |
Decorative, |
raw material |
recycled PVC,wood powder, additive material,etc |
product size |
width:1220mm,thickness:5-30mm,length:2440mm |
Extruder feature |
Special designed extruder |
wood powder ( wood fiber) |
high volume of addition up to 50~75 percent |
Plastic proceed |
PVC,wood plastic composite |
Auxiliary machine |
Laminating machine,transferring machine, |
Product type |
Building Template,furniture board,kitchen board,bathroom board, |
Competitive Advantage:
1 . good after-service
2 . spare parts are free
3 . international certification standard.
4 . our engineer help and teach customer to test the machine.
