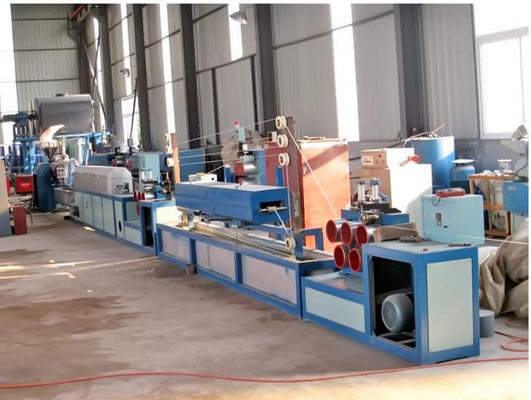

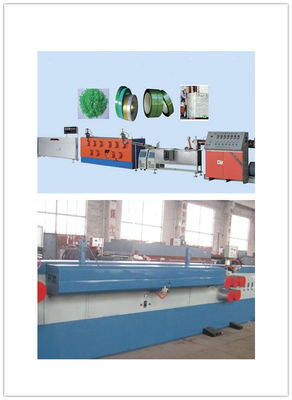

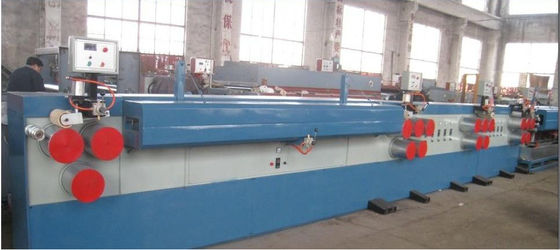

PP / PET Strap Making Machine Carton Box Packing Strap Machine

PP / PET Strapping Band Machine , Carton Box Packing Strap Machine

QUICK DETAIL :

1.Single screw or twin screw technique for option depending on the requirement.

2.100% recycled flakes can be used for production.

3. Even plasticization and stable extrusion with PC automatic control for the full line.

4. The fiflter of double columns with four working positions can get rid of impurity effective.

5. Single strap or double strap for option.

 Description:

The features of line are as follows: screw with compression ratio especially for PP/PET, gradually changing

diameter and deeper thread groove at the melting part; gearbox with hardened gears; die can be precisely

adjusted to ensure stable production and smooth surface of straps; stainless steel cooling trough with four

thermo treatment processes displaces the traditional one; haul off rollers with bigger size ensure the quality

of products; new rolling technology overcomes the shortcomings of traditional rolling machine like high

gradient and bending delection; laser embossing roller makes clear and even patterns.

PET packing strap is widely used, replaced for steel strap for packing application internationally, because

of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant,

non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making,

tobacco, agriculture, election, etc.


Characteristic of our PET packing strap machine:


1. The raw material treatment is by our CSG serious dehumidify and dryness system, it ensures the

humidity in raw material less than 80PPM.


2. Closed circulation feeding system prevent the material from exposure on air to keep the dryness of raw

material.


3. The screw is specially designed for PET application, it consists of separate and mixing part to keep the

even plastication, also by fixed material feeding system, the extrusion is stable, which ensures the good

dimension of PET strap.


4. The machine can produce 1/2/4 strap at the same time.


5. The mould is specially designed, equipped with two-stage filter.


6. Constant temperature heating device provide even cooling environment for PET strap to raise the tensile

strength performance.


7. Anneal treatment for finished PET strap to remove the part remaining stress to keep good shape

. The winder is double disk type with easy operation and coil changing.

Applications:

Specifications:

Competitive Advantage:

1, The whole line arrangement is reasonable, easy to operate .

2, The whole production line adjusted by frequency converter, to save energy .

3, PC special screw design, high output, is quite smooth .

4, Unique material embryo and sink cooling, angle suitable, embryo without deformation .

5, Using belt conveyor, the embryo  cooling out from the tank is quite stable .
