37KW Plastic Strapping Band Machine , PET strap banding machine

37KW Plastic Strapping Band Machine , PET strap banding machine

Quick detail:

1. 100%PET recycle material or mixed with raw material


2. Crystal and dehumidify drying system


3. Single screw or parallel double screw extruder


4. The filter of double columns with four working positions can get rid of impurity effectively


5. The dosing pump ensures continuous and stable production 6. Extruding one strap or double straps


7. Breaking strength>10000N


8. Single or double strap extrusion


9. Application: PET straps for cotton bales, for Can Package, for Paper Industry, for strapping Steel Coils,

for Clay Building Bricks, for Aluminum Ingots, for Fibre Bales, etc.


10. PLC control system

Description:

plastic material : PET

screw design : single screw

power :37KW

voltage: 380V/220V

weight: 5T

payment term : T/T

certification: CE UL CSA

Output:50-100kg/h

Straps :1-6straps

After-sales Service Provided: Engineers available to service machinery overseas

mould: change molds to produce different pipe products.

Minimum order: one set

certification: CE,CSA,UL,ISO9001

port: Qingdao port

voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.

Process type: extruding machine

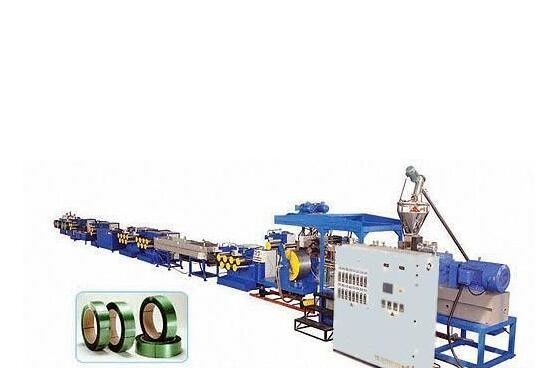

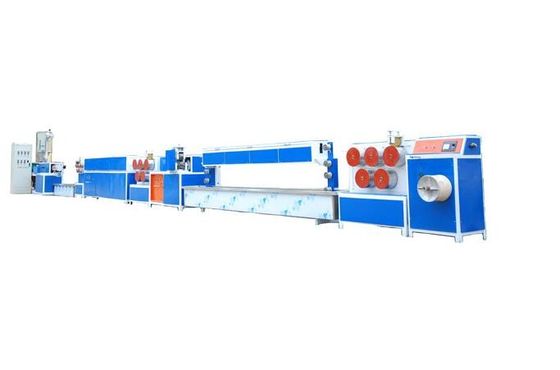

PET Strapping band Production Line

1--The raw material will be dried by the dehumidifier, and the below 40 dew point make the material

humidity less than 40PPM and condensation polymerization;


2--The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order

to made perfect effect of drying;


3--Special designed extruder screw for PET production, bear the better performance of material separating

and mixing. Automatic material feeding provide the smooth environment for the PET strap production.


4--Special designed extrusion die & mould; And the improved screen changer realize non-stop screen

changing, and without material leakage;


5--Water tank cooling the PET strap band. The steady water temperature enhance of the molecular tension

strength;


6--Heating cabinet is used for thermal annealing, relief the band distortion after long-time storage;

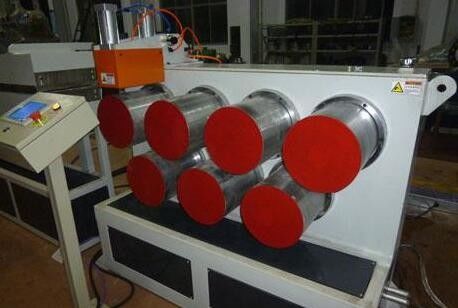

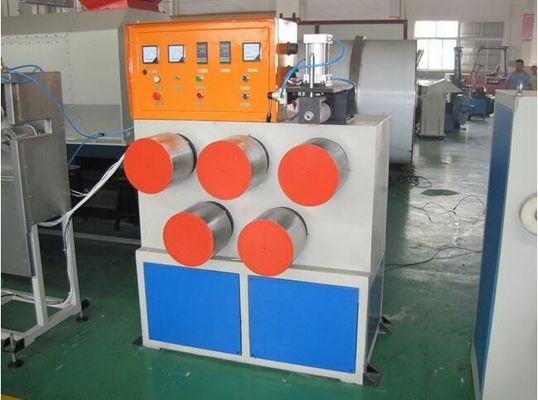

7--Dual-station automatic winder, easy operation; We provide our worldwide customer the turn-key project.

We will assist our customer from the installation to the final production of this line. PET strap machine, PET

strap machinery, PET strap plant, PET strap production line, PET strap line, PET strap band making

machine, PET strap making machine, plastic machinery, PET strap production line, PET strap extrusion

line, extruder, plastic extruder, plastic extruders, plastic machine


Technological parameter:

Competitive Advantage:

1.100%recycle material


2.strong vacuum system to dispense with dehumidify and dry


3.the recycle material consumption is low
